Double-Sided Coated Clear PET Film with Light Transmittance >90% and Heat Shrinkage MD 1.0% TD 0.4% for Precision Printing
Double-Sided Coated Clear PET Film with Light Transmittance >90% and Heat Shrinkage MD 1.0% TD 0.4% for Precision Printing
Double-Sided Coated Clear PET Film with Light Transmittance >90% and Heat Shrinkage MD 1.0% TD 0.4% for Precision Printing
Double-Sided Coated Clear PET Film with Light Transmittance >90% and Heat Shrinkage MD 1.0% TD 0.4% for Precision Printing
Double-Sided Coated Clear PET Film with Light Transmittance >90% and Heat Shrinkage MD 1.0% TD 0.4% for Precision Printing
Double-Sided Coated Clear PET Film with Light Transmittance >90% and Heat Shrinkage MD 1.0% TD 0.4% for Precision Printing
Specifications
Payment Terms :
T/T,Western Union
Supply Ability :
500000 square meter
Model Number :
H10
Heat shrinkage MD :
1.0 %
MOQ :
1 square meter
Delivery Time :
7 working days
Haze :
< 1.2%
Price :
USD 0.166~1.316
Film Thickness :
50 ~ 250 μm
Packaging Details :
Tray / Carton
Certification :
ISO 13485, ISO 9001, IATF 16949, FCC, SGS
Tensile Strength MD :
160 Mpa
Place of Origin :
Shenzhen, China
Light Transmittance :
>90%
Brand Name :
XH
Tensile Strength TD :
185 Mpa
Description

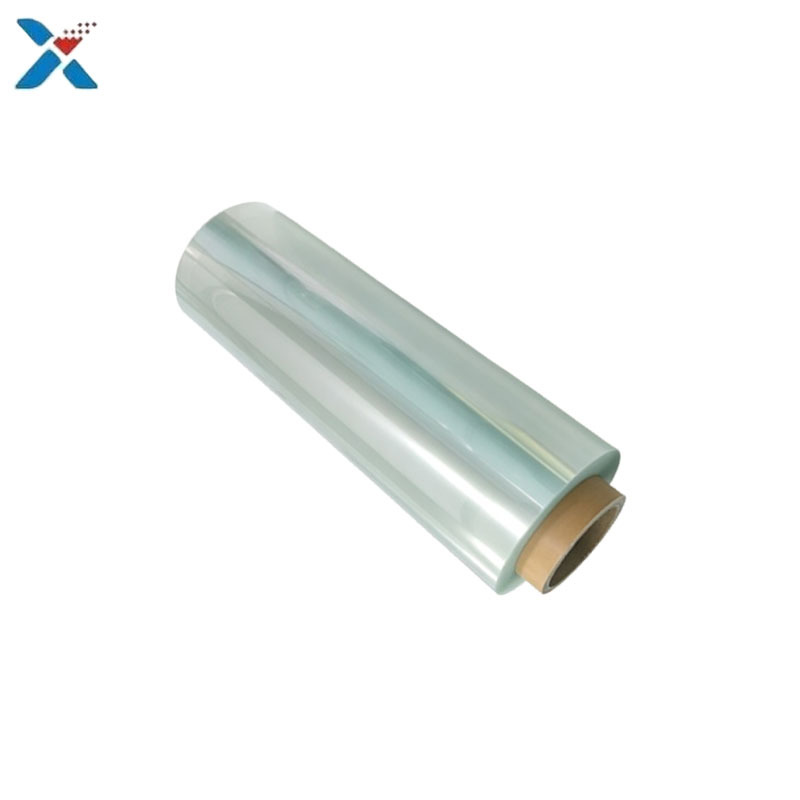

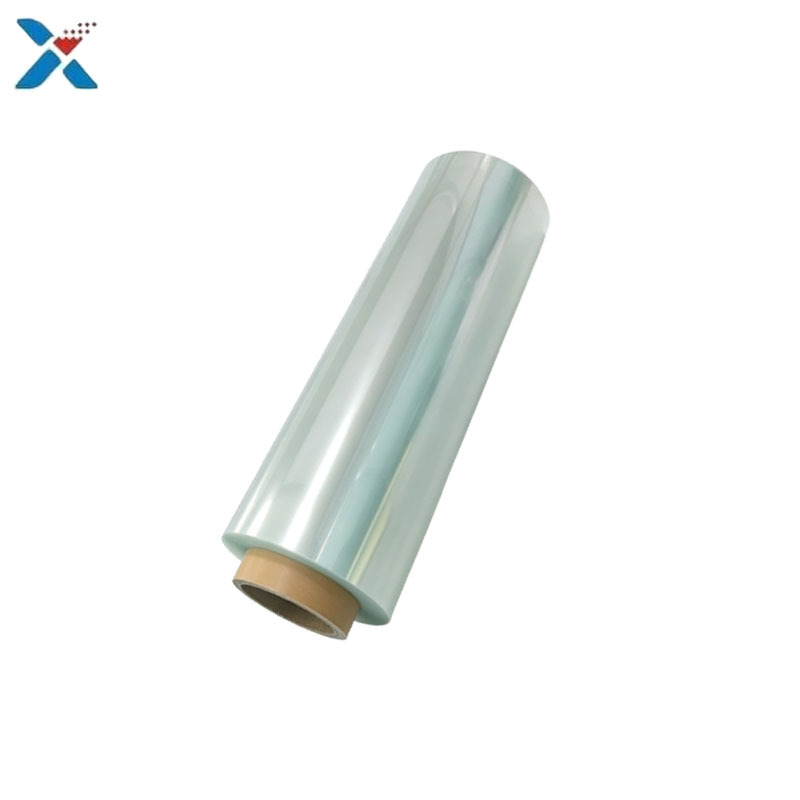

H10 Series Clear Double-Sided Coated PET Film – Engineered for Precision Printing
Clear Double-Sided Coated PET Film for Printing & Graphic Overlays (H10 Series)

Searching for high-performance coated PET film that solves ink peeling and registration errors? The H10 Series clear double-sided coated PET film (50~250μm) is engineered for precision membrane switch panels, control overlays, and industrial nameplates. Featuring a specialized coating on both sides, this printable PET film delivers exceptional performance for demanding industrial applications.

Key Performance Advantages for Printers
  • Unmatched Ink Adhesion (100/100 Pass): The double-sided coating ensures permanent chemical bonding with both UV ink and conventional solvent inks. Eliminates ink flaking, peeling, or scratch-off during die-cutting and tactile dome embossing.
  • Superior Optical Clarity & Low Rainbow Effect: With light transmittance >90% and haze <1.2%, this high-transparency coated PET film delivers crystal-clear visual quality. Anti-rainbow technology prevents visual interference under LED/display lighting.
  • Exceptional Dimensional Stability: Low heat shrinkage (MD 1.0%, TD 0.4%) under high-temperature curing ovens prevents color misregistration during multi-pass printing.
  • Dual Surface Protection: Standard clear PE protective masking prevents scratches, dust, and static contamination during slitting and processing.
Key Specifications
Film Thickness: 50~250μm
Adhesion Test: 100/100 Pass for UV ink & solvent ink
Light Transmittance: > 90%
Heat Shrinkage: MD 1.0%, TD 0.4%

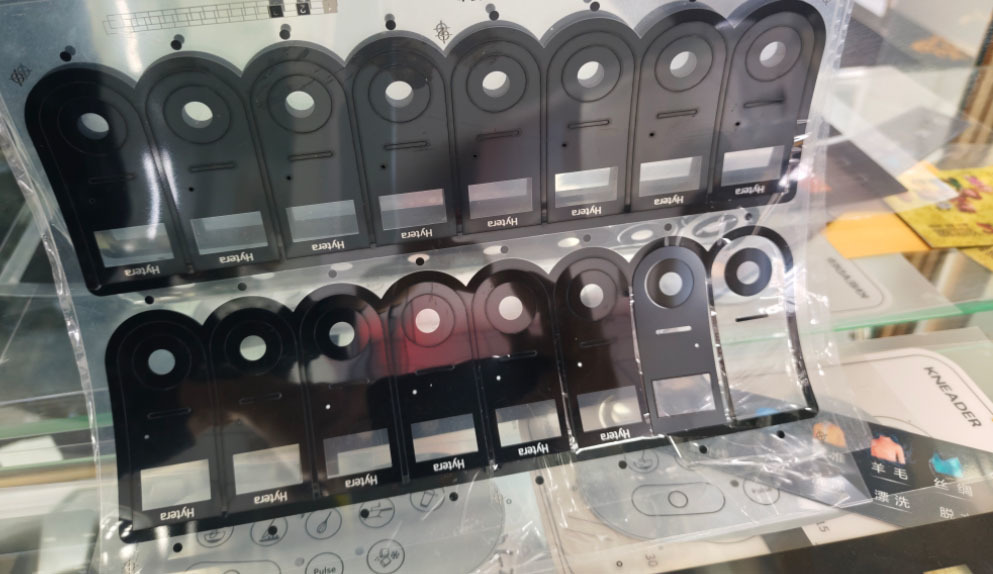

Application: Ideal for membrane switch keypads, appliance panels, remote control overlays, and decorative nameplates.
Technical Performance & Printing Value

Every parameter of the H10 Series is engineered to eliminate real-world production defects, reduce scrap rates, and maximize printing efficiency.

Technical Parameter Standard Value Why It is Superior What Problem It Solves
Light Transmittance > 90% Optical-grade transparency ensures crystal-clear light transmission. Prevents dull/muddy overlay graphics, ensuring vibrant backlighting for LED indicators and display windows.
Haze < 1.2% Ultra-low scattering haze delivers pure, sharp visual clarity. Eliminates cloudy/blurry display windows, providing razor-sharp readability for LCD/OLED screens beneath the film.
Cross-Cutting Adhesion 100/100 Pass
(UV & Solvent Ink)		 High surface energy double-sided coating creates permanent chemical bonding with inks. Solves ink peeling and flaking during die-cutting, embossing, or long-term keypad flexing. Eliminates the need for corona treatment.
Heat Shrinkage (MD/TD) MD 1.0%
TD 0.4%		 Industry-leading dimensional stability under high-temperature curing cycles. Solves multi-color misregistration and sheet warping after drying ovens, drastically reducing material waste.
Tensile Strength (MD/TD) 160 / 185 MPa Balanced biaxial mechanical strength with high tensile resistance. Prevents film tearing or stretching during high-speed roll-to-roll screen printing and heavy stamping/die-cutting.
Elongation at Break MD 154% / TD 110% High ductility allows deep tactile dome forming without micro-cracking. Prevents cracking at switch actuation points, ensuring millions of button clicks without mechanical breakdown.
Surface Protection Clear PE Protective Film
(Both Sides)		 Premium clear PE film protects both coated surfaces until final assembly. Eliminates scratches, dust contamination, and static buildup during slitting, transit, and handling.
Frequently Asked Questions
Why choose this printable PET film over standard polyester films?
A: Standard PET film causes ink flaking and color shift. Our clear double-sided coated PET film increases surface energy for perfect UV ink adhesion and prevents screen misregistration.
Is sample testing available for membrane switch printers?
A: Yes! Request a free sample roll of our coated PET film to test your UV ink adhesion and thermal stability today.

Double-Sided Coated Clear PET Film with Light Transmittance >90% and Heat Shrinkage MD 1.0% TD 0.4% for Precision Printing
