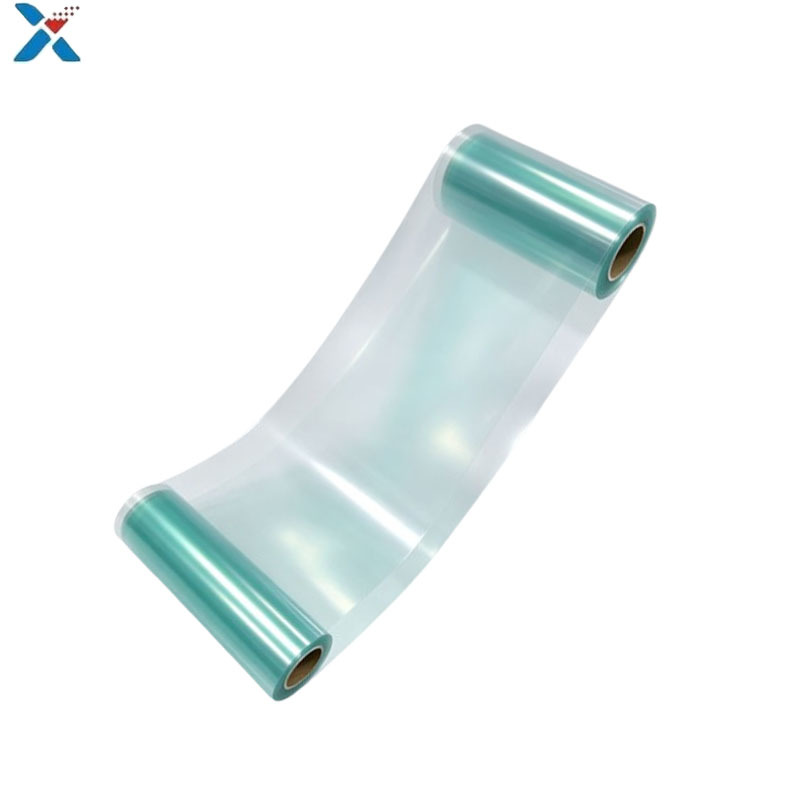

HT-15 Series Double-Side TPU-Coated PET Film with 92% Light Transmittance and Cross-Cutting Test 100/100 Pass for Premium Nameplates
HT-15 Series Double-Side TPU-Coated PET Film with 92% Light Transmittance and Cross-Cutting Test 100/100 Pass for Premium Nameplates
HT-15 Series Double-Side TPU-Coated PET Film with 92% Light Transmittance and Cross-Cutting Test 100/100 Pass for Premium Nameplates
HT-15 Series Double-Side TPU-Coated PET Film with 92% Light Transmittance and Cross-Cutting Test 100/100 Pass for Premium Nameplates
HT-15 Series Double-Side TPU-Coated PET Film with 92% Light Transmittance and Cross-Cutting Test 100/100 Pass for Premium Nameplates
HT-15 Series Double-Side TPU-Coated PET Film with 92% Light Transmittance and Cross-Cutting Test 100/100 Pass for Premium Nameplates
Specifications
Payment Terms :
T/T,Western Union
Recyclability :
Recyclable
Supply Ability :
500000 square meter
Mechanical Strengt :
High tensile strength
Model Number :
HT15
Tensile Properties :
Well
Packaging Details :
Tray / Carton
MOQ :
1 square meter
Delivery Time :
7 working days
Flameretardant :
Optional flame retardant treatment available
Price :
USD 0.166~1.316
Optical Appearance :
Crystal Clear Surface
Certification :
ISO 13485, ISO 9001, IATF 16949, FCC, SGS
Feature :
High Transparency&Good Flexibility
Place of Origin :
Shenzhen, China
Film Structure :
Single Layer Polyester Film
Brand Name :
XH
Heat Shrinkage Td :
0.4 %
Description
Double-Side TPU-Coated PET Film for Premium Nameplates, Panels & Membrane Switches
HT-15 Series: Double-Side TPU-Coated PET Film for Premium Nameplates, Panels & Membrane Switches

For nameplate producers, panel fabricators, and membrane switch makers, print adhesion, optical clarity, and dimensional stability are make-or-break factors. The HT-15 series double-side TPU-coated PET film is purpose-built to address these demands - combining a high-quality PET base with functional coatings on both sides to deliver consistent, high-yield production.
Why HT-15 Stands Out for Nameplate & Panel Applications
1. Superior Print Adhesion - Compatible with UV & Conventional Inks
The dual TPU coatings dramatically improve ink anchorage. Whether you use UV-curable inks or standard solvent-based inks, the HT-15 film ensures outstanding wettability and interlayer bonding.
  • Cross-Cutting Test: 100/100 Pass (JIS K5600) - no flaking, no peeling
This means sharp text, solid fills, and fine halftones stay intact through die-cutting, bending, and end-use handling - directly reducing reject rates in your nameplate printing line.
2. Exceptional Optical Performance - Low Rainbow, High Clarity
Visual appeal is critical for brand-name panels and backlit nameplates.
  • Light Transmittance: ≥92% (JIS K7136)
  • Haze: <1.3% (JIS K7136)
  • Rainbow stripes: Minimized to near-invisible levels, eliminating unwanted interference patterns that downgrade premium finishes
Your designs appear crisp, vivid, and professionally flawless.
3. Reliable Mechanical & Thermal Stability - Precision Through Processing
Property Unit Typical Value Standard Benefit for Nameplate Makers
Heat Shrinkage (MD/TD) % 1.0 / 0.0 JIS C2318 Minimizes register shift during drying or lamination
Tensile Strength (MD/TD) MPa 163 / 180 ASTM D882 Withstands punching, embossing, and contour cutting
Elongation at Break (MD/TD) % 154 / 110 ASTM D882 Offers balanced toughness - less brittle edge chipping
These properties ensure that intricate nameplate outlines and small-diameter holes are produced cleanly and repeatedly.
4. High Cleanliness - Fewer Surface Defects
Manufactured under strict cleanliness protocols, the HT-15 film minimizes embedded impurities, pinholes, and surface gels. The result: fewer print white-spots, less scrap, and higher first-pass yield - a tangible cost saver for high-volume nameplate workshops.
Construction & Specification
Layer structure (top to bottom):
  • Green PE protective film (scratch protection + visual identification)
  • PET substrate with double-side TPU coating (functional core)
  • PE protective film (backside protection)
Standard Dimensions:
  • Thickness: 100 / 125 / 188 / 250 μm (125μm is the most popular for nameplates)
  • Width: 1020 mm
  • Length: 200 m/roll
Custom thicknesses and widths available upon request.
Core Applications - Directly Aligned with Your Business
  • High-end nameplates & rating plates - home appliances, industrial equipment, automotive interiors
  • Membrane switch panels - remote controls, medical devices, industrial HMI
  • Backlit or translucent decorative panels - where clarity and uniform light diffusion matter
  • Logo badges and control panel overlays - requiring scratch resistance and long-term legend durability
Important Technical Note
All data above are typical test values and are not guaranteed specifications. We strongly recommend that nameplate manufacturers conduct full process trials - including ink selection, curing profiles, and die-cutting parameters - before committing to mass production. Our technical team is ready to assist with tailored recommendations.
Ready to Upgrade Your Nameplate Quality?
Choose HT-15 PET film for sharper prints, higher yields, and more satisfied end-customers.
