Specifications
Brand Name :
Riselaser
Model Number :
QCW-300W-DB
Certification :
ISO, CE
Place of Origin :
Shenzhen, China
laser type :
fiber laser
Machine Name :
Crane Type Mould Laser Welding Machine
Maximum laser power :
150W,300W,1500W
laser wavelength :
1080±10nm
laser frequency :
1-30Hz,1-30HZ,1-25HZ
pulse width :
1-20Ms,1-20Ms,1-60MS
Spot adjustment range :
0.2-3mm , 0.2-5mm , 0.2-5mm
targeting and positioning :
Microscope (optional camera system)
Chiller cooling power :
0.6P , 0.6P , CW1500
rating :
2.5KW , 3KW , 7KW
electricity demand :
220V±5V , 50Hz/60A
Three-dimensional load-bearing workbench load-bearing :
50kg

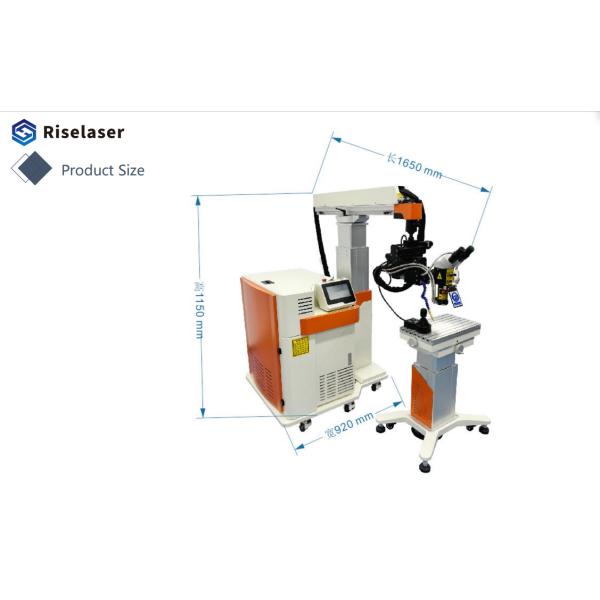

External dimensions/ net weight :
hosts：1650*920*1150mm ，Three-dimensional load-bearing workbench：600*450*600mm
Description

Introduction

  • The Crane Type Mould Laser Welding Machine 2025 is a high-precision welding solution designed for a wide range of applications. This machine offers the flexibility of choosing between fiber laser and QCW laser, ensuring stable and reliable beams for precise welding. Equipped with a dedicated chiller, it meets long-term welding requirements and provides better stability. The three-dimensional load-bearing workbench base with electric lifting, precision ball screws, and high-precision straight guide rails ensures smooth movement, precise positioning, and a load-bearing capacity of 50 kg.

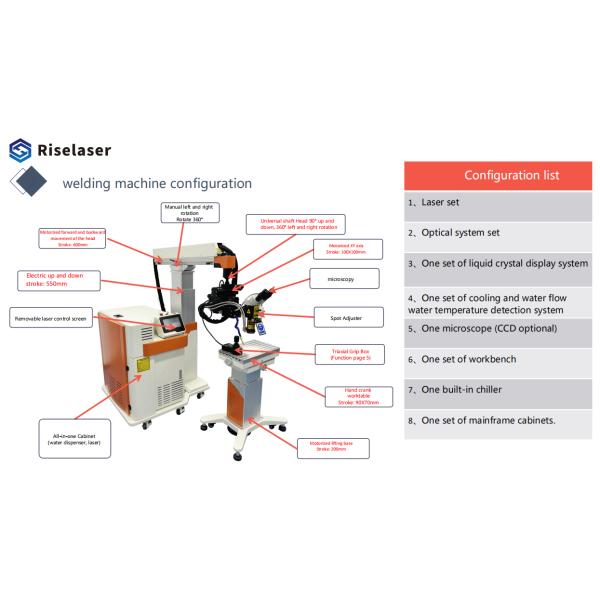

welding machine configuration

300W Crane Type Mould Laser Welding Machine


  • Laser Source: MAX laser source

  • Optical Systems: High-precision optical systems for accurate laser delivery
  • Display Systems: LCD display systems for easy operation and monitoring
  • Cooling Systems: Built-in chillers with water flow and temperature detection systems
  • Microscope: One microscope (CCD optional) for detailed observation
  • Workbenches: Precision workbenches with electric and manual movement options
  • Host Cabinets: Integrated cabinet for water machine and laser source
  • Control Screen: Movable laser control screen for convenient operation



Equipment Configuration


300W Crane Type Mould Laser Welding Machine

  • Electric Lifting Base: Travel distance of 200mm
  • Spot Adjuster: Fine-tune the laser spot for precision welding
  • Electric Movement: Stroke of 600mm for extended reach
  • Manual Rotation: 360° rotation for flexible positioning
  • Three-axis Handle Box: Easy control of the machine head movement
  • Microscope: Manual workbench with a stroke of 90X70mm
  • Universal Joint: Up and down movement of 90°, rotation of 360°
  • Electric XY Axis: Travel of 100X100mm for precise positioning
  • Electric Lift: Stroke of 550mm for vertical movement


Application
The Crane Type Mould Laser Welding Machine 2025 is suitable for a wide range of applications, including:

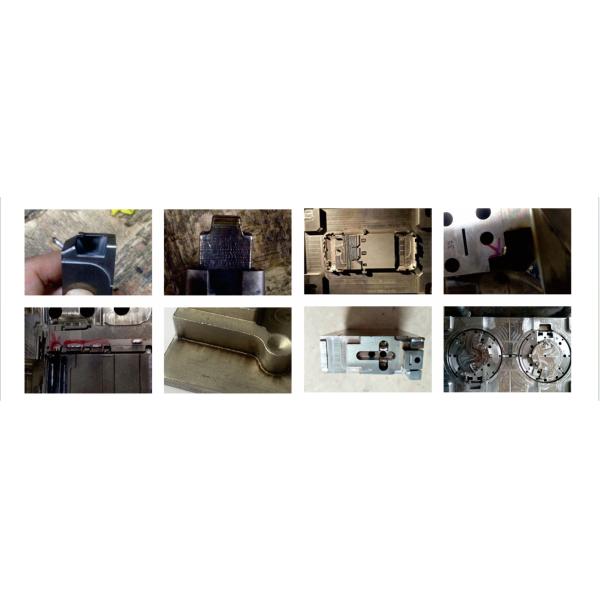

  • Large Mold Repair Welding: Revitalize your substantial moulds efficiently. The Crane Type 2025 expertly repairs cracks, wear, and damage on large injection or die-casting moulds. Its precision minimizes heat distortion, preserving mold integrity and extending lifespan, thus cutting downtime and costs. The integrated crane simplifies handling heavy components, ensuring safe and accurate repairs for continued peak performance.
  • Mobile Phone Communications: In mobile tech manufacturing, this machine excels at welding minute components like frames, antennas, and connectors. Its low heat input safeguards delicate electronics, while high accuracy ensures robust, reliable connections essential for device performance. Achieve flawless assembly for the demanding miniaturization needs of modern communication devices.
  • Jewelry Crafts: Craft exquisite jewelry with unparalleled precision. The laser welder is perfect for repairing delicate chains, setting prongs, and assembling intricate designs in gold, silver, and platinum. It allows micro-welding near heat-sensitive gemstones without damage, producing clean, strong welds that require minimal finishing, enhancing artistry and quality.
  • Electronic Components: Ensure reliability in electronics manufacturing. This machine provides the precision for assembling sensitive items like sensors, connectors, and battery casings. The minimal heat-affected zone protects delicate circuitry, creating strong, hermetically sealed joints vital for product performance, longevity, and the integrity of microelectronic assemblies.
  • Clocks & Watches: For the intricate world of timepieces, precision is paramount. The Crane Type 2025 expertly welds small, detailed components within clock and watch movements, including springs, gears, and casings. Its micro-welding capability ensures the accuracy and durability required for these fine, high-value instruments.
  • Sensors: Achieve robust and reliable sensor construction for automotive, industrial, or medical applications. This machine precisely welds sensor housings and joins diverse materials common in sensor assemblies. This ensures hermetic seals, protecting sensitive internal elements from environmental factors and guaranteeing accurate, long-lasting performance.
  • Precision Machinery: Meet exacting standards in precision machinery. This laser welder is ideal for assembling critical parts like gears and shafts where high strength and minimal distortion are crucial. It enables the creation of complex assemblies with superior structural integrity and precise alignment for optimal operational performance.
  • Hardware: Boost the quality and durability of hardware products. The Crane Type 2025 welds various items, from architectural fittings to tools, delivering strong, aesthetically pleasing welds on materials like stainless steel and aluminum. This enhances both the functionality and appearance of your high-end hardware components.
  • Gas and Automobile Parts: Address the stringent demands of the automotive and gas industries. It adeptly welds components like exhaust systems, chassis parts, and tailor-welded blanks for lighter, stronger vehicles. For gas applications, it ensures the integrity of pipelines and pressure vessels with high-strength, leak-proof welds.
