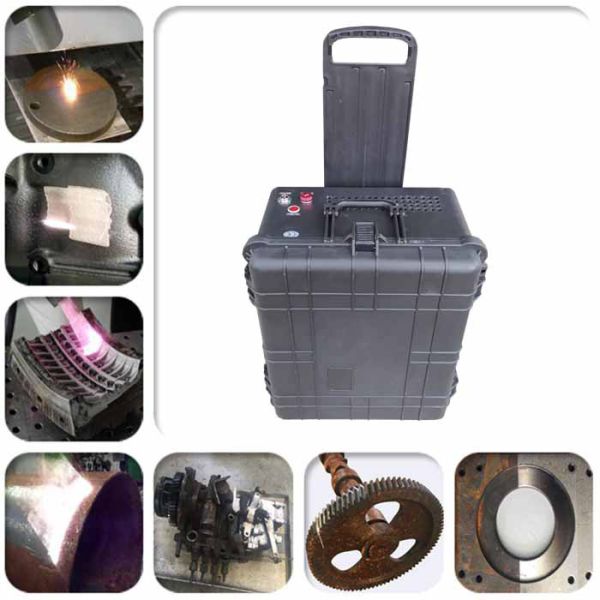

Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed
Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed
Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed
Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed
Specifications
Brand Name :
Riselaser
Model Number :
RL-C50
Certification :
CE
Place of Origin :
SHENZHEN
MOQ :
1
Price :
negotiation
Supply Ability :
2000units per year
Delivery Time :
5-9 working days
Packaging Details :
wooden case
Product name :
Fiber Laser Cleaning System
Laser power :
50w
Source :
Fiber laser
certification :
CE
type :
Fully Enclosed
feature :
Stable Light Path
Description

Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed

RL-C50 suitcase type fiber Laser cleaning machine system is one of the advanced products developed by Riselaser Technology Co., Ltd. It uses the laser’s high energy advantage working on the surface of the work piece, to clean the rust, paint, oil or glue.

Video:

Technical Parameters:

Model RL-C50
Laser source Fiber laser
Laser Power 50W
Fiber Cable Length 2 Meters
Laser Wavelength 1060nm
Pulse Energy 1 mJ
Pulse frequency 50-100KHz
Work speed 0-7000mm/s
Cooling Air cooling
Dimension 600*300*650 mm
Weight 20Kg
Beam width 10-70mm
Optional Manual
Temperature 5-40 ℃


The problems of Traditional cleaning industry:

Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed

Mechanical Friction Cleaning:

high cleanliness, but

damage base material

Chemical Etching Cleaning:

unstressed cleaning,

heavier pollution

Fluid solid jet cleaning:

high flexibility,

but high cost

complex treatment

High frequency ultrasonic cleaning:

good cleaning effect, but limited size

Features of laser cleaning:

Laser cleaning——New technology,green and environmental:

Advantages:

Long-focus cleaning laser source has high surface roughness and high tolerance range of processing height on the workpiece, not only can be used in a stable industrial enviroment, more suitable for complex ourdoor fine cleaning; the use of special mode laser, both to ensure the high tolerance range of non-stable environment, but also efficient removal of rust stains with no hurt to base material.

Laser cleaning principle:

Fully enclosed external optical path system, combined with special mode of laser, the high-energy pulse laser collected in the surface of object,with the principles of plasma blasting,high energy pulse excitation and complex photochemical reactions, and by controlling the effective displacement of the laser beam to achieve cleaning. The whole process is controlled by the computer according to the program.

Application:

Mould Cleaning

Peeling or Coat Removing

Pretreatment before coating

Airospace parts cleaning

Clean oil stain,residue

Welding Pretreatment

Clean oxide,smeary

Restoration and preservation

Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed

Typical Application - Rust Removal:

Mainly used in metal rust.

 Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed


Typical Application——Degrease:

Mainly used in the mold cleaning and other industries. Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed

Typical Application——Paint Removal:

Mainly used for paint removal and coating stripping.

 Suitcase Type 50w Pulsed Fiber Laser Rust Removal Machine Fully Enclosed

FAQ

1. Q: What is the warranty of the suitcase laser rust removal machine?

A: 1 year.

2. Q: How about the quality?

A : This laser cleaning technology is from Germany.High quality, best price.

3. Q: How do i get technical support after purchasing?

A: Riselaser offer online service in English through Skype,WhatsApp,Wechat or Email etc. If need remote operation,we can use TeamViewer software.
