Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Machine
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Machine
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Machine
Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Machine
Specifications
Brand Name :
JANGLI
Model Number :
JL-250III
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 10000-100000 per one
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 sets per year
Delivery Time :
60days
Packaging Details :
vacuum wooden packing
Projects :
Softgel Capsules Production Line
Model :
JL-250III
Weight :
1500kg
Size :
2200x1000x2200mm
Power :
15kw
Running Speed :
0-8rpm
Description

Large Scale Big 10 Inch Pharmaceutical Soft Gel Capsule Manufacturing Equipment

Projects Parameters
Work Capacity
147,000 Caps/hour(8 Oval, 450~500mg, 5rpm)
Die Roller Size 150x250mm
Running Speed
0-8rpm
Power
15kw
Size
2200x1000x2200mm
Weight 1500kg
Plungers Number
20 24 28 Plungers
Plungers Size 4mm 6mm 8mm 12mm 14mm
Packing
Vacuum Wooden

Definition

Softgel gelatin capsules are one piece, hermetically sealed, soft gelatin shells containing a liquid, a suspension or a semisolid. Soft gelatin is mainly composed of gelatin, plasticizers, preservative, colouring and opacifying agents, flavoring agents and sugars. It is made by softgel encapsulation machine.

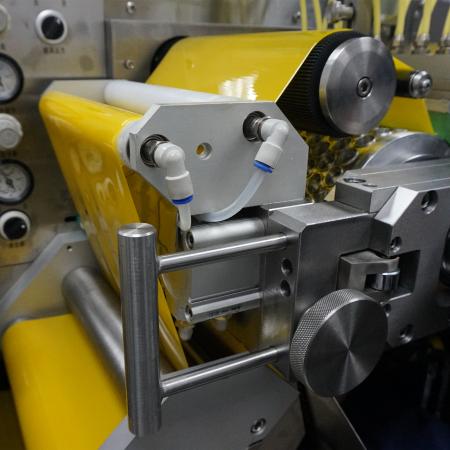

Main structure

Medicine Pump system:The medicine is pumped from hopper to the wedge. It is the heart of the softgel machine. It can be design with different plunger depend on your requirement. 34 plungers is what we can made before.

Die roll housing: softgel capsules form based on the die roll type. The number of pocket of die roll decide the final production capacity of machine. If you want get good product, you must choose high quality die roll.

Spreader Box and drum:It is made from brass material. It combined with drum will lead the gelatin liquid into gelatin ribbon. Drum is the biggest parts of machine. However, if you want get high quality gelatin ribbon, you need control the temperature of drum accurately and precisely.

The other equipment you needed for production.

Gelatin melter: for making gelatin liquid.

Medicine tank: For preparation of medicine or filling material.

Service tank: As transfer tank for encapsulation

Tumble dryer: for softgel capsules shaping, when it is produced from machine. Or use it to finally dry the capsules
