BPC-200 Automatic Air Jet Bottle Cleaning Machine with Positive-Pressure Air Jetting + Negative-Pressure Suction for 0–100 Bottles/min and Stainless Steel Construction
BPC-200 Automatic Air Jet Bottle Cleaning Machine with Positive-Pressure Air Jetting + Negative-Pressure Suction for 0–100 Bottles/min and Stainless Steel Construction
BPC-200 Automatic Air Jet Bottle Cleaning Machine with Positive-Pressure Air Jetting + Negative-Pressure Suction for 0–100 Bottles/min and Stainless Steel Construction
BPC-200 Automatic Air Jet Bottle Cleaning Machine with Positive-Pressure Air Jetting + Negative-Pressure Suction for 0–100 Bottles/min and Stainless Steel Construction
BPC-200 Automatic Air Jet Bottle Cleaning Machine with Positive-Pressure Air Jetting + Negative-Pressure Suction for 0–100 Bottles/min and Stainless Steel Construction
BPC-200 Automatic Air Jet Bottle Cleaning Machine with Positive-Pressure Air Jetting + Negative-Pressure Suction for 0–100 Bottles/min and Stainless Steel Construction
Specifications
MOQ :
1set
Delivery Time :
9 weeks
Cleaning Method :
Positive-Pressure Air Jetting + Negative-Pressure Suction
Price :
6000-12000 USD
Bottle Size :
Max. Diameter 80 mm; Max. Height 160 mm
Working Air Pressure :
≥0.5 MPa
Packaging Details :
wooden case
Model Number :
BPC-200
Payment Terms :
L/C,T/T
Capacity :
0–100 Bottles/min
Power Supply :
220 V / 50 Hz
Supply Ability :
100 per year
Material :
Stainless Steel
Certification :
CE
Place of Origin :
china
Brand Name :
shark
Description
BPC-200 Automatic Air Jet Bottle Cleaning Machine
Positive-Pressure Air Jetting + Negative-Pressure Suction for Rapid Bottle Cleaning
The BPC-200 Automatic Air Jet Bottle Cleaning Machine is designed for automatic internal cleaning of empty bottles before filling and packaging. It combines positive-pressure air jetting and negative-pressure suction to loosen and remove dust and loose particles from the bottle interior, achieving pharmaceutical-grade cleanliness within seconds.
BPC-200 Automatic Air Jet Bottle Cleaning Machine with Positive-Pressure Air Jetting + Negative-Pressure Suction for 0–100 Bottles/min and Stainless Steel Construction
Key Features
  • Rapid Internal Bottle Cleaning
    Positive-pressure air jetting loosens dust and loose particles inside the bottle, while negative-pressure suction assists in removing contaminants. The combined cleaning process is completed within seconds.
  • Automatic Bottle Handling
    Complete automated process: Bottle Infeed → Bottle Inversion → Air-Jet Cleaning → Bottle Discharge. Reduces manual handling and supports continuous production.
  • High Production Capacity
    Production capacity of 0–100 bottles/min. Actual operating speed depends on bottle size and production conditions.
  • Adjustable Cleaning System
    Bottle inversion structure and air-cleaning mechanism can be adjusted for different bottle dimensions and configurations.
  • Fixed-Nozzle Cleaning
    Fixed cleaning nozzles maintain consistent air-jet position with accurate bottle positioning.
BPC-200 Automatic Air Jet Bottle Cleaning Machine with Positive-Pressure Air Jetting + Negative-Pressure Suction for 0–100 Bottles/min and Stainless Steel Construction
  • Large-Capacity Hopper with Low-Level Alarm
    Reduces replenishment frequency. Low-level alarm alerts operator when bottle supply is running low.
  • PLC + Touchscreen Control
    PLC controls operating sequence while touchscreen HMI provides interface for operation, parameter setting and monitoring.
  • Hygienic Stainless-Steel Construction
    Stainless steel main body with non-toxic, chemically stable non-metallic bottle-contact components.
  • Safety and Air-Pressure Monitoring
    Air-pressure monitoring and safety functions maintain stable and reliable operation.
How the BPC-200 Works

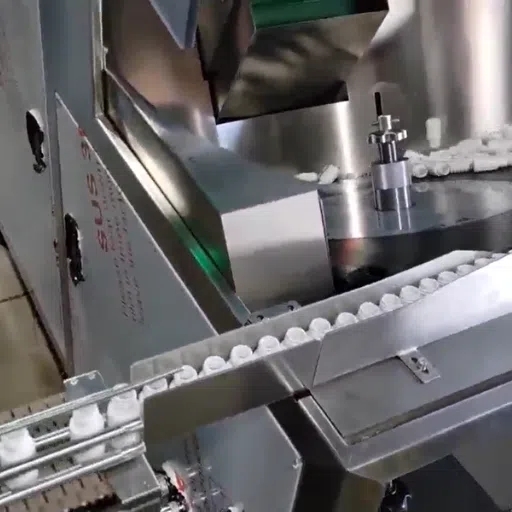

1. Bottle Infeed
Bottles are automatically conveyed into the machine and positioned for cleaning.
BPC-200 Automatic Air Jet Bottle Cleaning Machine with Positive-Pressure Air Jetting + Negative-Pressure Suction for 0–100 Bottles/min and Stainless Steel Construction
2. Bottle Inversion
The inversion mechanism turns and positions the bottles according to cleaning requirements.

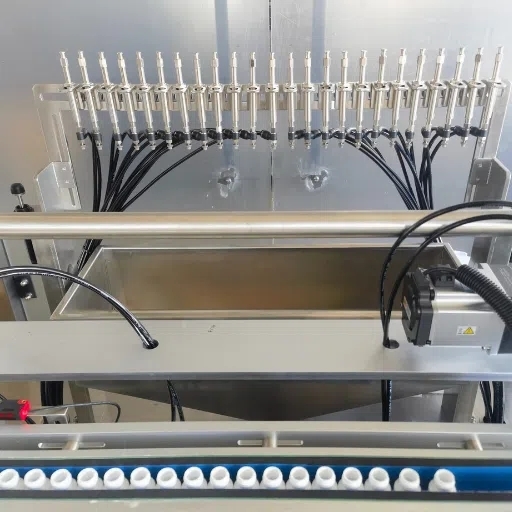

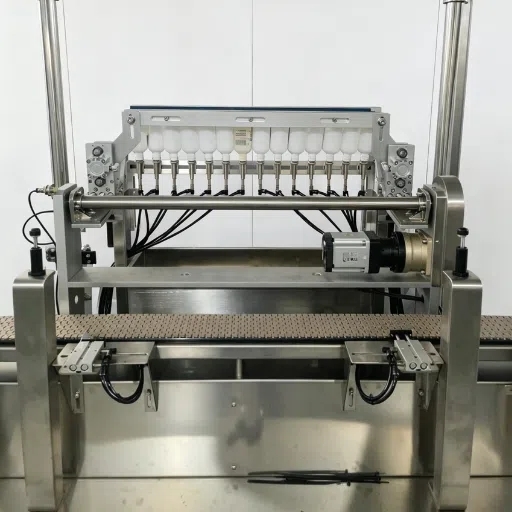

3. Air-Jet Cleaning
Compressed air (≥0.5 MPa) is delivered through fixed nozzles into bottles. Air jet loosens dust while negative-pressure suction removes contaminants.
4. Bottle Discharge
After cleaning, bottles are automatically transferred to discharge conveyor for next production process.
Bottle Compatibility
Compatible Bottle Materials
  • PET
  • HDPE
  • PVC (subject to compatibility evaluation)
  • PP
Compatible Bottle Shapes
  • Standard round bottles
  • Custom-shaped bottles
  • Wide-mouth bottles
Bottle Size Range
  • Maximum bottle diameter: 80 mm
  • Maximum bottle height: 160 mm
For new bottle formats, provide bottle drawings, photos or samples for compatibility confirmation.
Technical Specifications
ItemTechnical Parameter
ModelBPC-200
Machine TypeAutomatic Air Jet Bottle Cleaning Machine
Production Capacity0–100 bottles/min
Total Power0.5 kW
Power Supply220 V / 50 Hz
Bottle SpecificationMax. diameter: 80 mm; Max. height: 160 mm
Working Air Pressure≥0.5 MPa
Machine Dimensions (L × W × H)2200 × 900 × 2000 mm
Net Weight200 kg
Conveyor Installation Height850 ± 50 mm
Actual operating speed depends on bottle size and production conditions.
Applications
  • Pharmaceutical
  • Cosmetics
  • Food & Beverage
  • Oil & Lubricant
  • Chemical
  • Light Industry
  • Electronics
Integration with Automatic Packaging Lines
Typical production sequence: Bottle Unscrambler → BPC-200 → Filling Machine → Capping Machine → Labeling Machine
Conveyor installation height: 850 ± 50 mm for compatibility with existing or new packaging-line equipment.
Please contact us for a quotation, layout drawing or bottle-compatibility testing.
