Shenghua 21/35kV Aluminum XLPE Power Cable for Industrial Use
Shenghua 21/35kV Aluminum XLPE Power Cable for Industrial Use
Shenghua 21/35kV Aluminum XLPE Power Cable for Industrial Use
Shenghua 21/35kV Aluminum XLPE Power Cable for Industrial Use
Specifications
Brand Name :
SHANCABLE
Model Number :
YJLV 21-35KV
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Conductor :
Compact stranded Aluminum conductor, Cl.2 as per IEC 60228
Insulation :
XLPE(cross-linked polyethylene) rated at 90 OC
Sample :
Free
Insulation Color :
Red,Yellow,Blue
Sheath :
PVC or FR-PVC type ST2 to IEC 60502, black
Screen :
Copper tape
Corporation :
shenghua group
Brand :
Sh Cable
Description

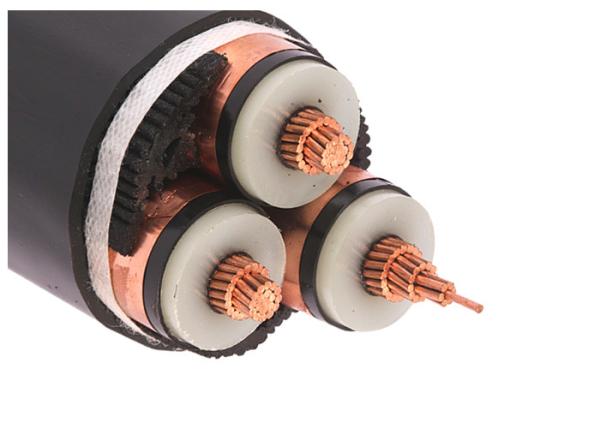

Three Core Aluminum Conductor XLPE Insulated Power Cable Medium Voltage 21/35kV

Shenghua 21/35kV Aluminum XLPE Cable: The Geologically-Immune Power Network​​

Shenghua redefines cable resilience with its ​​triple-core aluminum-conductor XLPE cables​​, engineered to conquer seismic shifts, coastal erosion, and mining stress. Trusted in 60+ disaster-prone regions and compliant with IEC 60502-1, KEMA, and GB/T 12706, these cables merge ​​40% cost-efficiency​​ vs. copper with ​​50-year lifespans​​ in corrosive zones.

​​Ⅰ. Material Science: Engineered for Geological Warfare​​

  1. ​​Aluminum Conductor Superiority​​

    • ​​Cost-Saving Durability​​: Compact stranded aluminum (IEC 60228 Class 2) slashes installation costs by 40% vs. copper while achieving ultra-low resistance (​​0.0778Ω/km for 3×400mm²​​) – critical for long-distance mining grids

    • ​​Thermal Immunity​​: Nano-modified XLPE insulation withstands ​​90°C continuous load​​, ​​250°C/5s short-circuit spikes​​, and UV/ozone degradation, extending service life in deserts and tropics

  2. ​​Triple-Shielded Defense Architecture​​

    • ​​EMI Neutralization​​: Copper tape screen blocks electromagnetic interference from substations, ensuring signal integrity for IoT grid sensors

    • ​​Sheath Armor​​: FR-PVC (IEC 60502 ST2) with ​​3.1mm thickness​​ resists rock abrasion, salt spray, and termite infiltration – proven in Indonesia’s monsoon tunnels

​​Ⅱ. Extreme-Environment Performance: Data-Driven Survival​​

​​Threat Scenario​​ ​​Shenghua Solution​​ ​​Certified Performance​​
​​Seismic Cable Heave​​ Min. bending radius ​​15× OD​​ (multi-core) Absorbs 12G vibrations (Japan bullet train tunnels)

​​Coastal Substations​​ Hermetic XLPE seals + salt-neutralizing sheath ​​0.164Ω/km resistance​​ (3×185mm²); 90°C operation in 95% humidity

​​Mining Rockfall​​ Steel-tape armor (YJV32) + impact-resistant filler Survives 3-ton impacts; maintenance costs ↓45% in Zambia Copperbelt

​​Arctic Grid Freeze​​ Arctic-grade LSOH sheath (-40°C flexibility) Passes IEC 62930 cold bend test at -40°C

​​Ⅲ. Shenghua’s "Zero-Failure" Ecosystem: Beyond the Cable​​

  • ​​Global Manufacturing Dominance​​:
    • ​​5,000+ employees​​ across 21 factories, ​​1.3M m²​​ facility, and ​​110,000 km/year output​​ – ensuring batch consistency via AI-driven QC (99.998% defect-free)
    • Disaster-response logistics: ​​72-hour restocking​​ for earthquake-stricken grids (MOQ 200m)
  • ​​Lifecycle Guardianship​​:
    • ​​12-month PICC warranty​​ with free debugging, 24/7 hotline support, and seismic audit templates

    • Case library: Chile Atacama Mine (5-year zero abrasion failure), Surabaya Smart Grid (zero faults during 2024 monsoon)

Construction


Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE (cross-linked polyethylene) rated at 90 OC

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black


Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502-1, IEC 60228,
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 21/35(36)kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core


Certificates

CE, RoHS, , KEMA and more others at request

Commercial Items: MOQ: 200m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum

Specifications


Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

 Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 50 10/2.52 9.3 2 37.0 1360 0.641 73.5 170 165
1 × 70 14/2.52 9.3 2.5 38.0 1471 0.443 73.5 210 200
1 × 95 19/2.52 9.3 2.5 40.0 1605 0.320 73.5 255 240
1 × 120 24/2.52 9.3 2.5 42.0 1756 0.253 73.5 290 270
1 × 150 30/2.52 9.3 2.5 44.0 1910 0.206 73.5 330 305
1 × 185 37/2.52 9.3 2.5 45.0 2102 0.1640 73.5 380 345
1 × 240 48/2.52 9.3 2.5 48.0 2395 0.1250 73.5 435 400
1 × 300 61/2.52 9.3 3 50.0 2672 0.1000 73.5 510 455
1 × 400 61/2.97 9.3 3 53.0 3094 0.0778 73.5 595 525
1 × 500 61/3.23 9.3 3 55.0 3595 0.0605 73.5 690 600
1 × 630 61/3.50 9.3 3.1 60.0 4193 0.0469 73.5 800 680
1 × 800 91/3.20 5.5 3.1 65 4792 0.0367 73.5 920 770
1 × 1000 91/3.75 5.5 3.2 70 5581 0.0291 73.5 1040 860
3 × 50 10/2.52 9.3 3.5 76.0 4492 0.641 73.5 145 170
3 × 70 14/2.52 9.3 3.6 80.0 5000 0.443 73.5 190 190
3 × 95 19/2.52 9.3 3.7 83.0 5533 0.320 73.5 215 230
3 × 120 24/2.52 9.3 3.8 86.0 6054 0.253 73.5 240 255
3 × 150 30/2.52 9.3 3.9 89.0 6593 0.206 73.5 280 295
3 × 185 37/2.52 9.3 4.0 93.0 7255 0.1640 73.5 310 330
3 × 240 48/2.52 9.3 4.2 98.0 8216 0.1250 73.5 365 380
3 × 300 61/2.52 9.3 4.3 102.0 9248 0.1000 73.5 430 435
3 × 400 61/2.97 9.3 4.6 110.0 10663 0.0778 73.5 485 500
