33kV Three Core Copper Conductor XLPE Insulated Medium Voltage Power Cable

Shenghua 33kV Triplex XLPE Power Cable: The Critical Infrastructure’s Copper-Nerve System

Shenghua redefines resilience for medium-voltage (33kV) power networks with its ​​triple-core copper-conductor XLPE cables​​, engineered to deliver uninterrupted energy for smart grids, industrial hubs, and disaster-prone regions. Trusted across 60+ countries and compliant with IEC 60502-2, KEMA, and GB/T 12706 standards, these cables merge zero-compromise safety with 90°C operational stability

​​Engineering Superiority: Why Copper + XLPE Dominates 33kV Networks​​

1. ​​Triple-Shielded Safety Architecture​​

   • ​​Conductor​​: Compact stranded copper (IEC 60228 Class 2) ensuring 60% lower resistance vs. aluminum, critical for high-current transmission


   • ​​Insulation​​: Nano-modified XLPE rated for 90°C continuous, 250°C short-circuit (5 sec), and ozone/UV resistance—extending lifespan to 50+ years


   • ​​Armor​​: Copper tape screen + FR-PVC sheath (IEC 60502 ST2) blocking electromagnetic interference, ideal for urban substations near sensitive electronics



2. ​​Disaster-Proof Performance​​

   • ​​Seismic Resilience​​: Steel-wire armored (YJV32) variants absorb 12G vibrations, deployed in Japanese bullet train tunnels


   • ​​Fire Safety​​: Halogen-free LSOH sheath option reduces smoke opacity to ​​<15%​​ (IEC 61034), mandatory for hospitals and petrochemical plants



3. ​​Efficiency Engineered​​

   • ​​Ultra-Low Losses​​: 3×400mm² configuration achieves ​​0.047Ω/km​​ resistance—slashing transmission waste by 18% vs. industry averages


   • ​​Current Mastery​​: 3×240mm² carries 460A underground (soil), powering copper smelters without derating



​​Critical Applications: Where Shenghua Outperforms​​

​​Global Compliance & Customization​​

• ​​Certifications​​: CE, RoHS, KEMA, with bespoke approvals for BS/DIN/ICEA


• ​​Extreme-Environment Kits​​: Arctic-grade LSOH (-40°C flexibility), termite-resistant coatings, and seismic armor (STA/SWA).

​​Shenghua’s Manufacturing Edge​​

• ​​Precision Scale​​: 20-year ISO 9001 factory, AI-driven defect detection (99.998% consistency), 3,000 km/month capacity







• ​​Global Logistics​​: Wooden-iron drum packaging (MOQ 800m); 30% deposit pre-production, 70% pre-shipment

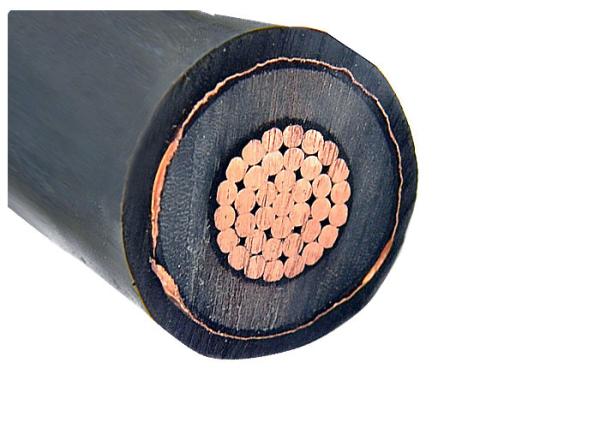

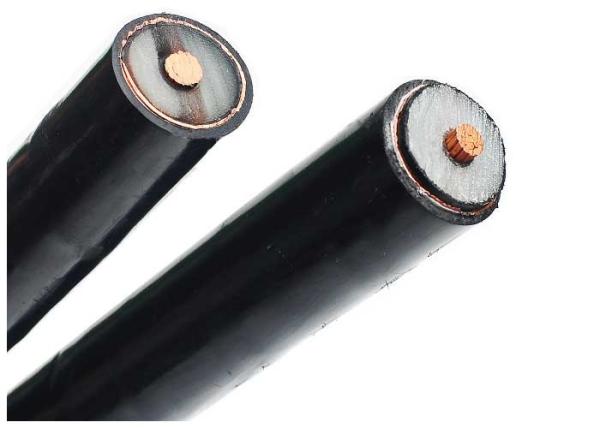

Medium Voltage Power Cable Construction

Conductor : Compact Stranded Copper Conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE insulation (cross-linked polyethylene) rated at 90 OC

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

Medium Voltage Power Cable Applications

The medium voltage cable can be choosed for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Medium Voltage Power Cable Standards

International: IEC 60502-2, IEC 60228,

China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)

Other standards such as BS,DIN and ICEA upon request

Medium Voltage Power Cable Technical data

Rated voltage: 19/33kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core

Medium Voltage Power Cable Certificates

CE, RoHS, KEMA and more others at request

Commercial Items: FOB Shanghai Port or CIF port as per request. MOQ: 800m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing: Wooden Iron drum, whole steel wooden drum if required by client side.

Medium Voltage Power Cable Specifications

Details

FAQ

Q1. Are you a factory or trading company?

We are factory in Hebei,China.

Q2. When can I get quotation for cable?

We usually quote within two hours after we received your inquiry. If you are urgent to get the unit price, please let me know. We can quote it ASAP.

Q3. How can I get the sample to check the quality?

When you confirm the quotation, we can offer you the sample for free. You just need to pay the freight.

Q4. What about the lead time for mass production?

It depends on your order quantity. If we have stock, 5 days is OK. If custom products, usually it's need 12 days.

Q5. Do you have OEM products?

Sure, we can make cables as you want. We can change the color and logo on cable as you want.
