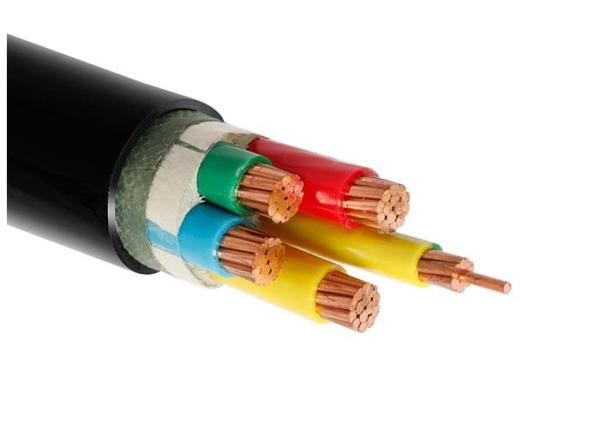

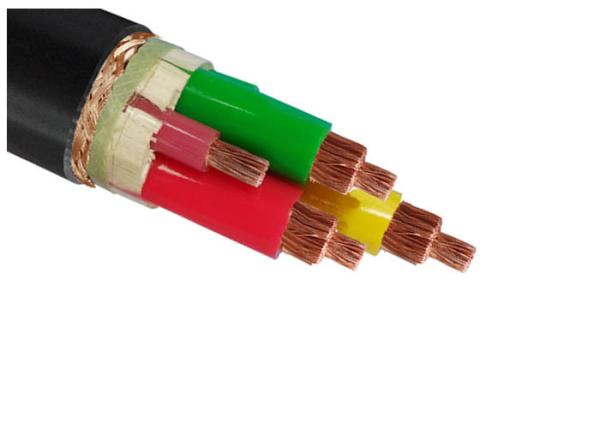

Multi Core Aluminum Conductor XLPE Insulated Power Cable Low Voltage 1kv

Shenghua XLPE Insulated Power Cable: Revolutionizing Low-Voltage Power Transmission with Unmatched Reliability

In today’s demanding industrial landscape, ​​efficient and durable power transmission​​ is non-negotiable. Shenghua’s ​​Multi Core Aluminum Conductor XLPE Insulated Power Cable​​ (1kV) stands at the forefront, engineered to exceed global standards while delivering unparalleled performance in diverse environments. Here’s why engineers and project managers worldwide are making the switch:

1. Advanced Engineering for Uncompromising Performance

• ​​Superior Conductor Design​​: Compact stranded aluminum conductors (Class 2 per IEC 60228) optimize conductivity while reducing cable weight and installation costs


• ​​XLPE Insulation​​: Cross-linked polyethylene rated at 90°C ensures ​​high electric strength​​, ​​exceptional thermal aging resistance​​, and resilience against environmental stress and chemical corrosion


• ​​Robust Sheathing​​: PVC or flame-retardant PVC (ST2 to IEC 60502) provides mechanical protection and fire safety, ideal for indoor/outdoor laying



2. Versatile Applications Across Industries

Shenghua cables adapt seamlessly to:

• ​​Underground power networks​​ in urban infrastructure


• ​​Industrial plants and transformer stations​​ requiring stable 90°C operation


• ​​Renewable energy projects​​ where corrosion resistance and flexibility are critical

3. Global Compliance & Certifications

Shenghua meets the world’s toughest standards:

• ​​International​​: IEC 60502-1, IEC 60228
• ​​China​​: GB/T 12706 (GB/T 18380-3 for flame-retardant variants)
• ​​On-Demand Certifications​​: CE, RoHS, KEMA, plus BS (UK), DIN (Germany), or ICEA (North America) support



4. Technical Excellence in Critical Scenarios

Data validated under ambient ≥0°C, with bending radii ≤15× O.D. (multi-core)

5. Why Shenghua Leads the Market

• ​​Rigorous Quality Control​​: 100% inspection of semi-finished/finished products ensures zero defects


  .
• ​​Global Provenance​​: Cables deployed across 100+ countries, from European industrial grids to Southeast Asian infrastructure


  .
• ​​Responsive Support​​: MOQ 200 meters, 30% prepayment terms, and wooden drum packaging for secure global shipping


  .

Construction

Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228

Insulation : XLPE (cross-linked polyethylene) rated at 90 OC

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502-1, IEC 60228,

China: GB/T 12706, (GB/T 18380-3 for ZR-YJLV only)

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 21/35(36)kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core

Certificates

CE, RoHS, , KEMA and more others at request

Commercial Items: MOQ: 200m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
