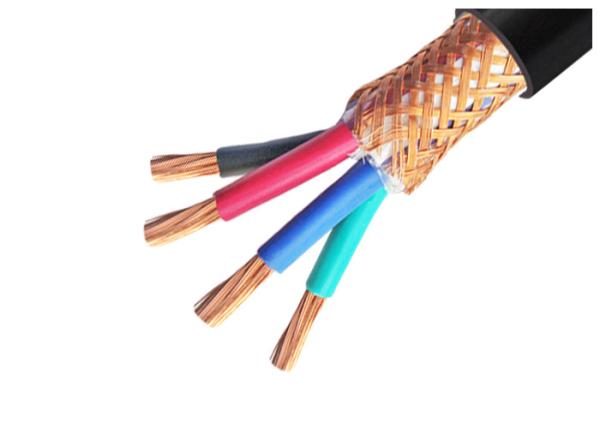

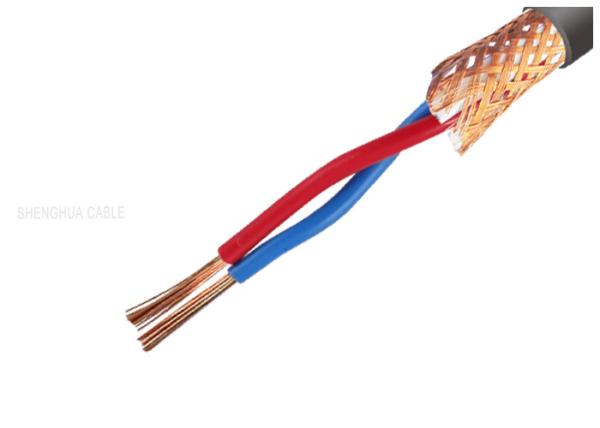

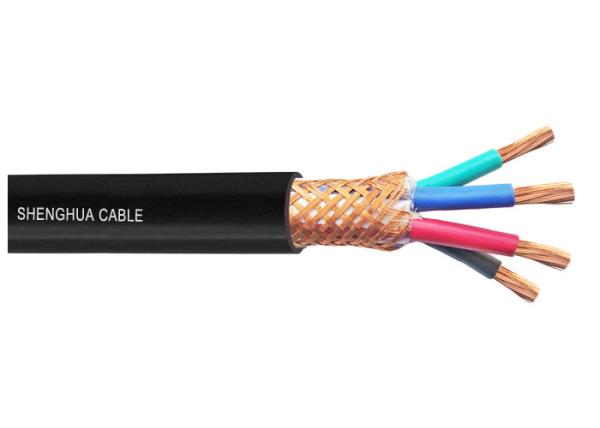

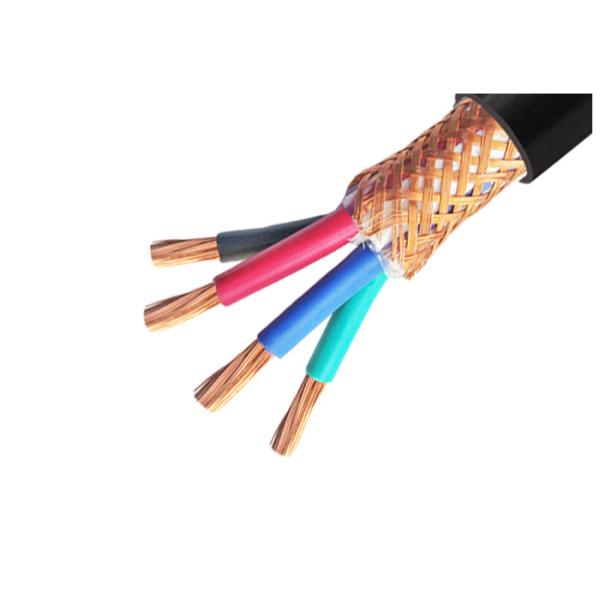

EMC Shielding Tinned Copper Braid Flexible Power Cable For Frequency Controlled Drives
EMC Shielding Tinned Copper Braid Flexible Power Cable For Frequency Controlled Drives
EMC Shielding Tinned Copper Braid Flexible Power Cable For Frequency Controlled Drives
EMC Shielding Tinned Copper Braid Flexible Power Cable For Frequency Controlled Drives
EMC Shielding Tinned Copper Braid Flexible Power Cable For Frequency Controlled Drives
EMC Shielding Tinned Copper Braid Flexible Power Cable For Frequency Controlled Drives
EMC Shielding Tinned Copper Braid Flexible Power Cable For Frequency Controlled Drives
EMC Shielding Tinned Copper Braid Flexible Power Cable For Frequency Controlled Drives
Specifications
Brand Name :
SHANCABLE
Model Number :
RVVP3P1
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Packaging Details :
Wooden Drum
Cable Type :
RVVP3P1
Standard :
VDE
Insulation Colour :
Any colour
Function :
Shield Electrical Cable Wire
Warranty :
2 Years
Shield Material :
Copper Wire Braid (CWB)
Delivery Time :
10 Days
Supply Ability :
100KM/Week
Corporation :
shenghua group
Brand :
Sh Cable
Description

EMC Shielding Tinned Copper Braid Flexible Power Cable For Frequency Controlled Drives

Specifications

RVVP3P1 300/300V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
0.20 12/0.15 2.2 8.3 92.3
0.30 16/0.15 2.6 10.5 69.2
0.40 23/0.15 3.0 15.9 48.2
0.50 16/0.20 3.1 16.8 39.0
0.75 24/0.20 3.4 20.9 26.0
1.0 32/0.20 3.8 26.5 19.5
1.5 30/0.25 4.1 32.4 13.3
2.5 49/0.25 4.9 48.2 7.98

LIYCY,LIYCY-90 300/300V 2-CORE ELLIPSE MODEL

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
2X0.20 2X12/0.15 2.2X3.9 14.7 92.3
2X0.30 2X16/0.15 2.8X4.8 19.7 69.2
2X0.40 2X23/0.15 3.0X5.2 28.1 48.2
2X0.50 2X16/0.20 3.1X5.4 29.9 39.0

RVVP3P1​-90 300/300V 2-CORE ELLIPSE MODEL

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
2X0.75 2X24/0.20 3.4X6.0 37.5 26.0
2X1.0 2X32/0.20 3.8X6.8 48.6 19.5
2X1.5 2X30/0.25 4.1X7.4 59.9 13.3

RVVP3P1 300/300V 2-CORE

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
2X0.20 2X12/0.15 5.3 33.2 92.3
2X0.30 2X16/0.15 6.2 49.3 69.2
2X0.40 2X23/0.15 6.6 57.0 48.2
2X0.50 2X16/0.20 6.8 59.2 39.0
2X0.75 2X24/0.20 7.4 70.7 26.0
2X1.0 2X32/0.20 8.2 86.7 19.5
2X1.5 2X30/0.25 9.2 110.4 13.3

RVVP3P1 300/300V 3-CORE

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
3X0.20 3X12/0.15 5.8 38.6 92.3
3X0.30 3X16/0.15 6.5 48.6 69.2
3X0.40 3X23/0.15 6.9 56.7 48.2
3X0.50 3X16/0.20 7.1 60.7 39.0
3X0.75 3X24/0.20 7.8 73.6 26.0
3X1.0 3X32/0.20 9.1 100 19.5
3X1.5 3X30/0.25 10.1 131 13.3
4X0.20 4X12/0.15 6.2 45.9 92.3
4X0.30 4X16/0.15 7.0 57.5 69.2
4X0.40 4X23/0.15 7.5 67.9 48.2

RVVP,RVVP1 300/300V 3-CORE

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
5X0.20 5x12/0.15 6.7 52.7 92.3
5X0.30 5x16/0.15 7.6 66.6 69.2
5X0.40 5x23/0.15 8.1 78.8 48.2
6x0.20 6x12/0.15 7.2 59.6 92.3
6x0.30 6x16/0.15 8.2 76.6 69.2
6x0.40 6x23/0.15 9.2 98.3 48.2
7x0.20 7x12/0.15 7.2 64.2 92.3
7x0.30 7x16/0.15 8.2 82.3 69.2
7x0.40 7x23/0.15 9.2 106.0 48.2
10x0.20 10x12/0.15 9.3 94.3 92.3
10x0.30 10x16/0.15 10.9 132.0 69.2
10x0.40 10x23/0.15 11.6 157.0 48.2
12x0.20 12x12/0.15 9.6 105 92.3
12x0.30 12x16/0.15 11.2 147 69.2
12x0.40 12x23/0.15 11.9 175 48.2
