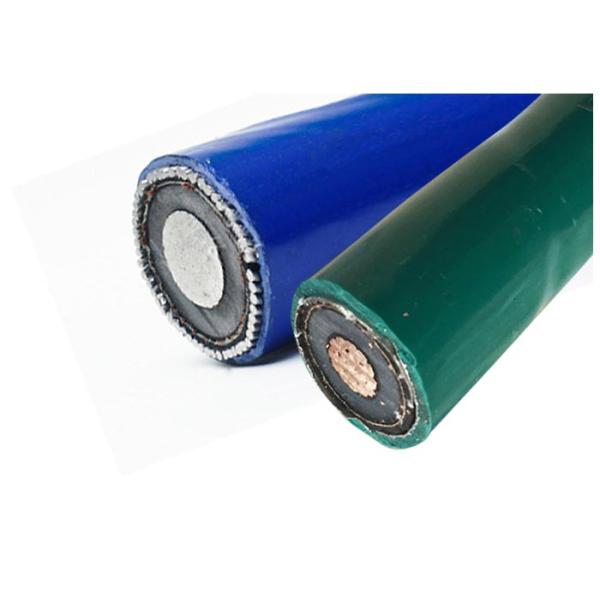

Robust 33kV Armoured Electrical Cable for Industrial Power Distribution Networks
Robust 33kV Armoured Electrical Cable for Industrial Power Distribution Networks
Specifications
Brand Name :
SHANCABLE
Model Number :
YJLV72 YJV72
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Product Name :
Copper or Aluminum Armored Cable
Nominal Area of Conductor :
1.5mm2 to 1000 mm2
Voltage :
High
Standard :
IEC 60502-2 IEC 60228
Application :
power distribution lines, laying in shaft, water underground
Corporation :
shenghua group
Brand :
Sh Cable
Description
Robust 33kV Armoured Electrical Cable for Industrial Power Distribution Networks
Product Introduction
Our 33kV Armoured Electrical Cable is engineered for demanding medium-voltage power distribution and transmission applications. Designed to international standards, this cable features a choice of copper or aluminum conductors, high-grade XLPE insulation, and critical protective layers including a copper tape shield and robust steel wire or tape armouring, finished with a durable PVC sheath. This construction makes it an exceptionally reliable Armoured Electrical Cable​ for fixed installations in industrial plants, including facilities manufacturing precision equipment like lipstick filling machines, where a secure and uninterrupted power supply is non-negotiable.
Features & Benefits
  • Superior Mechanical & Electrical Protection:​ The integrated steel armouring provides outstanding resistance to crushing forces, impact, and rodent damage, while the copper tape shield ensures excellent earth fault protection and electromagnetic compatibility. This dual protection is the hallmark of a premium Armoured Electrical Cable.
  • High-Performance & Durability:​ The XLPE insulation ensures a high current rating, excellent thermal stability (up to 90°C continuous, 250°C short-circuit), and long-term reliability. It is ideally suited for direct burial, installation in ducts, or areas with significant mechanical stress.
  • Global Compliance & Flexibility:​ Manufactured to IEC 60502 standards, with options for BS, DIN, and other norms, this cable meets the stringent requirements of projects in the EU, North America, and Southeast Asia (including Vietnam). The availability of copper or aluminum conductors provides cost and application flexibility.
  • Designed for Critical Infrastructure:​ Perfect for powering heavy machinery and sensitive production lines, this Armoured Electrical Cable​ ensures maximum uptime and safety in challenging environments, from underground feeds to industrial complexes.
Why Choose Our Armoured Cable?
We are a leading manufacturer with over two decades of expertise in producing reliable power cable solutions. We understand the critical nature of your power infrastructure. Choosing our Armoured Electrical Cable​ means partnering with a supplier committed to quality, evidenced by international certifications (CE, KEMA, CCC). We offer full OEM support, from custom sizing and packaging to logistics, ensuring a perfect fit for your project specifications. Our commitment includes rapid technical response, professional after-sales service, and on-time delivery, directly supporting the growth of industries across our key markets.
Technical Data Summary
Model Example
Rated Voltage Uo/U (Um)
Conductor
Core & Typical Sizes
Armouring Type
YJV22 / YJLV22
18/30(36)kV, 26/35(40.5)kV
Copper (Cu) or Aluminum (Al)
1-core or 3-core, 10 to 630 mm²
Steel Tape (22)
YJV32 / YJLV32
18/30(36)kV, 26/35(40.5)kV
Copper (Cu) or Aluminum (Al)
1-core or 3-core, 10 to 630 mm²
Steel Wire (32)
Key Specifications:​ Max. Conductor Temp: 90°C | Short-Circuit Temp: 250°C | Min. Bending Radius: 15 x Cable O.D.
FAQ
Q: What are the primary applications for this Armoured Electrical Cable?
A:​ This cable is designed for fixed installations in power networks where mechanical protection is essential. Common applications include direct burial, installation in cable trenches, ducts, tunnels, and industrial plants—especially where the cable may be exposed to stress, such as in facilities for manufacturing and packaging machinery.
Q: Why is the armouring necessary, and how do I choose between steel tape (22) and steel wire (32)?
A:​ The armouring provides crucial protection against mechanical damage, crushing, and tension. Steel tape (designation 22) offers robust anti-rodent and crushing protection for most installations. Steel wire armouring (32) provides enhanced tensile strength, making it suitable for vertical runs or applications with significant pulling tension. We can advise on the best type for your project in the EU, Vietnam, or other regions.
Q: Do you provide cables with international certification for export to the EU or North America?
A:​ Yes. Our Armoured Electrical Cable​ is produced to IEC standards, and we hold CE certification among others. We can also provide cables tested to specific standards like BASEC or UL upon request, ensuring compliance for your target market.
Q: What is your lead time and packaging for export?
A:​ We prioritize efficient logistics. Cables are securely packed on wooden or steel drums, optimized for sea freight in containers. Standard lead times apply, and we provide detailed schedules with your quote to ensure your project timeline in Southeast Asia or elsewhere is met without delay.
