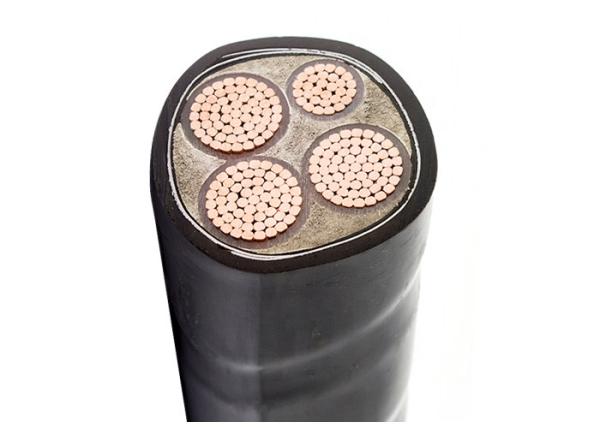

Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)
Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)
Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)
Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)
Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)
Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)
Specifications
Brand Name :
SHAN CABLE
Model Number :
WDZA-YJY WDZ-YJE
Certification :
RoHS/KEMA/TUV/CE/ISO
Place of Origin :
SHANGHAI CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
38573KM/Day
Delivery Time :
7 Days
Packaging Details :
Wooden Drum
Product Name :
Low Smoke Zero Halogen Cable
Application :
Indoor installation, in tunnels and in ducts used for electric transmission and distribution control systems
Size :
1.5-800mm2
Rated Voltage :
0.6/1kV
Free sample :
Yes
Color :
Orange or customized
Standard :
IEC60502 ,IEC60228 IEC60331,60332
Type :
Lszh Power Cable
Corporation :
shenghua group
Brand :
Sh Cable
Description

Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)

Applications:

Used for applications requiring circuit integrity during a fire mainly used in Fire Alarm systems, sprinkler systems in schools, hospitals, cinemas and railways. Power station, Metro Tunnel or Petrochemical Industry or other special place with high requirement for fire resistant and low smoke , zero halogen clean and safe cable.

Constructions

1. Copper or aluminum conductor

2. PE or XLPE insulation

3. Filler

4. Wrapping tape

5. Low-smoke zero halogen or low-smoke low- halogen sheath Orange/ Black

6. Cable mark

Standards

International: IEC 60502, IEC 60287 IEC 60331, IEC 61034 IEC60332

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%

Type Description Cores Nominal Cross Section

WDZAN-YJY

WDZBN-YJY

WDZCN-YJY

 Copper conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZAN-YJY23 WDZBN-YJY23 WDZCN-YJY23 Copper conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZAN-YJY33 WDZBN-YJY33 WDZCN-YJY33 Copper conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZAN-YJLY WDZBN-YJLY WDZCN-YJLY Aluminum conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZAN-YJLY23 WDZBN-YJLY23 WDZCN-YJLY23 Aluminum conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2
WDZAN-YJLY33 WDZBN-YJLY33 WDZCN-YJY33 Aluminum conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2		 1.5~800mm2

Specification:

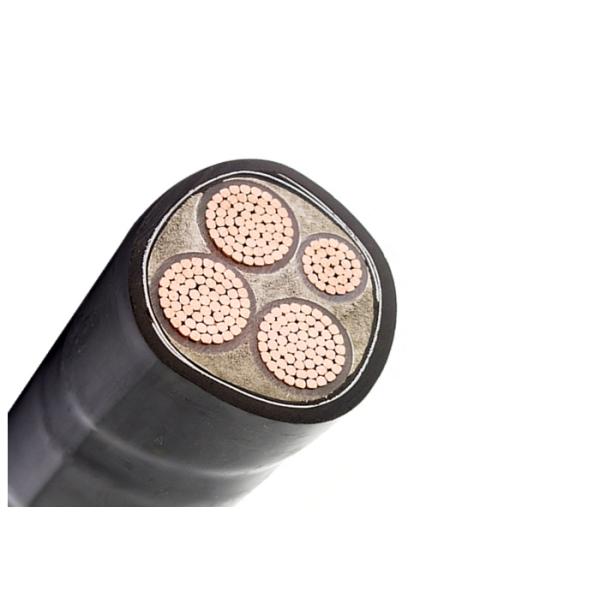

Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)

Details

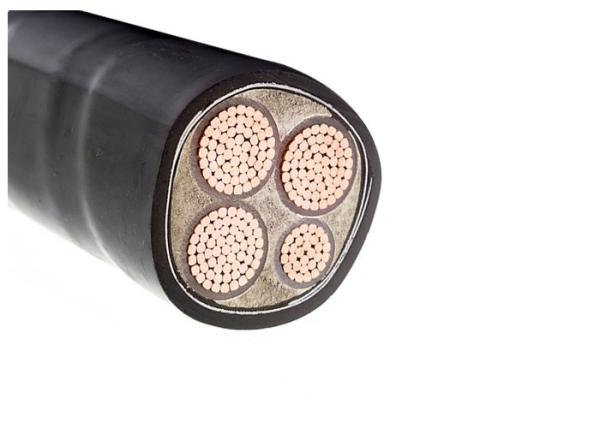

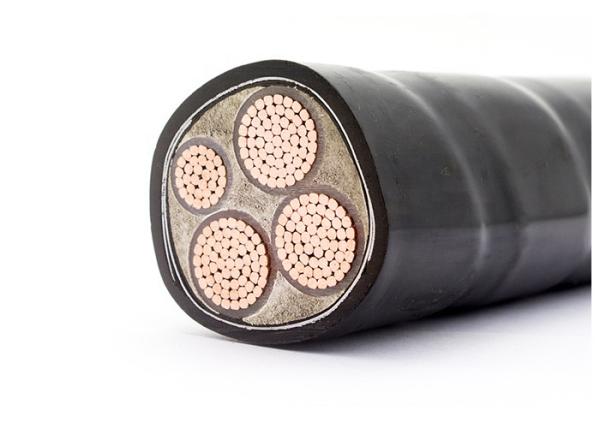

Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)

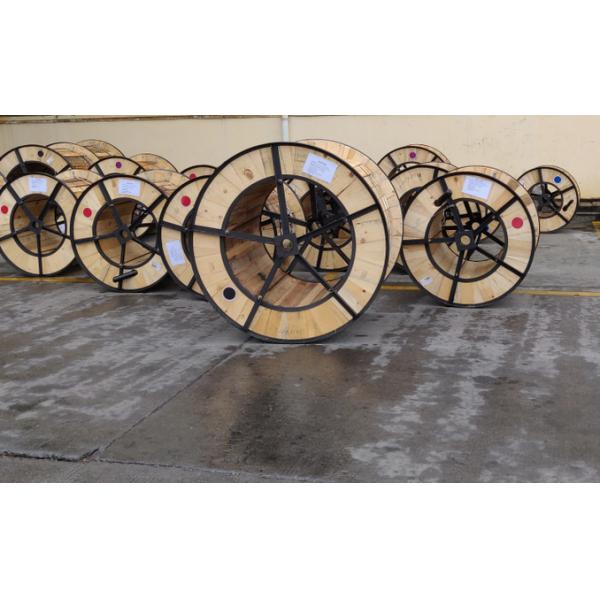

Packing:

Stranded Copper Conductor Low Smoke Zero Halogen Cable (LSHF, LSZH, LSOH)
