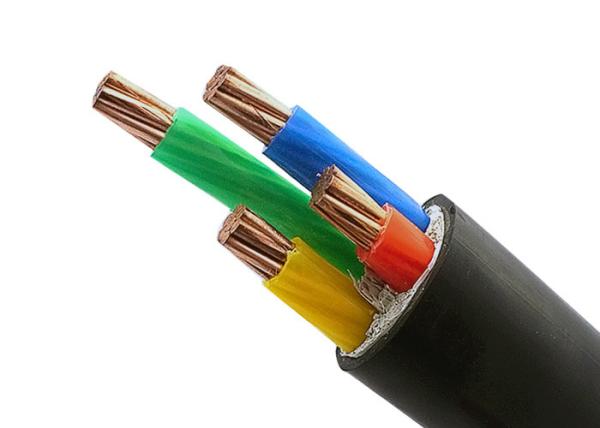

Four core 100% Pure Copper Conductor XLPE Insulation PVC Sheath Cable

XLPE Insulation PVC Sheath Cable Construction

Conductor : Stranded Copper Conductor, Cl.2 as per IEC 60228

Insulation : XLPE Insulation

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

XLPE Insulation PVC Sheath Cable Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

XLPE Insulation PVC Sheath Cable Standards

International: IEC 60502-1, IEC 60228,

China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage:0.6/1kV

Maximum Conductor Temperature: under normal (90 ^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 ^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core

Certificates

CE, RoHS, KEMA and more others at request

Commercial Items: MOQ:500m

Price Term: FOB Shanghai or CIF as request.

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum or we can offer whole steel drum if requested by client.

Specifications

Details

FAQ

Q1. Are you a factory or trading company?

We are factory in Hebei,China.

Q2. When can I get quotation for cable?

We usually quote within two hours after we received your inquiry. If you are urgent to get the unit price, please let me know. We can quote it ASAP.

Q3. How can I get the sample to check the quality?

When you confirm the quotation, we can offer you the sample for free. You just need to pay the freight.

Q4. What about the lead time for mass production?

It depends on your order quantity. If we have stock, 5 days is OK. If custom products, usually it's need 12 days.

Q5. Do you have OEM products?

Sure, we can make cables as you want. We can change the color and logo on cable as you want.
