1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
Specifications
Brand Name :
SHAN CABLE
Model Number :
CU/MICA/XLPE/LSOH FR
Certification :
CE/KEMA/IEC
Place of Origin :
CHINA
MOQ :
500m
Price :
0.5-50 USD
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000 KM per month
Delivery Time :
15 working days
Packaging Details :
Wooden Iron Drum
Conductor :
Copper
Insulation :
XLPE
Wrapping Tape :
LSOH BendingTape
Sheath :
LSOH
Rated Voltage :
LV and MV
Cores No. :
1-5 cores
Corporation :
shenghua group
Brand :
Sh Cable
Description

1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC

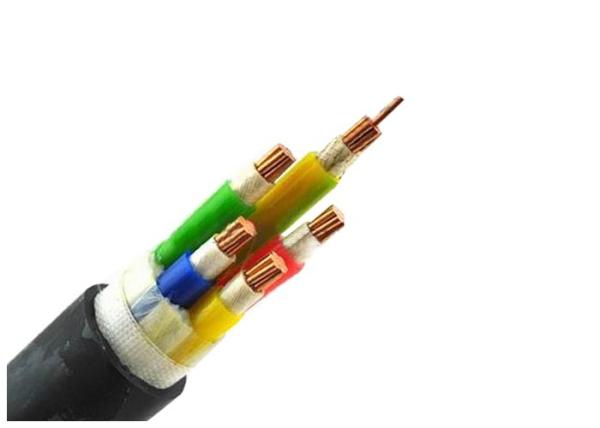

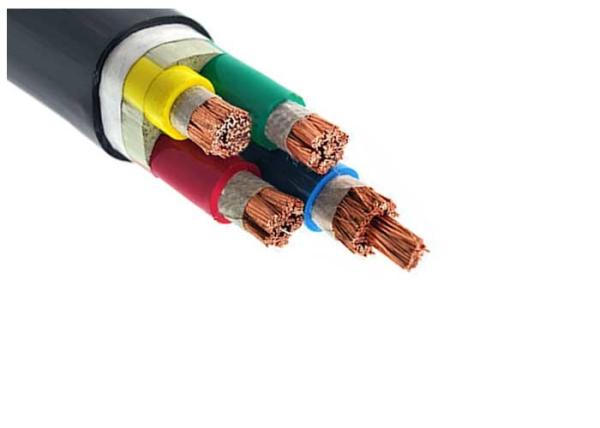

Construction

1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228

(11 MicaTape

③lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1

CodeDesignation

YJ:XLPEinsulation Y: LSOH sheath

Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3 for FR cable only)

Other standards such as BS, DIN and lCEAupon request

Technical data

Rated voltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than 5 s(250°C) conditions Min.Ambient Temp.-15°C,lnstallationTemp.0°C
