Specifications
Brand Name :
SHANCABLE
Model Number :
WDZAN-YJY 600/1000V
Certification :
IEC,KEMA,ISO,CE
Place of Origin :
SHANGHAI, CHINA
MOQ :
500meter
Payment Terms :
L/C, T/T, D/A, D/P, Western Union,
Delivery Time :
As per schedual

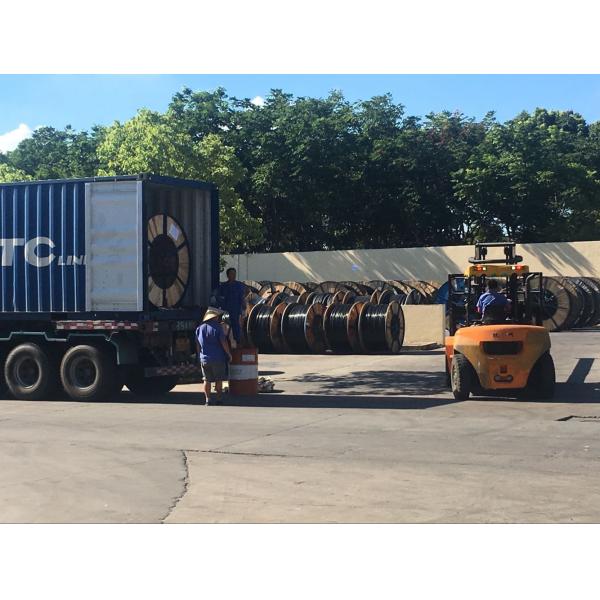

Packaging Details :
Wooden Drum
Size :
1.5sqmm~800sqmm
Conductor Type :
Copper
Core NO. :
Single
Tape :
Mica-Tape
Working Temperature :
90℃
Sample :
20cm for free of charge
Color :
Black
Corporation :
shenghua group
Brand :
Sh Cable
Description

0.6/1kV Copper Conductoe Single Core Fire Resistant Cable According IEC 60331,60502

Application:

LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Applicable Standard:

We can produce according to standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

Characters:

1.Rated voltage: 0.6/1KV

2.Cable core number: 1Core

3.Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation

In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulation.

Construction:

Conductor: Cu/Al (Solid/Stranded)

FR: Mica Tape

Insulation: XLPE/PVC/PE/LSHF

Inner sheath (applicable if there is armor layer): PVC/PE

Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape

Outer sheath : PVC/PE/LSHF

Technical parameter:


Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2
