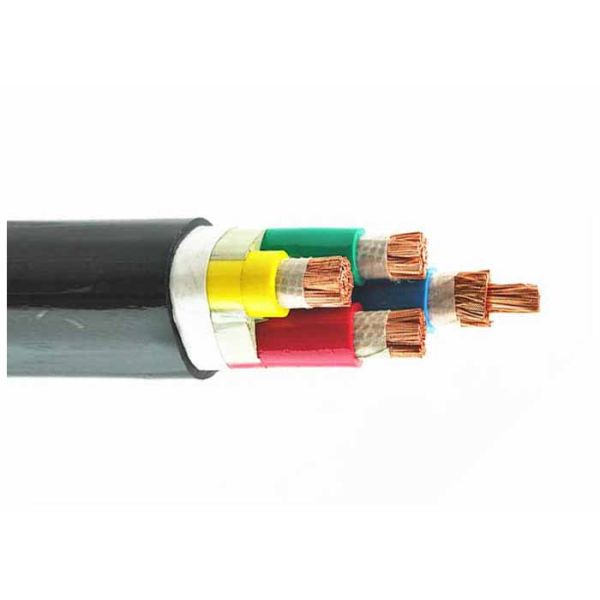

Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm
Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm
Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm
Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm
Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm
Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm
Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm
Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm
Specifications
Brand Name :
SHANCABLE
Model Number :
WDZAN-YJY 600/1000V
Certification :
IEC,KEMA,ISO,CE
Place of Origin :
SHANGHAI, CHINA
MOQ :
500meter
Payment Terms :
L/C, T/T, D/A, D/P, Western Union,
Delivery Time :
As per schedual
Packaging Details :
Wooden Drum
Size :
1.5sqmm~800sqmm
Conductor Type :
Copper
Core NO. :
Four
Sheath Color :
Orange
Working Temperature :
90℃
Sample :
20cm for free of charge
Corporation :
shenghua group
Brand :
Sh Cable
Description

0.6/1kV Flexible FRC Cable CU/XLPE/PVC Fire Orange Color Resistant Cable Price

Applications

PVC Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.

Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal and salty water if specially made.

Standards

International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS,DIN and ICEA upon request

Installation

1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.

Technical parameter:

Cross section of conductor Thickness of insulation Thickness of Sheath Approx.cable diameter Max.resistance of conductor at 20 ℃ Test Voltage(AC)
mm2 mm mm mm ohm/km KV/5min
4x2.5 0.8 1.8 12.7 7.41 3.5
4x4 1.0 1.8 14.9 4.61 3.5
4x6 1.0 1.8 16.1 3.08 3.5
4x10 1.0 1.8 19.2 1.83 3.5
4x16 1.0 1.8 21.7 1.15 3.5
4x25 1.2 1.8 25.9 0.73 3.5
4x35 1.1 1.8 28.7 0.524 3.5
4x50 1.4 1.9 30.4 0.387 3.5
4x70 1.6 2.1 33.9 0.268 3.5
4x95 1.6 2.2 39.7 0.193 3.5
4x120 1.8 2.4 44.2 0.153 3.5
4x150 2.0 2.0 48.7 0.124 3.5
4x185 2.2 2.7 53.5 0.0991 3.5
4x240 2.4 2.9 55.4 0.0754 3.5
4x300 2.6 3.0 61.0 0.060 3.5
4x400 2.6 3.2 70.0 0.0470 3.5

Technical data:


Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2

Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm
