Specifications
Main Motor Power :
15/18.5kw
Control System :
GSK, FANUC
Maximum Tapping Diameter :
Φ20
Axis Travel :
X1100/Y750/Z900mm
Brand Name :
ShangJie PM
Pallet_Change_Time :
6 seconds
Suitable For :
various box parts rough finishing
Table Graduation :
1°*360
Tool_Capacity :
30 tools
Workbench Size :
630x630mm
Spindle Speed :
6000RPM
Features :
Heavy Cutting, High Material Removal
Rapid_Traverse_Rate :
60 m/min
Table_Size :
500mm x 500mm
Spindle_Speed :
10,000 RPM
Processing Capabilities :
high precision and high efficiency
Place of Origin :
Hubei, China
Model Number :
HMC630
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
45-60 days
Max_Load_Capacity :
500kg
Warranty :
1 Year
Machine Type :
HMC630 Horizontal Machining Center
Max Table Load :
1200KG
Spindle Taper :
BT50
Power_Requirement :
AC 220V/380V, 50/60Hz
Table Surface Type :
T-slot
Description

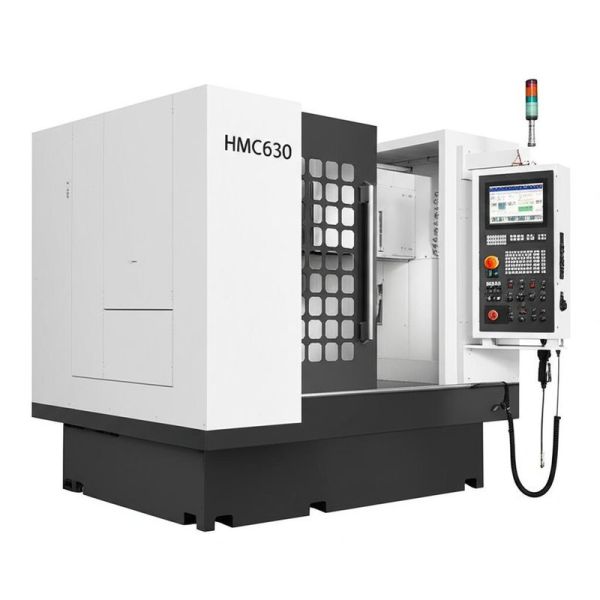

HMC630 Horizontal Machining Center with 630x630 mm Workbench 1200KG Max Load and 6000 RPM Spindle Speed
The HMC series of machine tools features an advanced T-shaped integral bed structure with gantry-type column and front-hung box layout, offering exceptional rigidity and precision retention. Designed for industrial applications, the HMC630 excels in heavy cutting tasks with high material removal efficiency.
Machine Structure
Professionally engineered with low center of gravity, anti-twist, and anti-rust properties, the machine's structure has been optimized through finite element analysis (FEM) to achieve optimal bed strength. Special reinforcement in the base and Z-axis column enhances performance for heavy cutting operations and extends tool life.
630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed
Specifications
Machine Type HMC630
Workbench size 630x630 mm
Workbench T-slot (number - size * pitch) 5-18x100 mm
Max. load capacity of the workbench 1200KG
X-axis travel distance 1100mm
Y-axis travel distance 750mm
Z-axis travel distance 900mm
Distance from spindle centerline to worktable surface 20-770mm
Distance from spindle face to worktable center 130-1030 mm
Guide rail form Precision Grade P roller-type linear guide
X,Y,Z fast movement speed 24m/min
X axis Max. torque of motor 69N.m
Y axis Max. torque of motor 69N.m
Z axis Max. torque of motor 69N.m
Max. spindle speed 6000 rpm
Spindle taper hole BT50
Spindle motor power 15/18 KW
Tool magazine capacity Disc-Type 24Tools
Max. weight of cutting tools 8KG(BT40) / 15KG(BT50)
Air source pressure 0.5-0.8 MPa
Positioning accuracy 0.01mm
Repeatability positioning accuracy 0.006mm
Positioning accuracy of B-axis 10"
Repeatability positioning accuracy of B-axis 6"
Machine size (L x W x H) 4800x4000x2800mm
Standard weight 11000KG
Machine Tool Configuration
CNC System
FANUC, SYNTEC, KND, Mitsubishi
630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed 630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed
Spindle
High-quality spindle with imported bearings
630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed
Guide Rails
THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type linear guide
630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed
Standard equipped with a lift-free turntable, continuous positioning and indexing can reach 0.001°. The entire series adopts a slider direct connection structure, featuring high rigidity and high precision.
630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed
The double lead precision worm gear and worm achieve zero clearance transmission and a maintenance-free lifespan of 20,000 hours. Features large transmission ratio, smooth operation, and self-locking properties.
630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed
Imported P4 grade precision turntable bearings with three rows of rollers provide exceptional axial and radial support, resulting in strong clamping and anti-overturning torque.
630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed
Standard equipped with chain-type chip conveyor and small iron chip cart.
630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed
High-quality disc-type/Umbrella-type ATC Tool magazine
630x630mm Workbench HMC630 Horizontal Machining Center 1200KG 6000RPM Spindle Speed
Company Profile
Established in 2007, we specialize in the research, development, and production of CNC machine tools with over 10 years of industry experience.
Company Advantages
  • Quality system certified manufacturer
  • Independent design and R&D capabilities
  • Equipped with large gantry machining centers, five-axis machining centers, and vertical machining centers
  • Dedicated after-sales service team
Product Advantages
  • HT300 high-grade castings with ergonomic design
  • Imported functional components for long-term dimensional stability
  • Complete in-house processes from casting to sheet metal fabrication
Application Scenarios
Ideal for mechanical processing in automotive manufacturing, aerospace, and shipbuilding industries.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF or others). For mass production we usually require 30% advance payment with the balance paid against bill of lading. Payment methods are typically T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
