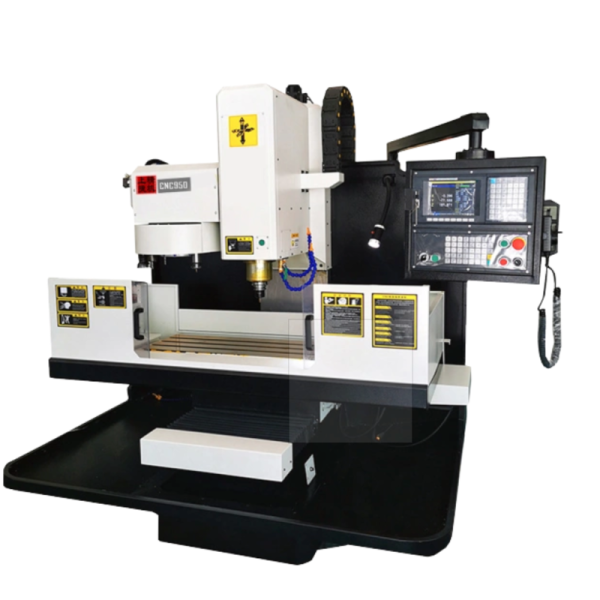

35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300
35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300
35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300
35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300
Specifications
Bed Material :
HT300 Cast Iron
Max Table Load :
250Kg
Axis Travel :
X700/Y400/Z500mm
Rapid Speed :
25 m/min
Axis Linkage :
Three-Axis Linkage
Brand Name :
ShangJie PM
Guide Rail :
35mm P-Level Linear Guides
Place of Origin :
Hubei, China
Model Number :
CNC740
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,,Western Union
Supply Ability :
45-60 days
X-Axis Travel :
800 mm
Spindle Speed :
8000 RPM
Table Size :
1000x500 mm
Tool Capacity :
24
Weight :
3500 kg
Y-Axis Travel :
500 mm
Max Load Capacity :
500 kg
Number Of Axes :
3
Z-Axis Travel :
500 mm
Power Requirement :
380V, 50Hz, 3 Phase
Accuracy :
0.01 mm
Rapid Traverse Rate :
15 m/min
Control System :
CNC
Type :
Vertical
Machine Type :
CNC740 Drilling Milling Machine
Ball Screws :
40mm C3 Ground Ball Screws
Workbench Size :
1300x350mm
Description
CNC740 CNC Drilling and Milling Machine with HT300 Material 35mm P-level Precision Linear Guides and Ø40 C-level Ground Ball Screws
The CNC series of numerically controlled drilling and milling machines feature an integral bed structure made of HT300 material, offering exceptional rigidity and stability. Equipped with 35mm P-level precision linear guides and Ø40 C3-grade ground ball screws, with 6 slides on the X-axis, these machines deliver precision performance. The CNC control system enables three-axis linkage for complex part machining.
Technical Specifications
Specification Value
Machine Model CNC740
Workbench size 1300x350mm
Workbench T-slot (number - size * pitch) 3-14x90mm
Max. load capacity of the workbench 250 Kg
Distance from spindle face to worktable surface 100-600mm
X-axis travel distance 700mm
Y-axis travel distance 400mm
Z-axis travel distance 500mm
X,Y,Z fast movement speed 25 m/min
X axis Max. torque of motor 25.2N.m
Y axis Max. torque of motor 25.2N.m
Z axis Max. torque of motor 34.5N.m
Spindle taper hole BT40
Spindle motor power 5.5/7.5 KW
Max. spindle speed 8000rpm
Tool magazine capacity (Optional) Umbrella-Type 12Tools
Air source pressure 0.5-0.8 MPa
Max. weight of cutting tools 8KG
Machine size (L x W x H) 175x160x220 cm
Standard weight 2.0 T
Machine Tool Configuration
35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300
High-quality spindle, imported bearings
35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300
PMI, HIWIN, HTPM 35,45 Precision Grade P roller-type linear guide
35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300
PMI, HIWIN C3 grade precision ground ball screw
35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300
Precision high-rigidity coupling
