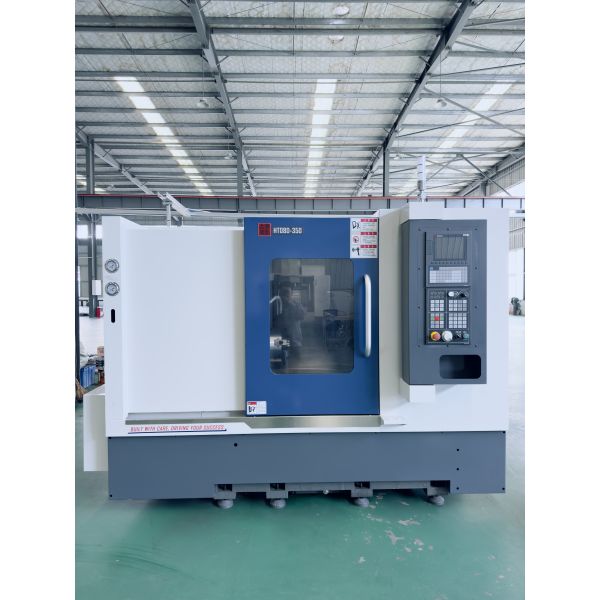

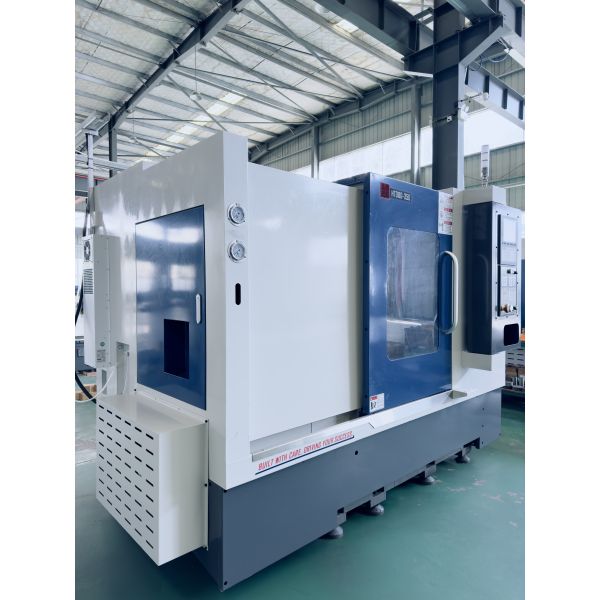

5.5KW 7.5KW Spindle Motor Power CNC Turning Center 50-3000r/Min Lathe Machine
5.5KW 7.5KW Spindle Motor Power CNC Turning Center 50-3000r/Min Lathe Machine
5.5KW 7.5KW Spindle Motor Power CNC Turning Center 50-3000r/Min Lathe Machine
5.5KW 7.5KW Spindle Motor Power CNC Turning Center 50-3000r/Min Lathe Machine
5.5KW 7.5KW Spindle Motor Power CNC Turning Center 50-3000r/Min Lathe Machine
5.5KW 7.5KW Spindle Motor Power CNC Turning Center 50-3000r/Min Lathe Machine
Specifications
Place of Origin :
Hubei, China
Brand Name :
ShangJie PM
Certification :
CE, ISO
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,,Western Union
Supply Ability :
45-60 days
Spindle Motor Power :
5.5/7.5KW
Machine Type :
Slant Bed CNC Lathe
Features :
Y-Axis Milling Rigidity
Tool Turret :
Y-Axis Gantry Turret
Spindle Speed :
50-3000r/min
Maximum Screw Diameter :
630mm
X Travel :
400mm
Spindle Unit :
40mm
Spindle Speed Range :
50-3000 r/min
Machinery Test Report :
Provided
Cnc Or Not :
CNC
Warranty :
1 Year
Max Turning Diameter :
14.5 inches
Showroom Location :
Indonesia, India, UAE
Keywords :
lathe
Type :
TURNING CENTER
Spindle Bore :
48mm
Spindle Nose Type :
A2-6
Weight :
4300kgs
Application :
Shafts, Valves, Fittings
Model Number :
XT05ZY
Rapid Feed Speed :
25m/min
Description
XT05ZY High-Precision CNC Turning Center with 5.5/7.5 KW Spindle Motor Power 48mm Spindle Bore and 25m/min Rapid Feed Speed
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings.
The XT Series combines stable casting, advanced CNC control, and thermal distortion resistance, ensuring consistent accuracy during continuous operation. It is widely used in sectors such as aerospace components, industrial automation parts, and mechanical equipment.
  • Slant-bed structure with servo turret for high-efficiency turning
  • Rigid body and precise feed system for stable long-cycle operation
  • Built for complex, high-volume part production across industries
XT05ZY Model Specifications
XT/ZY Series — Y-axis tool turret, without tailstock. ZY series models use a motor-directly-driven gantry Y-axis tool turret, ensuring Y-axis positioning accuracy, milling rigidity, and long-term machine accuracy.
Technical Specifications
Machine Type XT05ZY
Max. swing diameter 500mm
Max. machining diameter 260mm
Spindle nose A2-5
Spindle motor power 5.5/7.5 KW
Spindle bore 48mm
Max. spindle speed 6000r/min
Interpolation of ZY-axis travel ±50mm
X axis 230mm
Z axis 380mm
X axis rapid feed speed 25m/min
Z axis rapid feed speed 25m/min
Chuck Size 6"
Servo Tool Turret 12
OD tool size 20x20mm
Machine size (L x W x H) 1850x1470x1750mm
Standard weight 2800KG
Expandable Functions
Fully enclosed stainless steel inner protective layout. The entire series employs a fully-enclosed stainless steel inner protective sheet metal design. Its scientific layout, precision engineering, and superior sealing ensure reliable waterproof and oil-resistant performance during operation.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
