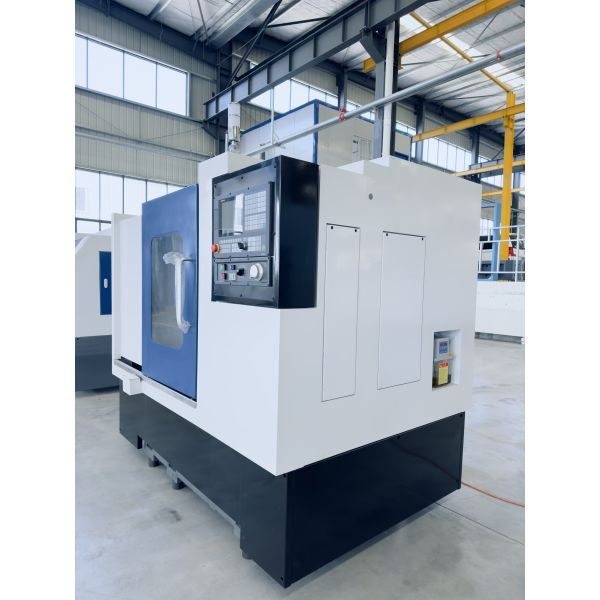

400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center
Specifications
Place of Origin :
Hubei, China
Brand Name :
ShangJie PM
Certification :
CE, ISO
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,,Western Union
Supply Ability :
45-60 days
X-Axis Travel :
400mm
Structure :
Slant Bed
X Axis Travel :
220mm
Axis :
3
Z Axis Travel :
510mm
X Axis Travel :
400mm
Turret Capacity :
12 tools
Max Turning Length :
1000mm
Coolant System :
Oil-based
Main Motor Power :
15 kw
Condition :
New
Machining Capacity :
Light Duty
Max Turning Diameter :
500mm
Z Axis Trave :
450mm
Type Of Tailstock :
Hydraulic *LM
Tool Post Stations :
8, 6
Spindle Bore Diameter :
ø80
Application :
Disc And Shaft Parts
Features :
High Rigidity, Turn-Mill Optional
Model Number :
XT06-360
Tool Turret :
Servo Tool Turret
Z-Axis Travel :
450mm
Machine Type :
XT06 Turn-Mill Center
Description
High-Precision CNC Turning Center with 400mm X Axis Travel 1000mm Max Turning Length and 450mm Z Axis Travel
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings. The XT Series combines stable casting, advanced CNC control, and thermal distortion resistance, ensuring consistent accuracy during continuous operation.
XT06-360 Features
  • Slant-bed structure with servo turret for high-efficiency turning
  • Rigid body and precise feed system for stable long-cycle operation
  • Built for complex, high-volume part production across industries
  • Servo tool turret, without tailstock (Optional servo power tool turret to achieve Turn-Mill function)
Machine Characteristics
The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.
Specifications
Machine TypeXT06
Max. swing diameter550mm
Max. machining diameter300mm
Spindle noseA2-6
Spindle motor power7.5/11 KW
Spindle bore72mm
Max. spindle speed4000r/min
X axis220mm
Z axis360mm
X axis rapid feed speed30m/min
Z axis rapid feed speed30m/min
X axis Max. torque of motor34.5N.m
Z axis Max. torque of motor34.5N.m
Hydraulic clamping10"
Servo Tool Turret8/12/16
OD tool size25x25mm
Machine size (L x W x H)1800x1420x1650mm
Standard weight2350KG
Expandable Functions
Turn-Mill
The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.
Programmable Tailstock
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional CNC lathe manufacturer located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have 10 years of experience in the auto parts industry.
Q: Can you provide a product catalog?
A: Contact our business manager for the required product catalog via email.
Q: About the terms and conditions of payment.
A: We confirm payment terms (FOB, CIF, CNF) during quotation. For mass production, we typically require 30% advance payment with balance upon bill of lading, accepting T/T or L/C.
Q: Product after-sales service scope and service period?
A: We provide a one-year warranty and lifetime 24-hour technical support.
