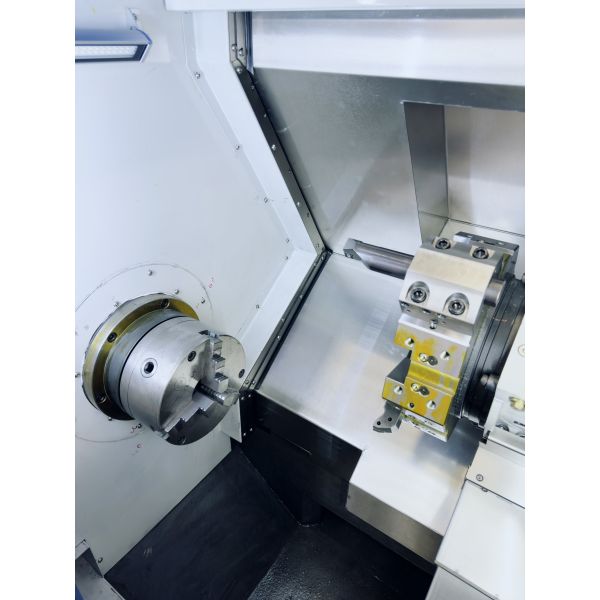

140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
140mm X Axis Travel CNC Turning Center 50-3000r/Min 3 Axes Precision Machining
Specifications
Chuck Size :
12 inch
Spindle Speed Step :
stepless
Place of Origin :
Hubei, China
Brand Name :
ShangJie PM
Certification :
CE, ISO
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,,Western Union
Supply Ability :
45-60 days
Number Of Axes :
3
Z Axis Travel :
975mm
Y-Axis Travel :
+/-52.5mm
Travel Y :
±52.5mm
Max Machining Diameter :
410mm
Features :
Heavy Cutting, Turn-Mill Optional
Structure :
Slant Bed Lathe
Spindle Speed Range :
50-3000 r/min
Applicable Industries :
Manufacturing Plant
Milling Heads :
4 Side Milling Heads
Max Swing Diameter :
620mm
Spindle Bore :
87mm
X Axis Travel :
140mm
Model Number :
XT08-410
Max Spindle Speed :
3000r/min
Tool Post Type :
Gang Type
Z Axis Trave :
450mm
Servo Tool Turret :
8/12 Stations
Milling Head :
(side)4 (nose)4
Machine Type :
XT08 Turning Center
Spindle Motor Power :
11/15KW
Machine Weight :
2700kg
After Warranty Service :
Online support
Tool Post Stations :
8
Rapid Traverse Rate :
20m/min
Description
XT08-410 高精度数控车床,X轴行程140mm,Y轴行程±52.5mm,4个侧铣头
ShangJie PM 的 XT 系列提供具有斜床和伺服刀架配置的高刚性 CNC 车床,专为苛刻的工业环境中的精密车削而设计.这些机器支持多刀具操作并具有快速分度功能,使其成为加工复杂轴,阀门和机械接头的理想选择.XT 系列结合了稳定的铸造,先进的 CNC 控制和抗热变形的能力,确保在连续操作期间保持一致的精度.
主要特点
  • 斜床结构带伺服回转头的高效车削
  • 刚性体和精密进给系统以实现稳定且长时间的运行
  • 为复杂,高产量零件生产而设计,适用于各个行业
型号:XT08-410
XT 系列 - 伺服刀架,无尾座(可选伺服动力刀架以实现车削-铣削功能.)
机器特性
XT系列机床是一种专门设计用于盘类和短轴类零件重型切削的机床.其特点是具有整体床身,床身设计加宽,加固且重心低,以减少重型切削过程中的振动.X方向45°倾斜床鞍布局有效抵抗水平和垂直方向的力,消除丝杠的间隙,并确保加工过程中刀具更好的几何对称性,减少刀具的侧向负载.
通过应用有限元分析(FEM),优化了铸件中加强肋的形状和位置,以实现最佳床身强度,使床身结构更适用于重型切削并延长工具的使用寿命.
规格
机器类型 XT08
最大摆动直径 620毫米
最大加工直径 410毫米
主轴鼻子 A2-8
主轴电机功率 11/15 千瓦
主轴孔 87毫米
最大主轴速度 3000转/分钟
X 轴 220毫米
Z 轴 410毫米
X轴快速进给速度 30米/分钟
Z轴快速进给速度 30米/分钟
X轴电机最大扭矩 34.5牛米
Z轴电机最大扭矩 34.5牛米
查克尺寸 12英寸
伺服工具塔 8/12
OD工具尺寸 25x25毫米
机器尺寸(长 x 宽 x 高) 1800x1580x1700毫米
标准重量 2700公斤
可扩展功能
车铣
整个XT系列都可以配备伺服动力工具塔,以实现车削和铣削复合功能的加工能力.
Programmable Tailstock
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional CNC lathe manufacturer located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have 10 years of experience in the auto parts industry.
Q: Can you provide a product catalog?
A: Contact our business manager for the required product catalog via email.
Q: About the terms and conditions of payment.
A: 我们在报价时确认付款条件(FOB,CIF,CNF).对于大批量生产,我们通常要求30%的预付款,余款在提单时支付,接受电汇或信用证.
问:产品售后服务范围和服务期限?
A: 我们提供一年保修和终身24小时技术支持.
