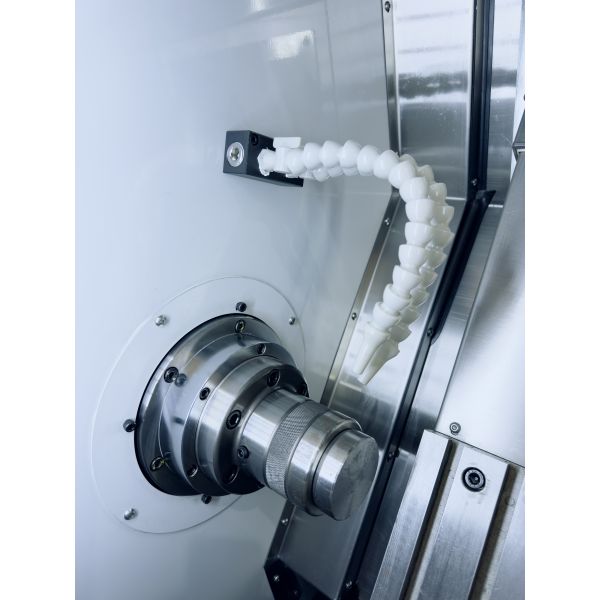

ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
ST32 CNC Turning Center 15KW 18.5KW Spindle Power 8 Tool Post Stations Machining
Specifications
Place of Origin :
Hubei, China
Brand Name :
ShangJie PM
Certification :
CE, ISO
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,,Western Union
Supply Ability :
45-60 days
Application :
Shafts, Bushings, Threaded Parts
Number of Axes :
2
Key Selling Points :
High Productivity
Core Components :
Motor
Max Swing Diameter :
470mm
Max Spindle Speed :
4000r/min
Structure :
Slant Bed Lathe
Cnc Or Not :
CNC
Machine Type :
ST32 Slant Bed Lathe
Tool Capacity :
12
Chuck Size :
10 inches
Tool Post Stations :
8
Bed Material :
HT300 Cast Iron
Spindle Motor Power :
11kw
Model Number :
ST32
Spindle Power :
15/18.5KW
Z Axis Travel :
500mm
Spindle Bore :
38mm
Features :
Linear Turret, High Rigidity
Machining Capacity :
Medium Duty
Port :
Any port in China
Condition :
New
Warranty :
12months
Description
ST32 数控车床,15/18.5KW 主轴功率,8 工位刀架,10 英寸卡盘尺寸
ShangJie PM 的 ST 系列斜床数控车床配备线性刀塔系统,具有更高的刚性和切削精度.这些机器专为中到高产量的生产设计,能够以高速度提供出色的切屑排除和稳定加工.
主要特点
  • 倾斜床结构用于高效的芯片流动和稳定运行
  • 线性炮塔使工具快速对位和顺滑的完成
  • 理想用于批量生产环境中的高精度车削
  • 非常适合加工轴,衬套和螺纹部件
  • 适用于汽车零部件,工业工具和五金制造
施工细节
  • Casting Material: Machine bed constructed with HT300 grade cast iron as a monolithic casting, processed through vibration aging and double tempering treatments to eliminate residual stresses
  • Bed Structure: Monoblock design with low center of gravity, optimized using Finite Element Analysis (FEM) for maximum rigidity in heavy-duty cutting operations
Technical Specifications
<
Machine Type ST32
Max. swing diameter 470mm
Max. machining diameter on the saddle 120mm
Max. bar through diameter 28mm
Spindle nose A2-4
Spindle motor power 4KW
Spindle bore 38mm
Max. spindle speed 4000r/min
X axis 330mm
Z axis 270mm
X axis rapid feed speed 25m/min
Z axis rapid feed speed 25m/min
X axis Max. torque of motor 18N.m
Z axis Max. torque of motor 18N.m
Manual chuck 6'
Hydraulic clamping Chuck Size 6'
4-station electric knife holder OD tool size: 16x16mm
机器尺寸(长 x 宽 x 高) 1500x1350x1600毫米
标准重量 1500千克
可扩展功能
模块化动力头: 可根据加工要求添加定制的动力头配置,实现钻孔,铣削,攻丝和其他特征加工操作.
车铣能力: 可配置伺服转塔或多个动力头,以实现高端车铣能力,满足复杂的加工需求,同时尽量控制设备成本.
常见问题
问:制造商还是贸易公司?公司位于哪里?
A: 我们是一家专业的数控车床制造商,位于湖北省十堰市.
问:您在这个市场已经参与了多久?
A: 我们已经从事汽车零部件行业10年了.
问:你能提供产品目录吗?
A: 联系我们的商务经理,我们将把您需要的产品目录发送到您的邮箱.
问:关于付款条款.
A: 当您报价时,我们将与您确认贸易方式(FOB,CIF,CNF等).对于大规模生产,我们通常要求30%的预付款,余款在提单时支付.付款方式主要是电汇,但也可以接受信用证.
问:产品售后服务范围和服务期限?
A: 我们提供一年保修和24小时终身技术支持.
