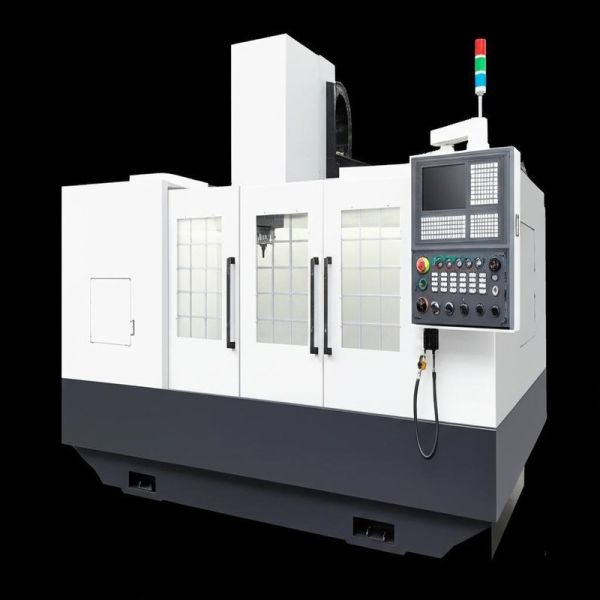

HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle
HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle
HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle
HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle
Specifications
Place of Origin :
China
Certification :
CE ISO certification
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,,Western Union
Supply Ability :
45-60 days
Table Size :
600mm x 400mm
Weight :
6,500kg
Spindle Speed :
10,000 RPM
Type :
Vertical Machining Center
Power Supply :
3 Phase, 220V/380V/415V
Spindle Taper :
BT40
Controller :
Fanuc/Mitsubishi/Siemens
Max Load Capacity :
300kg
Warranty :
1 year
Number Of Axes :
3
Tool Capacity :
24
Rapid Traverse Rate :
30m/min
Dimensions :
2,500mm x 2,000mm x 2,500mm
Description

CNC Vertical Center

ShangJie PM’s CNC vertical machining centers are built for precision milling, drilling, and tapping operations across a wide range of materials. With a vertical spindle and compact structure, these machines are well-suited for producing molds, plates, metal housings, and high-precision mechanical parts. Equipped with linear guideways, rigid castings, and advanced control systems, they deliver fast positioning accuracy and superior surface finish. CNC vertical centers are widely used in mold making, automotive, aerospace, and electronics industries where high-speed, stable performance is essential. Optional tool changers and chip removal systems enhance productivity in both small-batch and continuous production lines.

  • Vertical design enables efficient chip flow and easy setup

  • High-speed spindle and precise axes ensure tight tolerances

  • Ideal for mold parts, structural components, and metalworking shops


VS series is a heavy-duty vertical machining center. All models adopt 6 sliders on the X-axis, 4 roller linear guides with 8 sliders on the Y-axis, and the Z-axis column is equipped with an increased installation foot span to make the base wider and provide a solid foundation for the machine tool's processing performance.


Description

  • Machine Structure

VS series is professionally designed and manufactured with the main principles of low center of gravity, anti-distortion, anti-creep, heavy cutting, and high material removal rate.
Finite element analysis (FEM) is used to optimize the shape and position of the reinforcing ribs of the castings, making the bed strength optimal. Additionally, special reinforcement structures are applied to the Y-axis base and Z-axis column to make the bed structure more suitable for heavy cutting and increase the tool life.
The machine tool castings are made of HT300 high-grade material, which features high strength, strong resistance to deformation and excellent shock absorption capacity. After vibration aging and secondary tempering processes, the stress is eliminated, providing excellent dimensional stability and durability. This ensures that the machine tool maintains stable precision over a long period of use.

 HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle
VS series is equipped with a standard spindle counterweight system, which can reduce the load on the Z-axis lead screw, decrease heat generation, and minimize the impact of thermal elongation on the machining accuracy of the machine tool. This enhances the machining accuracy of the machine tool and the surface finish of the workpiece. HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle

The Z-axis column is a large span. All cast components are made of HT300 material, achieving superior vibration damping performance, support rigidity and excellent stability.

 HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle


■ Specifications

Machine Type VS150
Workbench size 1700x800 mm
Workbench T-slot (number - size * pitch) 5-18x150 mm
Max. load capacity of the workbench 1600KG
X-axis travel distance 1510mm
Y-axis travel distance 810mm
Z-axis travel distance 710mm
Distance from the center of spindleto the guide rail of the column 850mm
Distance from the spindle face tothe worktable surface 130-840 mm
Guide rail form Precision Grade P roller-type linear guide
X,Y,Z fast movement speed 30m/min
X axis Max. torque of motor 69N.m
Y axis Max. torque of motor 85.2N.m
Z axis Max. torque of motor 85.2N.m
Max. spindle speed 8000/12000 rpm
Spindle taper hole BT40 (BT50 Optional)
Spindle motor power 15/18 KW
Tool magazine capacity Disc-Type 24Tools
Max. weight of cutting tools 8KG(BT40) / 15KG(BT50)
Air source pressure 0.5-0.8 MPa
Machine size (L x W x H) 3200x2650x2800mm
Standard weight 15000KG



■ Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi

HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed SpindleHT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle		 High-quality spindle, imported bearings



HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle		 THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type linear guide

HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle		 THK, PMI, HIWIN C3 grade Ø50 precision ground ball screw

HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle
High-quality tool clamping cylinder
HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle		 NSK, SKF, FAG P4 grade imported angular contactpaired bearings


HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle		 Precision high-rigidity coupling




HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle		 Imported high-torque synchronous belts


HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle
High-quality disc-type /Umbrella-type ATC Tool magazine


HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle		 Standard equipped with chain-typechip conveyor and small iron chip cart.

HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle


Company advantages

Our company has passed the quality system certification. We have independent design and R&D capabilities. Our company is equipped with large gantry machining centers, five-axis machining centers, vertical machining centers and other large-scale processing equipment. We have a dedicated after-sales service team, committed to providing customers with convenient and efficient after-sales service.

Product advantages

Our machine tools use HT300 high-grade castings with an ergonomic design. We select imported functional components, ensuring long-term dimensional stability without deformation. We have independent design and R&D capabilities, completing all processes from casting to sheet metal fabrication in-house, allowing for quality control.

Application scenarios

It is applicable to mechanical processing fields such as automotive manufacturing, aerospace, and shipbuilding

FAQ:

1,Q:Manufacturer or trading company? Where is the company located?

A:We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.

2,Q:How long have you been involved in this market?

A:We have been engaged in the auto parts industry for 10years

3,Q:Can you provide a product catalog?

A:Contact our business manager, we will send the product catalog you need to your mailbox

4,Q:About the terms and conditions of payment.

A:When you quote, we wil confim with you the trading method,FOB,CIF CNF, o other methods. in mass production we usull pay 30% advance payment frst then seethe balance of the bill of lading.Most of the payment methods are T/T, of course,L/C is also acceptable.

5,Q:Product after-sales service scope and service period

A:We offer a one-year warranty and 24-hour lifetime technical support
