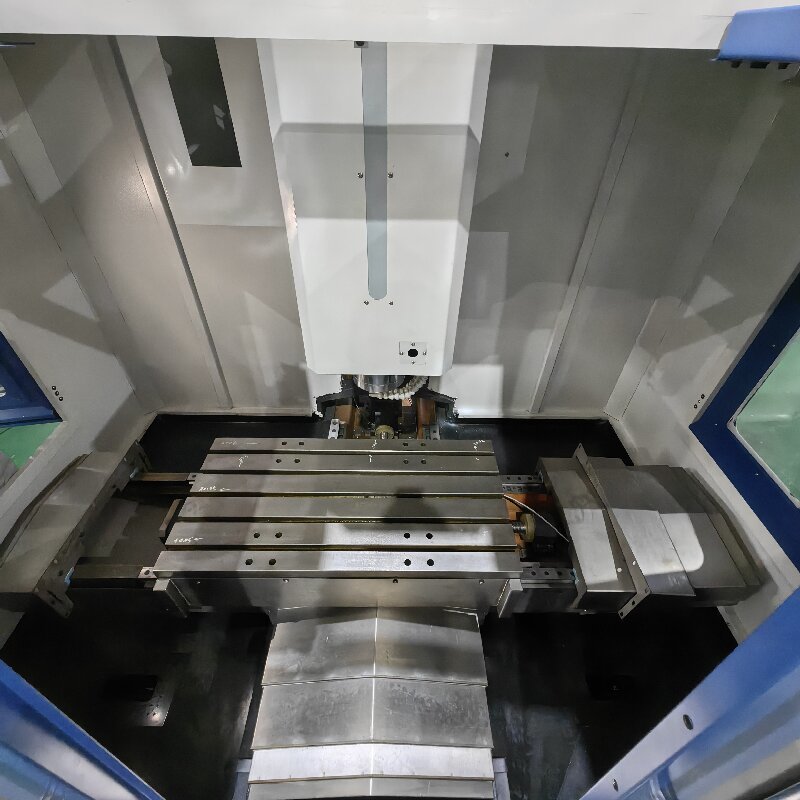

VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
VMC540 Vertical Machining Center Metal Working Machine CNC Milling 12000 RPM BT40 Spindle
Specifications
positioning accuracy :
±0.005
video outgoing-inspection :
Provided
repeatability (x/y/z) (mm) :
±0.005
min. time of tool change(s) :
3
warranty :
1 Year
MOQ :
1
Features :
High-Speed, Flawless Surface Finish
voltage :
380 V
type :
VERTICAL
table travel (y) (mm) :
410
machinery test report :
Provided
Place of Origin :
Hubei, China
Model Number :
VMC540
table travel (z) (mm) :
500
Rapid Feed :
10/30 m/min
tool magazine capacity :
24
Price :
$9,800
Tool Change Time :
3 Seconds
Application :
CNC Milling, Metal Working
dimension(l*w*h) :
158*158*195
no. of spindles :
1
weight (t) :
4.5
table size :
700*400
cnc control system :
KND
spindle taper :
BT40
rapid feed speed :
10 - 30
Spindle :
BT40 12000RPM
table travel (x) (mm) :
510
range of spindle speed :
8000 - 12000
max. table load(kg) :
600
machining capacity :
Heavy Duty
Machine Weight :
4.5 Tons
key selling points :
Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, High Productivity, Easy To Operate, Flexible Manufacturing, Long Service Life, Eco-Friendly
Machine Type :
VMC540 Vertical Machining Center
Description
Product descriptions from the supplier

The combination of a 3 second tool change and 10/30 m/min rapid feeds minimizes cycle times and elevates daily productivity.

The high-speed 12,000 RPM BT40 spindle delivers flawless surface finishes, reducing post-processing and manual polishing steps.

Complete investment security with an included Machinery Test Report, full Video Outgoing-Inspection, and a reliable 1Year Warranty.

Weighing a solid 4.5 tons, this VMC resists structural deflection far better than lighter competitors, extending tool life and accuracy.

About this supplier

Welcome to Shangjie Precision Machinery, a premier manufacturer specializing in high-performance, heavy-duty CNC machine tools. Located in Hubei, China-a powerhouse hub for industrial engineering-we design, engineer, and deliver world-class vertical machining centers (VMC), CNC lathes, and large-scale gantry machining solutions for global markets.

With years of deep industry expertise, Shangjie Precision Machinery is dedicated to bridging the gap between rigorous industrial demands and high-precision execution. We serve diverse sectors requiring heavy-duty capabilities, including automotive manufacturing, aerospace components, precision mold making, and heavy equipment engineering.
