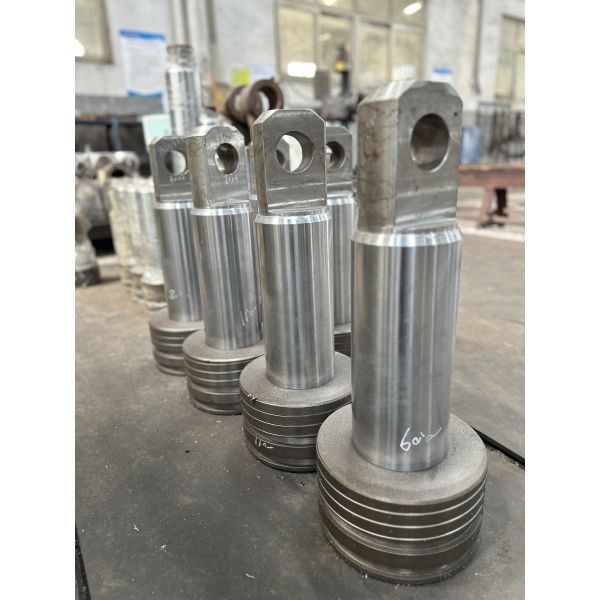

Hardened Chrome Solid Shaft for Automation and Linear Motion Systems
Hardened Chrome Solid Shaft for Automation and Linear Motion Systems
Specifications
Brand Name :
Zhisheng
Model Number :
20#
Place of Origin :
China
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
High-frequency quenching :
HRC50-60
Surface hardness :
800-1150HV
Surface treatment :
Chromium plating,medium and high frequency induction hardening,quenching and tempering,quenching andtempering+medium and high frequency induction hardening
Salt spray test :
Level 9150-300 hours
Weldability :
good
Packing :
After rust prevention oil treatment,each piece is wrapped in a waterproof paper tube/wooden box
Quality certificate :
Provide product quality reports,chromium plating thickness reports,salt spray test reports,etc
Quenching and tempering hardness :
HB220-360
Straightness :
≤0.1mm/m
Surface roughness :
≤0.05μm
Chromium plating thicknes :
0.02mm-0.50mm
Outer diameter tolerance :
Other customizable options)
Length :
L200-20000mm
Size :
φ20-φ500mm
Description
Hardened Chrome Solid Shaft for Automation and Linear Motion Systems
Product Overview

The Hardened Chrome Solid Shaft is engineered for automation and linear motion systems where durability and smooth operation are essential. Through advanced hard chrome plating and precision grinding, the shaft achieves exceptional surface hardness and wear resistance, ensuring stable and precise motion control.

Product Specifications
Attribute Value
Material 45# Steel / 40Cr / 42CrMo / 304 / 316 Stainless Steel
Hard Chrome Thickness 0.02 - 0.05 mm
Surface Hardness HRC 55-65
Surface Roughness ≤ 0.03 μm
Straightness ≤ 0.1 mm/m
Plating Adhesion ≥ 50 N/mm²
Corrosion Resistance Salt Spray Test ≥ 120 hours
Length Range 200 mm - 7000 mm
Diameter Range φ10 mm - φ150 mm
Tolerance f7 / h6
Key Features
  • Ultra-hard chrome-plated surface for extended service life
  • High resistance to wear, corrosion, and fatigue
  • Excellent dimensional accuracy for linear motion precision
  • Compatible with bearings, bushings, and actuators
  • Custom machining and induction hardening available
Applications
  • Linear guides and automation systems
  • Hydraulic and pneumatic cylinders
  • Robotics and motion control devices
  • Industrial conveyors and precision actuators
Customer Benefits
  • Reduced friction ensures longer component lifespan
  • Enhanced accuracy in repetitive motion applications
  • Reliable performance in high-load or high-speed systems
  • OEM & ODM support for custom engineering
Chemical Composition
Hardened Chrome Solid Shaft for Automation and Linear Motion Systems Hardened Chrome Solid Shaft for Automation and Linear Motion Systems
