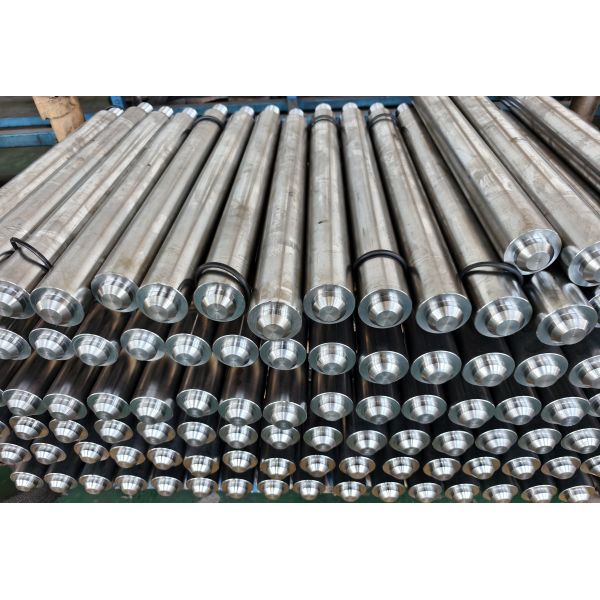

Heat Treated Alloy Solid Shaft for Construction and Agricultural Machinery
Heat Treated Alloy Solid Shaft for Construction and Agricultural Machinery
Specifications
Brand Name :
Zhisheng
Model Number :
20#
Place of Origin :
China
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
High-frequency quenching :
HRC50-60
Surface hardness :
800-1150HV
Surface treatment :
Chromium plating,medium and high frequency induction hardening,quenching and tempering,quenching andtempering+medium and high frequency induction hardening
Salt spray test :
Level 9150-300 hours
Weldability :
good
Packing :
After rust prevention oil treatment,each piece is wrapped in a waterproof paper tube/wooden box
Quality certificate :
Provide product quality reports,chromium plating thickness reports,salt spray test reports,etc
Quenching and tempering hardness :
HB220-360
Straightness :
≤0.1mm/m
Surface roughness :
≤0.05μm
Chromium plating thicknes :
0.02mm-0.50mm
Outer diameter tolerance :
Other customizable options)
Length :
L200-20000mm
Size :
φ20-φ500mm
Description
Heat Treated Alloy Solid Shaft for Construction and Agricultural Machinery
Product Overview
The Heat Treated Alloy Solid Shaft is designed for demanding construction and agricultural applications, combining strength, impact resistance, and wear durability. Its robust alloy composition and heat-treated structure make it ideal for continuous heavy-duty use.
Product Specifications
Attribute Value
Material 40Cr / 42CrMo / 4140 / SCM440
Heat Treatment Quenched and Tempered
Hardness HRC 28-40
Surface Roughness ≤ 0.08 μm
Straightness ≤ 0.1 mm/m
Tensile Strength ≥ 900 MPa
Yield Strength ≥ 700 MPa
Diameter Range φ20 mm - φ500 mm
Length Range 300 mm - 8000 mm
Certification ISO 9001 / CE / SGS
Key Features
  • High strength and excellent load capacity
  • Wear-resistant and fatigue-resistant alloy steel
  • Stable under high torque and vibration
  • Custom machining and threading options
Applications
  • Agricultural and construction machinery
  • Earth-moving equipment
  • Drilling and mining tools
  • Power transmission components
Customer Benefits
  • Extended service life under high load conditions
  • Reduced downtime and maintenance costs
  • Fully customizable to meet specific equipment needs
Chemical Composition
Heat Treated Alloy Solid Shaft for Construction and Agricultural Machinery Heat Treated Alloy Solid Shaft for Construction and Agricultural Machinery
