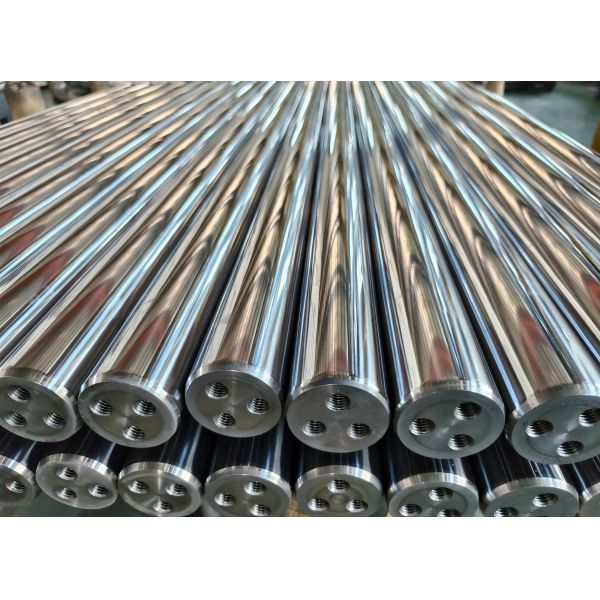

Chrome Plated Solid Shaft for Hydraulic and Pneumatic Cylinders
Chrome Plated Solid Shaft for Hydraulic and Pneumatic Cylinders
Specifications
Brand Name :
Zhisheng
Model Number :
20#
Place of Origin :
China
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
High-frequency quenching :
HRC50-60
Surface hardness :
800-1150HV
Surface treatment :
Chromium plating,medium and high frequency induction hardening,quenching and tempering,quenching andtempering+medium and high frequency induction hardening
Salt spray test :
Level 9150-300 hours
Weldability :
good
Packing :
After rust prevention oil treatment,each piece is wrapped in a waterproof paper tube/wooden box
Quality certificate :
Provide product quality reports,chromium plating thickness reports,salt spray test reports,etc
Quenching and tempering hardness :
HB220-360
Straightness :
≤0.1mm/m
Surface roughness :
≤0.05μm
Chromium plating thicknes :
0.02mm-0.50mm
Outer diameter tolerance :
Other customizable options)
Length :
L200-20000mm
Size :
φ20-φ500mm
Description
Chrome Plated Solid Shaft for Hydraulic and Pneumatic Cylinders
Product Overview

The Chrome Plated Solid Shaft is built for hydraulic and pneumatic applications that demand corrosion resistance, smoothness, and durability. Its hard chrome coating ensures minimal friction, superior wear resistance, and extended service life.

Product Specifications
Attribute Value
Material CK45 / C45E / 42CrMo4
Surface Treatment Hard Chrome Plated
Hardness HRC 55-65
Surface Roughness ≤ 0.02 μm
Straightness ≤ 0.05 mm/m
Tensile Strength ≥ 850 MPa
Coating Thickness 20-30 μm
Diameter Range φ10 mm - φ250 mm
Length Range 100 mm - 6000 mm
Certification ISO 9001 / SGS / CE
Key Features
  • High surface hardness and mirror finish
  • Excellent corrosion and wear resistance
  • Optimized for hydraulic and pneumatic seals
  • Low friction coefficient and stable performance
Applications
  • Hydraulic piston rods
  • Pneumatic actuators
  • Press machines and cylinders
  • Material handling systems
Customer Benefits
  • Extended operational life of sealing components
  • Smooth movement and improved efficiency
  • Reduced downtime and maintenance requirements
Chemical Composition
Chrome Plated Solid Shaft for Hydraulic and Pneumatic Cylinders Chrome Plated Solid Shaft for Hydraulic and Pneumatic Cylinders
