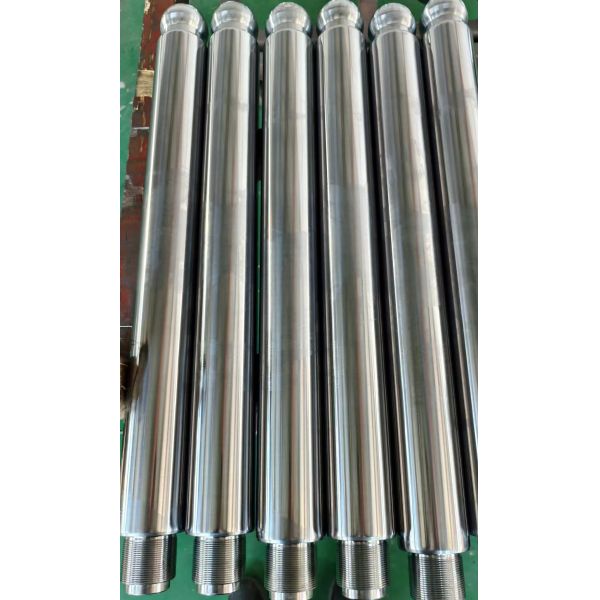

Roughness 0.05um Hydraulic Cylinder Shaft Solid Shaft 200mm - 20000mm
Roughness 0.05um Hydraulic Cylinder Shaft Solid Shaft 200mm - 20000mm
Specifications
Model Number :
20#
Place of Origin :
China
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
High-frequency quenching :
HRC50-60
Surface hardness :
800-1150HV
Surface treatment :
Chromium plating,medium and high frequency induction hardening,quenching and tempering,quenching andtempering+medium and high frequency induction hardening
Salt spray test :
Level 9150-300 hours
Weldability :
good
Packing :
After rust prevention oil treatment,each piece is wrapped in a waterproof paper tube/wooden box
Quality certificate :
Provide product quality reports,chromium plating thickness reports,salt spray test reports,etc
Quenching and tempering hardness :
HB220-360
Straightness :
≤0.1mm/m
Surface roughness :
≤0.05μm
Chromium plating thicknes :
0.02mm-0.50mm
Outer diameter tolerance :
Other customizable options)
Length :
L200-20000mm
Size :
φ20-φ500mm
Brand Name :
Zhisheng
Description

Industrial Precision Solid Shaft for High-Load Power Transmission Systems

Product Overview

The Industrial Precision Solid Shaft is engineered for factories and machinery manufacturers seeking a highly durable, accurately machined, and stable power-transmission solution. Built from premium alloy steel and stainless steel, this shaft offers excellent tensile strength, superior rigidity, and smooth rotational performance. Its advanced heat-treatment process ensures long-lasting wear resistance, making it ideal for motors, reducers, conveyors, and automated production lines.

Designed to meet demanding industrial environments, this solid shaft maintains dimensional accuracy under heavy loads, high torque, and continuous operation, making it a reliable choice for OEM applications and equipment upgrades.

Product Specifications

Attribute Value
Material Options 45# Steel / 40Cr / 42CrMo / SCM440 / 304 / 316 / 440C
Heat Treatment Quenched & Tempered / Induction Hardened / Nitrided
Hardness HRC 30–60 (Adjustable)
Diameter Range 8–260 mm
Length Range 200–7500 mm
Surface Roughness Ra ≤ 0.2–0.6 μm
Straightness ≤ 0.02 mm/m
Tolerance Options h6 / h7 / g6 / Custom
Processing Options CNC Turning / Keyway Cutting / Thread Ends / Drilled Ends
Certification ISO 9001 / CE / RoHS

Key Features

  • High-strength alloy construction ideal for heavy-load power transmission

  • Extremely stable rotational accuracy for CNC and automation systems

  • Wear-resistant hardening options extend operational lifespan

  • Low vibration and noise with precision-ground surfaces

  • Custom machining options for OEM motor shafts, gearbox shafts, and drive shafts

  • Corrosion-resistant materials available for outdoor or harsh environments

Applications

  • Electric motors & servo drives

  • Gear reducers and industrial gearboxes

  • Automation equipment and robotic systems

  • Conveyor lines and manufacturing machinery

  • Pumps, compressors, blowers, and rotating units

  • Heavy industrial, mining, and construction equipment

Customer Benefits

  • Reliable high-load performance for continuous industrial operation

  • Improved machine stability and torque transmission efficiency

  • Reduced maintenance cost due to enhanced wear resistance

  • Custom dimensions, heat treatments, and end machining available

  • Optimized for high-ranking SEO keywords such as solid shaft, industrial shaft, power transmission shaft, and precision machined shaft

Chemical Composition
