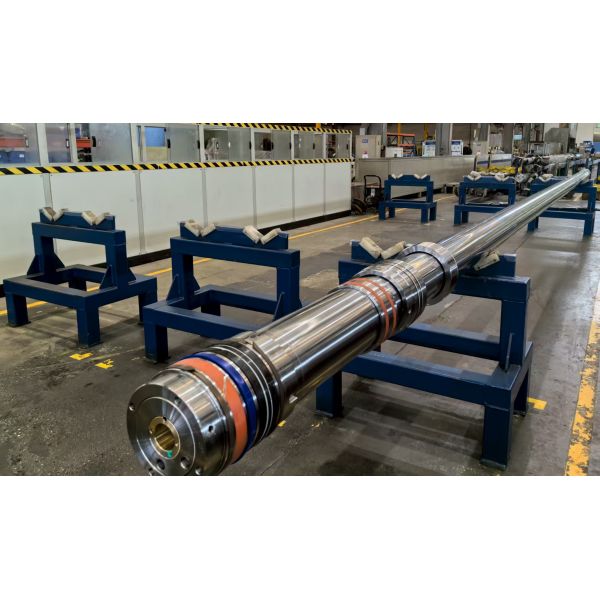

Heavy Duty Piston Rod Assembly Wear Resistant Connecting Rod And Piston Assembly
Heavy Duty Piston Rod Assembly Wear Resistant Connecting Rod And Piston Assembly
Specifications
Place of Origin :
China
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
High-frequency quenching :
HRC50-60
Surface hardness :
800-1150HV
Surface treatment :
Chromium plating,medium and high frequency induction hardening,quenching and tempering,quenching andtempering+medium and high frequency induction hardening
Salt spray test :
Level 9150-300 hours
Weldability :
good
Packing :
After rust prevention oil treatment,each piece is wrapped in a waterproof paper tube/wooden box
Quality certificate :
Provide product quality reports,chromium plating thickness reports,salt spray test reports,etc
Quenching and tempering hardness :
HB220-360
Straightness :
≤0.1mm/m
Surface roughness :
≤0.05μm
Chromium plating thicknes :
0.02mm-0.50mm
Outer diameter tolerance :
Other customizable options)
Length :
L200-20000mm
Size :
φ20-φ500mm
Brand Name :
Zhisheng
Description

1. Product Overview

The Piston Rod Assembly ensures efficient linear power transmission in multiple industries, combining strength, precision, and reliability. It is supplied as a complete, ready-to-install component.

2. Material & Process

  • Carbon steel, alloy steel, or stainless steel rod body

  • Quenched, tempered, and surface treated

  • Assembled with seals, nuts, piston heads, and connectors

3. Features & Advantages

  • Simplified installation and replacement

  • Optimized for high-load and long-stroke cylinders

  • Compatible with standard and customized hydraulic systems

  • Designed to meet international quality standards

4. Application Areas

  • Automotive shock absorbers and lifting systems

  • Hydraulic and pneumatic cylinders

  • Agricultural and forestry equipment

  • Renewable energy (wind and solar hydraulic systems)

5. Customization Options

  • Special materials and coatings for different environments

  • End fittings: eye, clevis, flange, or spherical joint

  • Seal options for low temperature, high temperature, or chemical resistance

6. Example Specifications

  • Diameter range: 10–250 mm

  • Length: up to 8000 mm

  • Hardness: HRC 35–55 (adjustable)

  • Surface finish: Ra ≤ 0.4 μm

Chemical Composition
