10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
Specifications
Brand Name :
SHACMAN
Place of Origin :
SHAANXI,XIAN
MOQ :
1
Price :
Negotiable
Delivery Time :
35-55days
Condition :
New
Steering :
Left, ZF technology
Horsepower :
340 - 450hp
Emission Standard :
Euro 2
Segement :
Heavy truck
Market Segement :
Engineering transportation
Engine Brand :
Weichai
Fuel Type :
Diesel
Engine Capacity :
> 8L
Cylinders :
6
Gear Box Brand :
FAST
Transmission Type :
Manual
Forward Shift Number :
10
Reverse Shift Number :
2
Maximum Torque(Nm) :
1500-2000Nm
Dimensions (L x W x H) (mm) :
8500x2600x3450mm
Cargo Tank Dimension :
5800x2300x1500mm
Cargo Tank length :
5.3-6.2M
Gross Vehicle Weight :
10-50T
Capacity (Load) :
21 - 30T
Fuel Tank Capacity :
300-400L
Drive Wheel :
6X4
Passengers :
2
Driver's Seat :
Air suspension
Rear Camera :
None
Touch Screen :
Yes
Air Conditioner :
Manual
Tire Number :
10
After-sales Service Provided :
Video Technical Support, Online support
Product name :
50T Payload Capacity Underground Mining Dumper Truck for Sale
Wheelbase :
3775+1400mm/1800+3575+1400mm
Max. Speed :
75km/h
Front/Rear Axle :
HANDE
Clutch :
430 diaphragm clutch
Suspension :
Front and rear multi-leaf spring, four main plates+four horse bolts
Tires :
12.00R20
Cab :
Standard flat cab(Optional)
Warranty :
12 Months
Description

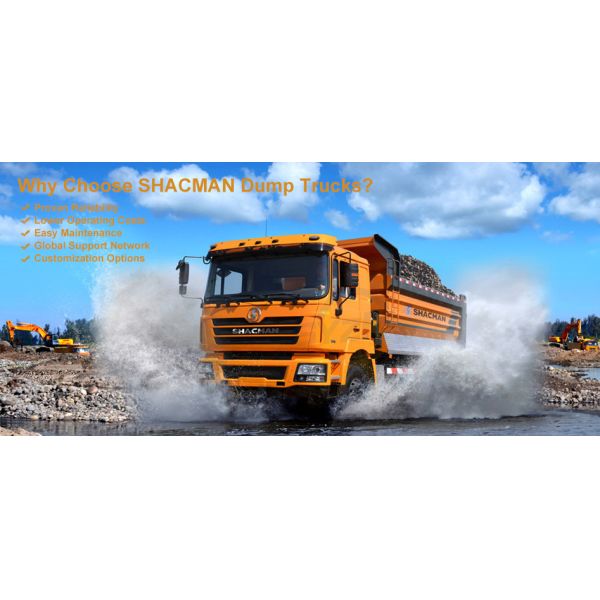

SHACMAN H3000 Series Dump Trucks
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck

SHACMAN dump trucks are engineered for high-intensity working environments including mines, construction sites, ports, and water conservancy projects. These vehicles feature exceptional load capacity, efficient unloading capabilities, and proven reliability and durability.

Available Configurations
  • Truck chassis: SHACMAN (Alternative brands: Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, JAC)
  • Driving type: 4x2, 6x4, 8x4 configurations
  • Load capacity: Standard (25-40t), Composite (40-60t), Heavy (60-80t), Extra Heavy (>80t)
  • Applications: Urban construction waste, road transportation, engineering mining, construction materials
  • Lifting method: Front lift (primary), side lift, and center lift options
  • Cargo Box Dimensions: Customizable based on client specifications
Technical Specifications
Feature 6x4 Model 8x4 Model
Driving Style Left hand drive/Right hand drive
Wheelbase 3775+1400mm 1800+3575+1400mm
Max. Speed 75km/h 75km/h
Fuel Type Diesel
Engine Model WEICHAI WEICHAI
Transmission FAST FAST
Power 300HP 375HP
Emission Standard EURO II EURO V
Front/Rear Axle HANDE
Steering ZF technology
Suspension Front and rear multi-leaf spring, four main plates+four horse bolts
Frame 850x300(8+7)mm
Fuel tank 400L Aluminum alloy
Brakes Running brake: Dual circuit compressed air brake
Parking brake: Air discharging with spring control
Auxiliary brake: Engine exhaust brake
Cabin Standard flat cab (Optional)
H3000 6x4 10 Wheels Dump Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
H3000 8x4 12 Wheels Dump Truck
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
Shipping & Delivery
  • Export Packaging: Weather-proof covering and secure loading
  • Shipping Methods: RORO, container, or bulk vessel
  • Delivery Time: 20-40 days after order confirmation
  • Documentation support: Complete export documentation provided
10 Tires Volume Sand Tipper Dump Truck 20 30 40 50 Ton Payload Capacity Underground Mining Dumper Truck
Frequently Asked Questions
What is the warranty period for SHACMAN dump trucks?
We offer a standard 12-month warranty or 30,000 km (whichever comes first), with extended options available.
Can you provide right-hand drive versions?
Yes, we can supply both left-hand and right-hand drive configurations.
Do you provide custom body sizes?
Yes, we can customize body sizes from 20m³ to 30m³ based on your requirements.
What's the maximum gradeability?
Our dump trucks can handle gradients up to 35% depending on load conditions.
Do you provide operator training?
Yes, we provide comprehensive operation and maintenance training.
What payment terms do you accept?
We accept T/T, L/C, and other flexible payment methods.
What's the delivery time for bulk orders?
For orders of 10+ units, delivery time is 45-60 days.
Can you provide mining-specific configurations?
Yes, we offer reinforced frames, heavy-duty axles, and enhanced cooling systems for mining applications.
Selection Guide: Define Your Needs
Primary Cargo Type
  • Sand, gravel, earth: Heavy cargo requiring high vehicle load-bearing capacity and strength
  • Coal, ore: Heavy, potentially corrosive cargo requiring high wear resistance
  • Construction waste, muck: Contains debris requiring high strength and sometimes covered tops
  • Grain, feed: Lightweight bulk cargo requiring high volume and sealing
Cargo Weight and Volume

Determine rated load mass (tonnage) and body volume (cubic meters) based on your usual cargo. Ensure compliance with standardized legal load weights.

Road Conditions
  • Highway/Urban roads: Requires environmental compliance, U-shaped containers for clean unloading
  • Construction sites, mining areas: Harsh conditions requiring high passability and reliability
  • Mountainous/Hilly areas: Requires high engine horsepower, torque, and brake cooling systems
Budget Range

Dump truck prices range from $30,000+ to $97,000-$120,000, depending on chassis brand, engine, body size, and strength requirements.

Key Questions for Suppliers
Chassis and Powertrain
  • Chassis brand and model options
  • Engine horsepower requirements based on terrain and load
  • Transmission model and gear count for durability
  • Hydraulic retarder availability for mountainous driving
  • Axle specifications and gear ratio optimization
  • Chassis reinforcement details including frame and suspension
Superstructure (Body & Hoisting System)
  • Body dimensions and material specifications
  • U-shaped environmentally friendly container options
  • Hoisting mechanism types (front tipping, middle tipping)
  • Hydraulic system configuration and performance metrics
