SHACMAN F3000 6x4 Foam Fire Truck 6000L Water 3000L Foam Tank Weichai WP10 340HP CB10/60 Fire Pump
SHACMAN F3000 6x4 Foam Fire Truck 6000L Water 3000L Foam Tank Weichai WP10 340HP CB10/60 Fire Pump
SHACMAN F3000 6x4 Foam Fire Truck 6000L Water 3000L Foam Tank Weichai WP10 340HP CB10/60 Fire Pump
SHACMAN F3000 6x4 Foam Fire Truck 6000L Water 3000L Foam Tank Weichai WP10 340HP CB10/60 Fire Pump
SHACMAN F3000 6x4 Foam Fire Truck 6000L Water 3000L Foam Tank Weichai WP10 340HP CB10/60 Fire Pump
SHACMAN F3000 6x4 Foam Fire Truck 6000L Water 3000L Foam Tank Weichai WP10 340HP CB10/60 Fire Pump
Specifications
Water Monitor :
PL32 water/foam monitor, remote control, range about 60 m
Drive Type :
6x4
Max Speed :
95 km/h
Price :
Negotiable
Wheelbase :
4300+1350 mm
Tank Material :
Q235 carbon steel, anti-corrosion coating inside
Brand Name :
SHACMAN
Supply Ability :
500 Units per Month
Packaging Details :
Export standard. Truck rolls on its own wheels for RoRo shipment; accessories and spare parts in plywood cases.
Transmission :
Fast Gear 9JS135T-B manual, 9 forward 1 reverse
Tyres :
12.00R20, 6 units plus 1 spare
Overall Dimensions :
About 10200 x 2500 x 3450 mm
Rear Axle :
16T, MAN technology, double drive
Fire Pump :
CB10/60 low pressure pump, 60 L/s at 1.0 MPa
Outlets :
4 side discharge outlets, DN80
Certification :
ISO 9001:2015, CCC
Front Axle :
7.5T, MAN technology
Pump Drive :
Power take-off from chassis engine
Cab :
F3000 wide cab, 2 doors, 3 seats, air conditioning
Payment Terms :
T/T,L/C
Foam Proportioner :
Automatic, 3% and 6% adjustable
Engine :
Weichai WP10.340E22 diesel, 340 hp, Euro 2
Foam Tank Capacity :
3000 L
Delivery Time :
30 working days after deposit
Water Tank Capacity :
6000 L
MOQ :
1 Unit
Chassis Model :
SHACMAN F3000 6x4 fire fighting chassis
Gross Weight :
About 25000 kg (configuration dependent)
Model Number :
F3000 6x4 (6000L water + 3000L foam)
Place of Origin :
Shaanxi, China
Brake System :
Dual circuit air brake with ABS
Description

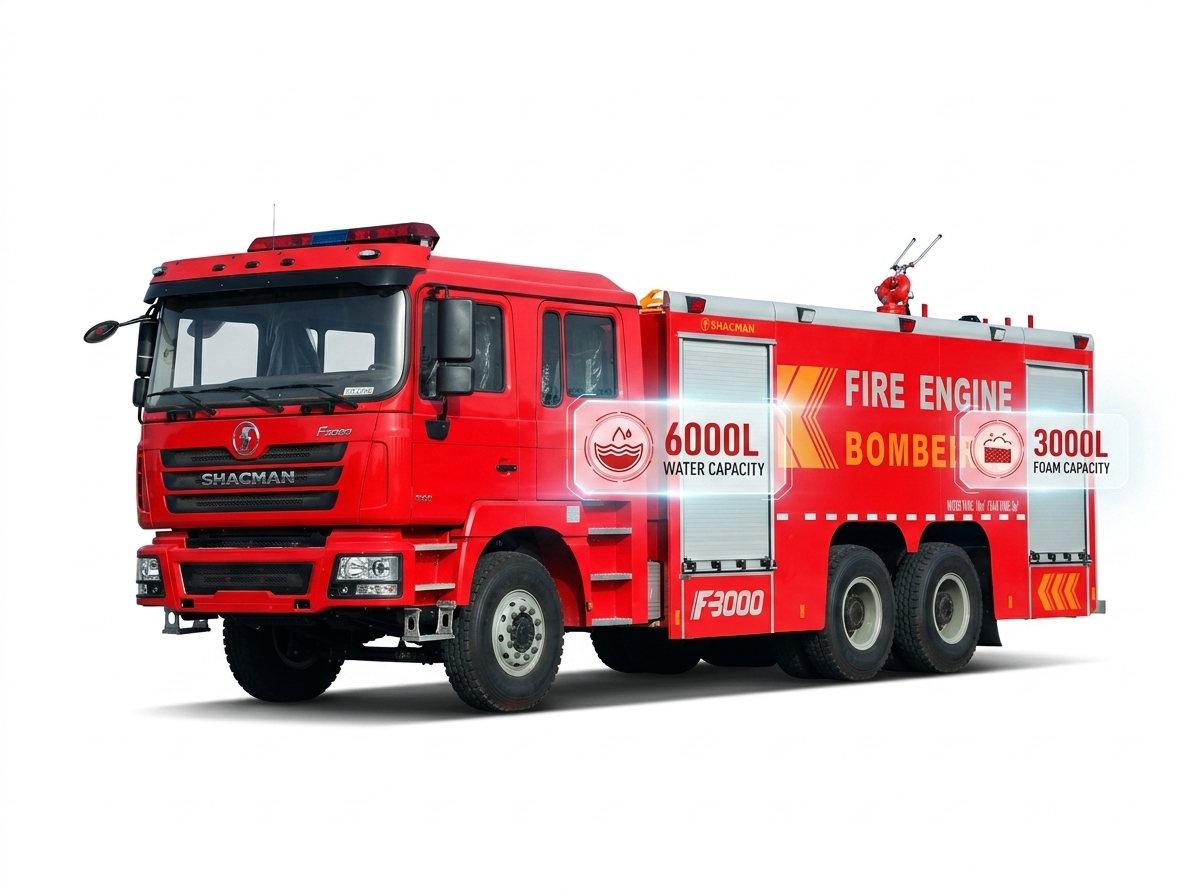

This SHACMAN F3000 6x4 foam fire truck combines a 6000 L water tank with a 3000 L foam tank, which makes it a practical choice for chemical plants, airports, oil terminals and warehouses where foam is the working agent. The CB10/60 pump feeds both the tank outlets and the roof monitor, and an automatic proportioner mixes foam concentrate at 3% or 6% as you select on the panel.

Main specifications

ChassisSHACMAN F3000 6x4 fire fighting chassis
EngineWeichai WP10.340E22, 340 hp, Euro 2
TransmissionFast Gear 9JS135T-B, 9 forward 1 reverse
Water tank6000 L, carbon steel with anti-corrosion coating
Foam tank3000 L, stainless steel, with foam concentrate drain
Fire pumpCB10/60, 60 L/s at 1.0 MPa
Foam proportionerAutomatic, 3% and 6% adjustable
MonitorPL32 water/foam, remote control, about 60 m range
Wheelbase4300+1350 mm
Tyres12.00R20, 6 units plus 1 spare

Why water plus foam

For liquid fuel fires, water alone often cannot do the job. Foam blankets the burning surface and stops re-ignition, which is why this configuration is widely used at fuel depots and chemical sites. The proportioner keeps the mix ratio steady regardless of pump flow, and the foam tank is baffled to keep the concentrate stable while the truck is on the road.

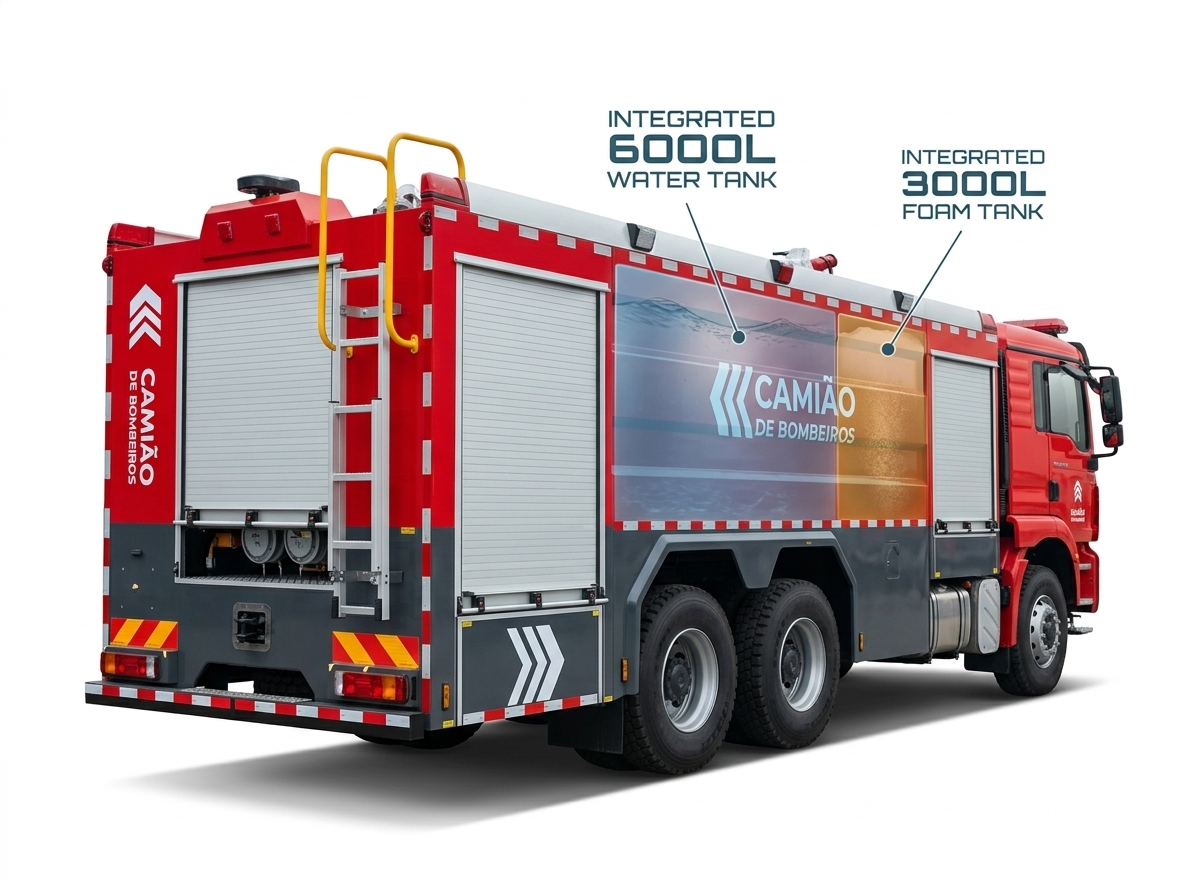

Body and layout

The body is divided into sealed compartments with roller-shutter doors: two hose beds on top, a pump room in the middle and storage lockers along both sides for nozzles, branch pipes and hand tools. The pump panel shows tank level, pump pressure and engine hours, and all controls are marked with international fire symbols.

Standard equipment

  • Foam branch pipes and pick-up tubes
  • Fire hose, suction hose and basket strainer
  • Warning lights, siren and rear scene lighting
  • Foldable ladder and toolbox

Tank capacity, pump output and monitor type can be adjusted to your local standard. We send photos and test videos of your unit before shipment. Write to us with your requirement and port of discharge for a complete offer.
