BWX136324 57.76*74.427*19 DC5776H Freewheel Overrunning Clutch One Way Sprag Clutch Bearings Manufacturer5
BWX136324 57.76*74.427*19 DC5776H Freewheel Overrunning Clutch One Way Sprag Clutch Bearings Manufacturer5
BWX136324 57.76*74.427*19 DC5776H Freewheel Overrunning Clutch One Way Sprag Clutch Bearings Manufacturer5
BWX136324 57.76*74.427*19 DC5776H Freewheel Overrunning Clutch One Way Sprag Clutch Bearings Manufacturer5
Specifications
Brand Name :
SFT
Model Number :
ASNU25
Place of Origin :
CHINA
MOQ :
500
Price :
1-50USD/PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
45 days
Packaging Details :
neutral
Torque (Nm) :
24
Material :
Gcr15 , Stainless steel
Hardness :
HRC58-62
Type :
roller or sprag
Weight :
0.38kg
Height (mm) :
16mm
Description
  • High-Quality Material: Our BWX136324 Sprag Clutch is made from GCR15 material, ensuring durability and reliability in various industrial applications.
  • Wide Applicability: This product is suitable for diverse industries, including manufacturing plants, machinery repair shops, printing shops, construction works, energy & mining, and retail, making it a versatile choice for various businesses.
  • Fast Delivery: As a leading manufacturer, we offer a fast delivery time of 5-7 days, ensuring that you receive your order promptly, as requested by [the user].
  • Precision Engineering: With a precision rating of P0, our BWX136324 Sprag Clutch is engineered to meet the highest standards of quality and performance.
  • Brand Assurance: This product is manufactured by SUMA, a reputable brand name, guaranteeing the quality and reliability of our products.

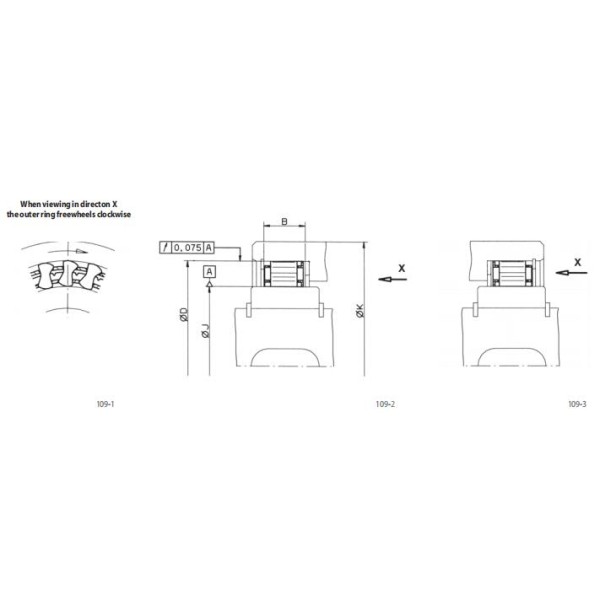

Type BWX is a sprag type freewheel cage without inner or outer races. It must be installed in a

design providing races, bearing support for axial and radial loads, lubrication and sealing. The BWX type version-N accepts all types of lubricants currently used in the power transmis-sion equipement.

The Parameters of the Sprag Freewheel Cage BWX

Size Type Nominal torque
MN Nm		 J
+0,008
-0,005 mm		 D
±0,013 mm		 B
mm		 K
mm		 Sprags Quantity Drag strips
Quantity		 Brake clips
Quantity		 Design as ill. Weight
kg
BWX133590A Disengaging 63 22,225 38,887 10,0 44,0 12 109-2 0,03
BWX13143A Engaging 120 27,767 44,425 13,5 51,0 14 109-2 0,06
BWX133392 Disengaging 280 38,092 54,750 16,0 71,0 18 109-3 0,09
BWX1310145 Disengaging 180 41,275 57,937 13,5 74,2 14 3 109-2 0,07
BWX132909A Disengaging 360 44,450 61,112 16,0 78,5 20 2 3 109-2 0,10
BWX133339 Disengaging 310 49,721 66,383 13,5 85,0 22 2 4 109-2 0,09
BWX1310003 Disengaging 310 49,721 66,383 13,5 85,0 22 4 109-2 0,09
BWX137222 Engaging 570 49,721 66,383 19,0 85,0 22 109-2 0,12
BWX1310445 Disengaging 400 54,765 71,427 13,5 91,7 24 109-2 0,09
BWX1310172 Engaging 540 54,765 71,427 16,0 91,7 24 109-2 0,12
BWX1310226 Disengaging 520 54,765 71,427 16,0 91,7 24 2 4 109-2 0,12
BWX136709 Engaging 770 54,765 71,427 21,0 91,7 24 3 10 109-2 0,16
BWX1310147 Disengaging 1 000 54,765 71,427 25,4 91,7 24 3 8 109-2 0,20
BWX136324 Engaging 600 57,760 74,427 19,0 95,0 26 109-3 0,14
BWX1310080 Disengaging 670 72,217 88,882 13,5 115,0 30 4 109-2 0,12
BWX13168 Engaging 1 300 72,217 88,882 21,0 115,0 30 109-3 0,20
BWX134012 Engaging 1 300 72,217 88,882 21,0 115,0 30 4 10 109-3 0,20
BWX137322 Disengaging 2 000 796,982 96,363 25,4 124,0 34 5 12 109-2 0,28
BWX138316 Disengaging 2 960 835,972 102,596 25,4 131,6 34 5 12 109-2 0,30
BWX13261A1 Disengaging 1 600 1,032,312 119,893 16,0 154,0 40 6 10 109-3 0,19
BWX13236 Disengaging 1 700 1,173,912 136,391 16,0 175,3 30 5 6 109-3 0,25
BWX133403B Engaging 4 900 1,238,812 142,880 25,4 188,0 44 11 109-2 0,46
