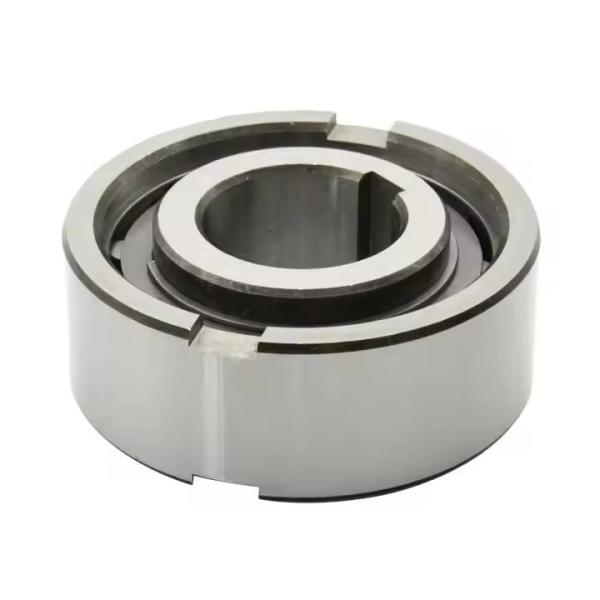

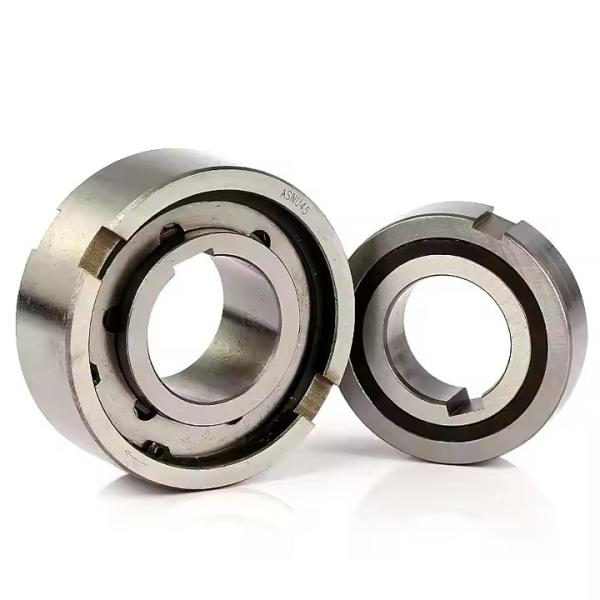

Overrunning One Way Clutch Bearing Roller Type Bearing ASNU25 TFS25
Overrunning One Way Clutch Bearing Roller Type Bearing ASNU25 TFS25
Overrunning One Way Clutch Bearing Roller Type Bearing ASNU25 TFS25
Overrunning One Way Clutch Bearing Roller Type Bearing ASNU25 TFS25
Specifications
Brand Name :
SFT
Model Number :
ASNU25
Place of Origin :
CHINA
MOQ :
500
Price :
1-50USD/PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
45 days
Packaging Details :
neutral
Torque (Nm) :
24
Material :
Gcr15 , Stainless steel
Torque (N.m) :
28.5
Type :
roller or sprag
Weight :
0.38kg
Height (mm) :
16
Description
Model ASNU15 NFS25
Type Roller or Sprag
Inner diameter 25mm
Outer diameter 62mm
Torque capacity 100Nm
Weight 0.38kg
Application Textile machine, fans, ventilators, printing machine
Package Carton Box / Wooden box

Introduction of ASNU series one way clutch bearing

Type ASNU is a roller type freewheel nonbearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63...Ball bearing.
A typical arrangement is to install this type alongside a bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft.
The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission.
If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and uter race of ± S/2.

Parameter of ASNU series one way clutch bearing

Type Size

Overrunning

Speeds

 Weight Drag torque
ASNU dH7 TKN1) nimax2) namax3) Dn6 D5 L b t s e f TR
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
8 12 3300 5000 35 28 13 4 1.4 2.4 0.6 0.3 0.07 1.6
12 12 3300 5000 35 28 13 4 1.4 2.4 0.6 0.3 0.06 1.6
15 30 2400 3600 42 37 18 5 1.8 2.4 0.8 0.3 0.11 1.9
17 49 2300 3400 47 40 19 5 2.3 2.4 1.2 0.8 0.15 1.9
20 78 2100 3100 52 42 21 6 2.3 2.4 1.2 0.8 0.19 1.9
25 125 1700 2600 62 51 24 8 2.8 2.4 1.2 0.8 0.38 5.6
30 255 1400 2200 72 60 27 10 2.5 2.4 1.8 1 0.54 14
35 383 1200 1900 80 70 31 12 3.5 2.4 1.8 1 0.74 16
40 538 1100 1700 90 78 33 12 4.1 2.5 1.8 1 0.92 38
45 780 1000 1600 100 85 36 14 4.6 2.5 1.8 1 1.31 43
50 1013 850 1350 110 92 40 14 5.6 2.5 1.8 1 1.74 55
60 1825 750 1050 130 110 46 18 5.5 3.6 2.6 1.5 2.77 110
70 2300 600 950 150 125 51 20 6.9 3.6 2.6 1.5 4.16 140
80 3275 550 850 170 140 58 20 7.5 3.6 2.6 1.5 6.09 180
90 5325 500 750 190 160 64 20 8 3.6 2.6 2 8.2 230
100 7250 450 680 215 175 73 24 8.5 3.6 2.6 2 12.6 380
120 13500 370 550 260 215 86 28 10 3.6 2.6 2.5 22 650
150 26625 300 460 320 260 108 32 12 3.6 3.6 2.5 42 1000
200 44500 230 350 420 350 138 45 16 7.6 3.6 3 93 2000

Mounting Example

Overrunning One Way Clutch Bearing Roller Type Bearing ASNU25 TFS25
