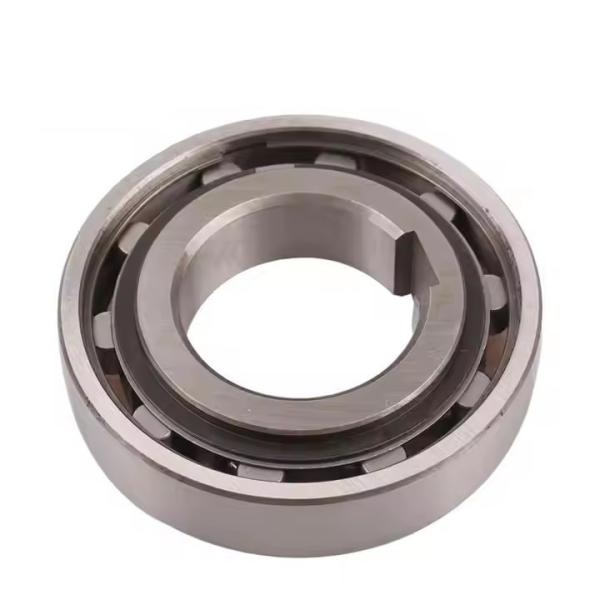

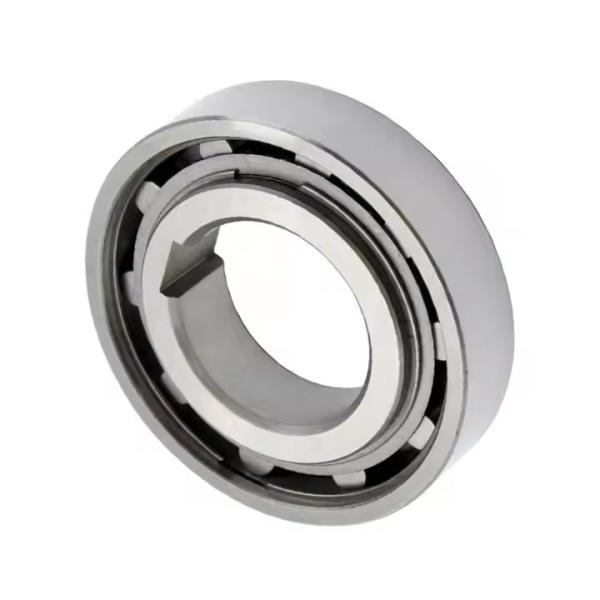

AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
AS45 TSS45 NSS45 Freewheel Clutch One Way Roller Ball Bearing For Reducers
Specifications
Brand Name :
SFT
Model Number :
TSS45
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Material :
Gcr15
Precision Rating :
P6
Outside Diameter :
35 - 80 mm
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining
WEIGHT :
0.44kg
Type :
Other Type
Description

AS45 TSS45 NSS45 Freewheel Clutch One Way Ball Bearing for Reducers

INTRODUCTION

Type TSS/NSS is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 62...Ball bearings.
A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft (except 6 mm bore).
The outer race has a positive r6 tolerance to give a press fit in a H7 housing. The outer housing must be

strong enough
To not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.

Type Size Overrunning speeds Weight Drag torque
AS (NSS) dH7 TKN1) nimax2) namax3) Dr6 D5 L s e f TR
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
6 2.1 5000 7500 19 15.8 6 0.3 0.6 0.3 0.01 0.18
8 3.8 4300 6500 24 20 8 1.3 0.6 0.6 0.02 0.24
10 6.8 3500 5200 30 25.9 9 1.3 0.6 0.6 0.03 0.36
12 13 3200 4800 32 28 10 1.3 0.6 0.6 0.04 0.48
15 14 2800 4300 35 31 11 1.4 0.6 0.6 0.05 0.7
20 40 2200 3300 487 40 14 2.4 0.8 0.8 0.12 1.4
25 56 1900 2900 52 45.9 15 2.4 0.8 0.8 0.14 2.4
30 90 1600 2400 62 55 16 2.4 0.8 1 0.22 7.8
35 143 1300 2000 72 64 17 2.5 0.8 1 0.31 9
40 185 1200 1800 80 72 18 2.5 0.8 1 0.39 10
45 218 1000 1600 85 77 19 2.5 1.2 1 0.44 11
50 230 950 1500 90 82 20 2.5 1.2 1 0.49 13
55 308 800 1300 100 90 21 2.5 1.2 1 0.66 14
60 508 700 1100 110 100 22 2.5 1.2 1.5 0.81 26
80 1063 600 900 140 128 26 2.5 1.2 1.5 1.41 58

MOUNTING EXAMPLE
