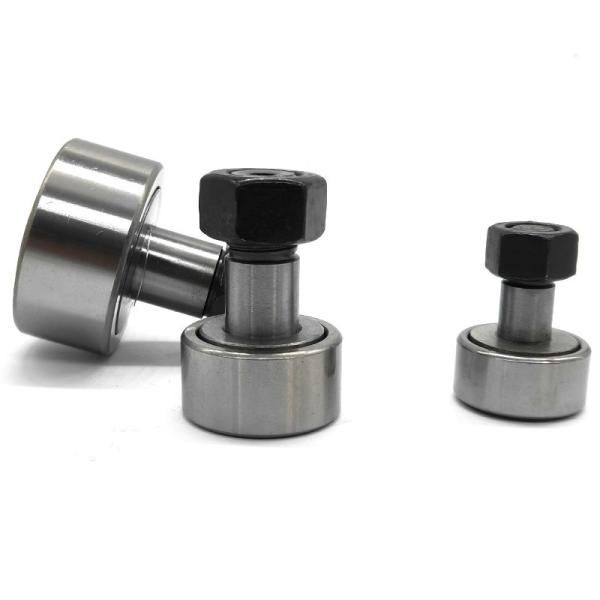

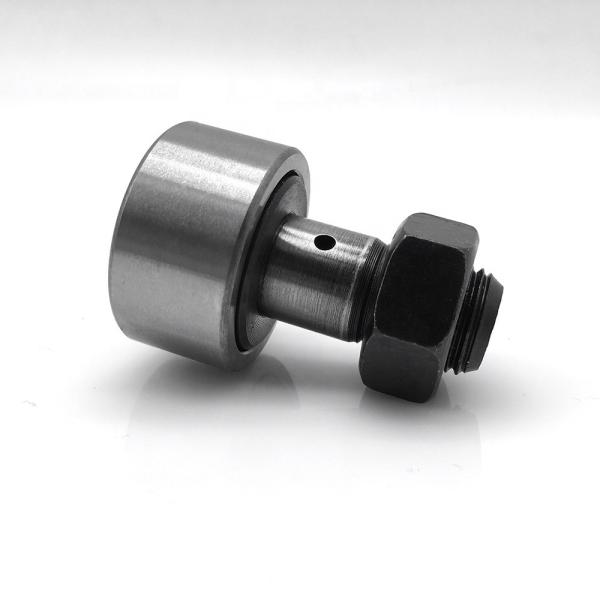

Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines
Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines
Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines
Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines
Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines
Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines
Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines
Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines
Specifications
Brand Name :
SFT
Model Number :
CF16
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/MONTH
Delivery Time :
20-45DAYS
Packaging Details :
carton,pallet
Structure :
Drawn Cup Needle Roller
Outer diameter :
35 mm
Sample order :
Accept
Type :
Needle
Clearance :
C0,C2,C3,C4,C5
Greese :
As you requirement, such as SRL ,PS2, A
Description

CF16 Inch Series Cam Follower Track Needel Roller Bearing

Introduction:

The bolt roller shaft is generally a full-loaded roller structure, and the bolt shaft raceway portion is quenched. To avoid the stress concentration, the thick wall of the outer ring of the outer surface of the roller is cured. The outer ring has two integral ribs, and the axial direction is guided by rollers. The bolt shaft head and the press-fit side retaining ring provide axial support for the outer ring through rollers.

Bolt roller shaft is suitable for heavier radial loads. Since the outer ring is axially guided by the roller, the bearing can also withstand heavy axial loads, allowing relatively high speed operation. However, since it is a full-loaded roller, it is necessary to replenish the grease frequently, and the lubricant can be filled through the both en ds of the mandrel and the holes in the mandrel body.

Application industry:

Stud Type Track roller is suitable for motors, power tools, sports equipment, medical machinery, packaging machinery, food machinery, printing machinery, woodworking machinery, textile machinery, light machinery, mining machinery, engraving machines, automation equipment, CNC equipment

Advantage:

1. High speed, high precision

2. Long service life

3. Low noise and good performance

Specification

Model

Weight

d

D

C

No Seal

Reference model

(gram)

mm

mm

mm

CF 3

KR10

4.5

3

10

7

CF 4

KR12

7.5

4

12

8

CF 5

KR13

10.5

5

13

9

CF 6

KR16

18.5

6

16

11

CF 8

KR19

28.5

8

19

11

CF10

KR22

45

10

22

12

CF10-1

KR26

60

10

26

12

CF12

KR30

95

12

30

14

CF12-1

KR32

105

12

32

14

CF16

KR35

170

16

35

18

CF18

KR40

250

18

40

20

CF20

KR47

460

20

47

24

CF20-1

KR52

385

20

52

29

CF24

KR62

815

24

62

29

CF24-1

KR72

1,140

24

72

29

CF30

KR80

1,870

30

80

35

CF30-1

KR85

2.03

30

85

35

CF30-2

KR90

2,220

30

90

35

Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines

Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines

Track Cam Follower Needle Roller Bearing OD 35mm Drawn Cup For Engraving Machines
