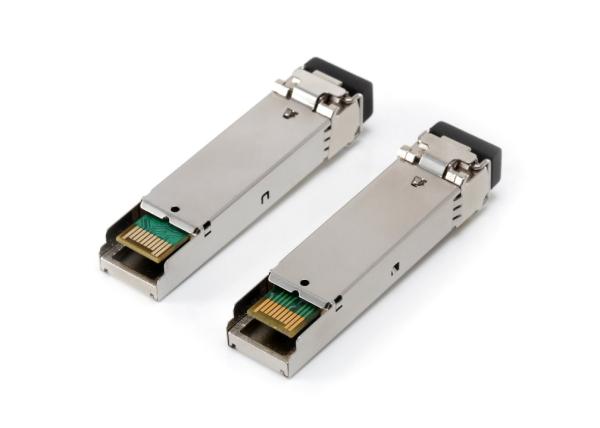

1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
AscentOptics/Neuter, OEM
Certification :
CE,FCC,RoHS
Model Number :
AVP2R1G1320-SDI20
MOQ :
1PCS
Price :
Get Latest Price
Packaging Details :
10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time :
Within 1-3 working days after PO confirmed
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50,000pcs/Month
Product Name :
Video SFP Transceiver
Sensitivity(dbm) :
R1: -22 , R2: -22
Datarate :
50-1500 (Mb/s)
Application :
3G Video System
Connector :
LC
Distance :
20Km
Description


1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI


Specification:

P/N

AVP2R1G1320-SDI20

Datarate

50~1500 (Mb/s)

Number of optical input

2

Number of optical output

N/A

Typical powervalue (dbm)

N/A

Sensitivity(dbm)

R1: -22 R2: -22

Estimated reach @3Gb/s (km)

20Km

Connector

LC

Application

3G Video System

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM

Standards

SMPTE 292M HD-SDI/ SMPTE 348M HD-SDTI

SMPTE 259M SD-SDI/ SMPTE 319M SD-SDTI


1.5G Dual Pin SMPTE Video SFP Transceiver 1260 - 1620nm For 3G / HD-SDI

Description:

1. SMPTE 424M/297M compliant
2. Robust Error free transmission of signals from 50Mbps to 3.0Gbps
3. Supports video pathological patterns for 3G/HD-SDI/SD-SDI
4. PIN defination is compatible with MSA
5. SFP Package.Hot-pluggable
6. Metal enclosure for lower EMI
7. +3.3V single power supply.
8. Digital diagnostics and control via I²C interface, including:
1)Monitoring laser bias current, average output power, supply voltage and temperature
2)Alarm reporting when transmitter is at fault
3)Module ID polling
9. Compliant ROHS and lead free


Applications

  1. SMPTE 297-2006 Compliant
  2. Electrical-to-Optical Interfaces
  3. 3G Video System

Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

1.5G Dual Pin Video SFP Transceiver For 3G Video System / HD-SDI
