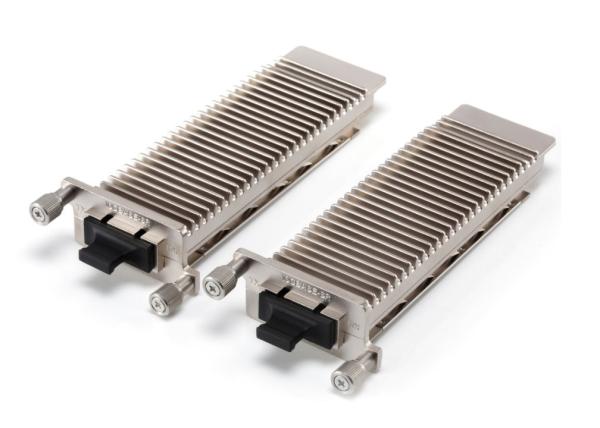

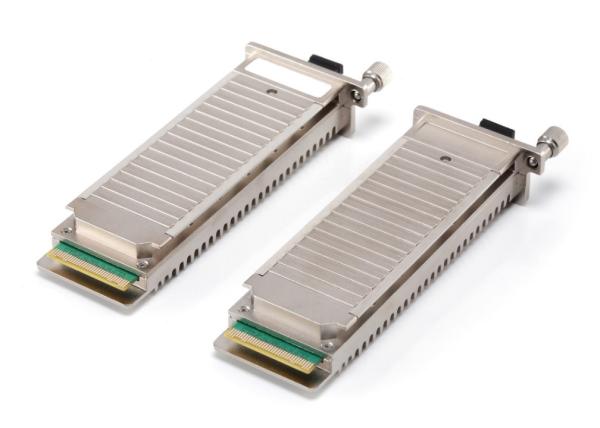

High Quality SC 10G Xenpak Transceiver Module Multimode Fiber
High Quality SC 10G Xenpak Transceiver Module Multimode Fiber
High Quality SC 10G Xenpak Transceiver Module Multimode Fiber
High Quality SC 10G Xenpak Transceiver Module Multimode Fiber
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
Neuter, OEM
Certification :
CE/FCC/RoHS/TUV/UL
Model Number :
10110-A
MOQ :
1PCS
Price :
Get Latest Price
Packaging Details :
10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time :
Within 1-3 working days after PO confirmed
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50,000pcs/Month
Product Name :
10G Xenpak Module, Optical Transceiver Module
Datarate :
10.3G
Wavelength :
850nm
Distance :
300M
Application :
10GE Ethernet,10GE Core-routers,10GE Storage Ect.
Form Factor :
XENPAK
Description

High Quality SC 10G Xenpak Transceiver Module Multimode Fiber

Extreme Networks 10 Gigabit Ethernet XENPAK Transceiver, 850nm, up to 300 m on multimode fiber, SC connector

Supports 10GBASE Ethernet.Hot-swappable input/output device plugs into an Ethernet XENPAK port of a switch or router to link the port with the network.Provides flexibility of interface choice.Supports "pay-as-you-populate" model.Interoperable with respective 10-Gigabit X2, XFP and SFP+ modules on the same link

Features

  • Compatible with XENPAK MSA Rev.3.0
  • Support of IEEE802.3ae up to 300m (OM3 MMF)
  • Power Consumption 1.8W (typ.)
  • Temperature Range 0 to 70°C
  • Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
  • Adaptable Power Supply (APS:+1.2V)
  • SC duplex connector
  • Hot pluggable 70-pin connector with XAUI electrical interface
  • Management and control via MDIO 2-wire interface
  • Compatible with RoHS

Applications

  • 10GE Ethernet switches and routers
  • 10GE Core-routers
  • 10GE Storage
  • Other 10Gbps Ethernet Transmission System

Specifications:

P/N

10110-A

Datarate

10.3G

Distance

300M

Wavelength

850nm

Transmitter

VESCEL

Receiver

PIN

Media

MMF

DDM/DOM

YES

Connector

SC

Application

Datacom 10G Ethernet

Operating Temperature

0℃~ +70℃

Voltage Supply

1.2V/3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM

Extreme 10G Xenpak

XENPAK 　 　
10110 10110-A 10 Gigabit Ethernet XENPAK Transceiver, SR, 850 nm, MMF, 300 m range
10111 10111-A 10 Gigabit Ethernet XENPAK Transceiver, LR, 1310 nm, SMF, 10 Km range
10112 10112-A 10 Gigabit Ethernet XENPAK Transceiver, ER, 1550 nm, SMF, 40 Km range
10113 10113-A 10GBASE-ZR XENPAK 1550nm 80km Optical Transceiver
10114 10114-A LX4 XENPAK 10 Gigabit Ethernet XENPAK, 1310nm WWDM, MMF 300m and SMF 10km, SC
10116E 10116E-A LW XENPAK WAN PHY XENPAK, 10GBASE-LW, 1310nm, up to 10 KM over SMF, SC, RoHS-5

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
