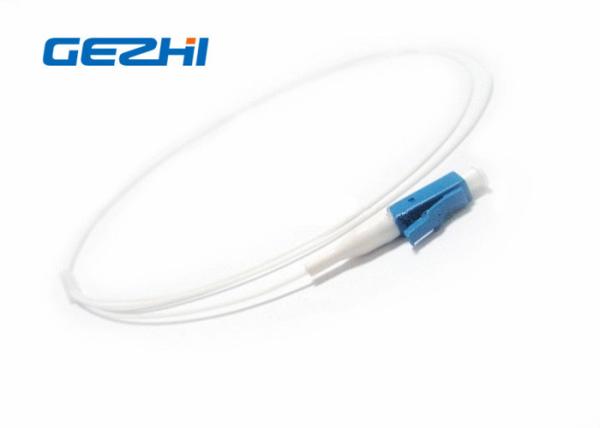

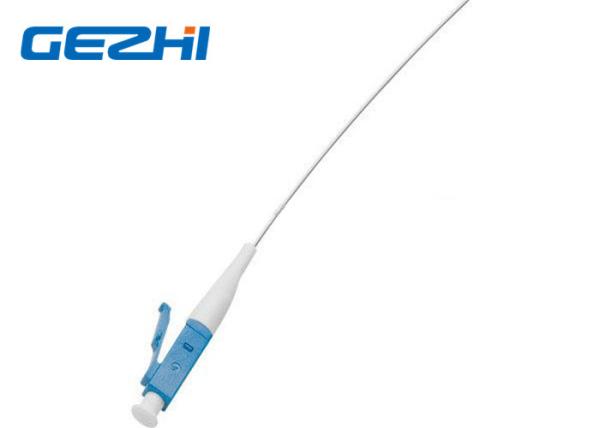

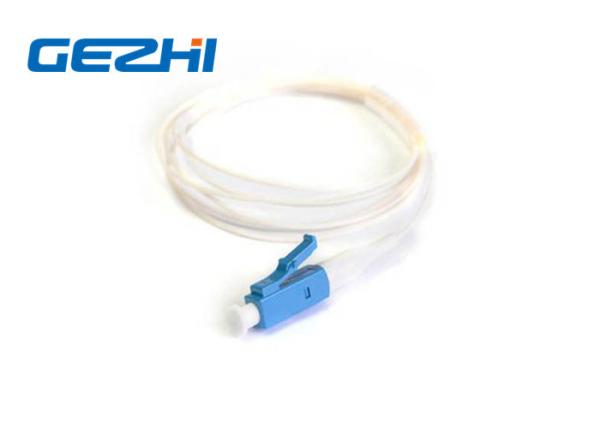

LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer
LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer
LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer
LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer
LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer
LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer
LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer
LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-Patch Cord
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1
Price :
Get Latest Price
Supply Ability :
100000pcs per week
Delivery Time :
1~3working days
Packaging Details :
1pcs in a Plastic bag
Product Name :
Fiber Patch Cables
Mode :
Single Mode
Cores :
simplex
Polishing :
LC/UPC
Length :
Customised
Application :
FTTB
Description
LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer

LC Fiber Optic Pigtail are a small form factor fiber optic Pigtail. LC fiber Pigtails

have been standardized as FOCIS 10 (Fiber Optic Pigtail Intermate-ability Standards) in EIA/TIA-604-10.

LC Fiber Optic Pigtail use a 1.25 mm ferrule, half the dimension of the ST ferrule or a regular ceramic

ferrule Pigtail. LC gives excellent performance and is greatly preferred for single mode transmission.

Features

  • Insertion Loss low
  • High Return Loss
  • Good Repeat ability
  • Good Exchange ability
  • High Temperature Stability
  • 8 Degree Angled physical contact polishing (APC)

Application

  • CATV network
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX networks

Specification

Connector type

LC,SC,ST,FC, SC/APC,FC/APC,LC/APC.
Fiber Type

9/125um SMF-28 or equivalent (Single mode) OS1,

(Multi-mode) 50/125um OM1, 62.5/125um OM2

& 50/125um, 10G OM3, OM4
Cable Type

Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm,

Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm,

Φ0.6mm buffered fiber

PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Single mode Master);

≤ 0.25dB (For Single mode Standard) ;

≤ 0.25dB (For Multi-mode) ;

Tested by JDS RM 3750

Return Loss

(For Single mode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750
Repeat ability ±0.1dB
Operating Temperature -40°C to 85°C

Geometry Requirement

(For Single mode)

Ferrule End face Radius:

7mm ≤ R ≤ 12mm (For APC);

10mm ≤ R ≤ 25mm (For Standard);

Apex Offset ≤ 30 μm (For Master);

Apex Offset ≤ 50 μm (For Standard);

Undercut -50nm ≤ U ≤ 50nm;

Tested by DORC ZX-1

Ordering Information


LC / PC MM 50/125 SIMPLEX 0.9mm –1M LSZH

① ② ③ ④ ⑤ ⑥ ⑦

① Connector type: FC, SC, LC, ST
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

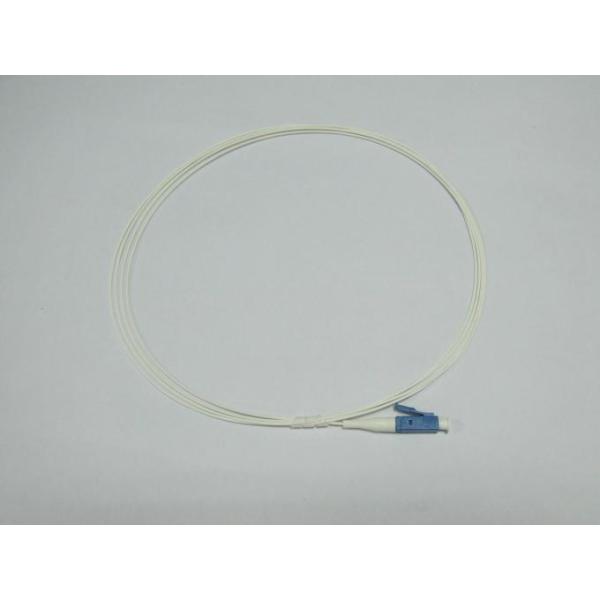

LC/UPC SM SX Pigtails 1.5M, Fiber Optic Pigtails LC 1.5 Mtrs 900um White Tight Buffer
