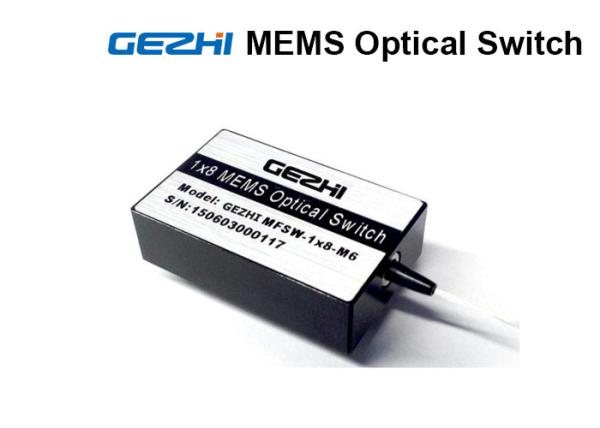

Single Mode 1x8 MEMS Optical Switches Mini 850nm For DWDM networks

GEZHI Photonics's MEMS (Micro-Electro-Mechanical Systems) Optical Switch work Wavelength Range SM MM 1310±20 or 1550±20 or 1625±20 850±20 or 1310±20 or 1550±20,Test Wavelength.

GEZHI Photonics MEMS single mode switches are designed to be easily integrated into optical systems. The highly reliable MEMS technology is characterized by a long lifetime, high reliability, and high durability (max 3 x 109 cycles), making these suitable for use as OEM components. The switch is packaged to allow easy mounting onto PCB boards.

Features

  • Base on MEMS Technology
  • Small package
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Non-latching

Applications

  • DWDM networks
  • Channel Monitor
  • R&D in Laboratory
  • Configurable OADM


Specification

Parameters Unit GZ-FSW-MEMS-1×N(≤24)
Wavelength Range nm SM MM
1310±20 or 1550±20 or 1625±20

850±20

or 1310±20

or 1550±20
Test Wavelength nm 1310/1550/1625 850/1310/1550
Insertion Loss dB

1.0(TYP) 1.2(MAX) N≤16

1.2(TYP) 1.8(MAX) N≤24

0.8(TYP) 1.0(MAX) N≤8

1.0(TYP) 1.5(MAX) N≤12
WDL dB ≤0.3 ≤0.3
PDL dB ≤0.15 ≤0.15
Return Loss dB ≥40 ≥25
Crosstalk dB ≥50 ≥30
Repeatability dB ≤±0.05 ≤±0.05
Power Supply V 5~12
Durability Cycles ≥109
Switch Time ms ≤20
Transmission Power mW ≤500
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
Dimension mm (Type A) 39.1(L) x 24.7(W) x 11(H) ±0.2
(Type B) 65(L) x 24.7(W) x 11(H) ±0.2

Note: 1 Within operating temperature and SOP.

2 Excluding connectors.

MEMS 1xN Optical Switch - Dimension

Single Mode 1x8 MEMS Optical Switches Mini 850nm For DWDM networks

Package Type A

Tube Type:250um, N≤24

Single Mode 1x8 MEMS Optical Switches Mini 850nm For DWDM networks

Package Type B

Tube Type:900um, N≤16

MEMS 1XN Optical Switch - Pin Configurations

Pin Signal Name Description I/O specifications Unit
1 NC NC

2 VCC DC Power Supply Power 5 VDC
3 STROBE Strobe signal, The falling edge of the effective IN TTL

4 GND Ground Power

5 D0 Channel D0 IN TTL

6 D1 Channel D1 IN TTL

7 D2 Channel D2 IN TTL

8 NC NC

9 TXD Serial Port Send IN TTL

10 RXD Serial Port Receive IN TTL

11 GND Ground Power

12 NC NC

13 D3 Channel D3 IN TTL 3
14 /RESET Active-low reset IN TTL

Order Information

Output

Number

Fiber

Type

Package

Type

 Test Wavelength Tube Type

Fiber Length

(Include

connector)

 Connector Interface

2:2

4:4

8:8

12:12

16:16

20:20

24:24

SM: SM,

9/125

M5:MM,5

0/125

M6:MM,6

2.5/125

X:

Others

A:Type A

B:Type B

850:850nm

1300:1300nm

8513:850&1300

nm

1310: 1310nm

1550: 1550nm

1315:1310&155

0nm

1625:1625nm

X:Others

25:250um(

Type A)

90:900um(

Type B)

X: Others

05: 0.5m

10: 1.0m

15: 1.5m

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

LP: LC/PC

LA: LC/APC

X: Others

MS1 :

TTL/RS232

MS2 :I2C
