Fiber Optic Equipment 1x8 CWDM Modules
Fiber Optic Equipment 1x8 CWDM Modules
Specifications
Brand Name :
GEZHI or OEM
Model Number :
CWDM8CHMD47LPLGX
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get Latest Price
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
60,000pcs per month
Delivery Time :
1~3working days after payment
Packaging Details :
16
Product Name :
Fiber Optic Equipment
Package :
LGX Cassette
Connector :
LC/UPC
Wavelength :
1470~1610nm
Type :
Duplex Fiber
Feature :
Low PDL
Description

Fiber Optic Equipment 1x8 CWDM Modules

The Fiber Optic Equipment 1x8 Compact LGX WDM module performs 8ch CWDM signals mux & demux with 1470~1610nnm wavelength. This LGX has smaller size than ordinary one and takes up less space in system. Its can be customized with 1310nm Grey port , Monitor Port , or Expansion port for future development and fiber extend.

Features

Applications
  • Low insertion loss
  • Broadband transmission
  • High isolation
  • High stability and reliability
  • Epoxy glue
  • Metro/Access networks
  • WDM system
  • Fiber optical amplifier
  • CATV system

Specifications

Parameter Value
CWDM Channels Number 4 8
Operation Wavelength (nm) 1470~1610 OR 1471~1611
Center wavelength accuracy (nm) ± 0.5
Channel Spacing (nm) 20
Passband (@-0.5dB bandwidth)(nm) ±7 & ±6.5
Insertion Loss(dB) 1.5 2.5
Pass band Flatness(dB) 0.3

Isolation(dB)

 Adjacent Channel 30
Non-adjacent Channel 45
Insertion Loss Temperature Sensitivity (dB/°C ) <0.005
Wavelength Temperature Shifting (nm/ °C ) <0.002
PDL (dB) <0.10
PMD (ps) <0.1
Directivity (dB) >50
Return Loss (dB) >45
Rated power (mW) 500
Operation Temperature (°C) -20 ~ +70
Storage Temperature (°C) -40 ~ +85
Dimension (mm) LGX Cassette

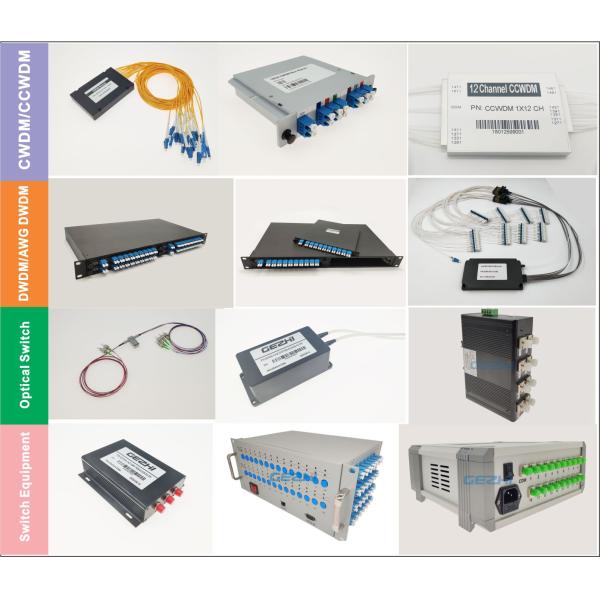

GEZHI Main Products CWDM,DWDM,AWG Modules,Optical Switches
