2x2F Mechanical Switch Latching
2x2F Mechanical Switch Latching
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-FSW-2x2F
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
China
MOQ :
1pcs
Price :
Get Latest Price
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
50,000pcs per month
Delivery Time :
5-10 work days
Packaging Details :
Plastic box
Product Name :
Mechanical Switch
Length :
1meter
Cable :
0.9mm
Connector :
FC/PC
Port :
2x2F
Type :
Latching
Description

2x2F Mechanical Switch latching

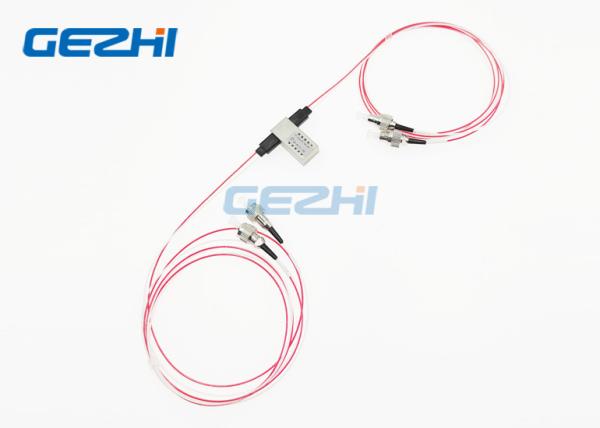

GEZHI -FSW-2x2F Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2 ±0.2mm. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

Features Applications
  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching
  • Optical Network
  • Protection/Restoration
  • Optical Singnal Routing
  • Configurable Optical Add/Drop
  • Transmitter and receiver protection
  • Network Test System

Parameters

 GZ-FSW-2×2F
Wavelength Range nm

1260~1650nm or 850nm

1260~1650
OperatingWavelength nm

1310/1550 or 850nm

1310/1490/1550/1625/1650
Insertion Loss dB

Typ:0.7 Max:1.0

Typ:0.8 Max:1.0
Return Loss dB SM≥50 MM≥30
Crosstalk dB SM≥55 MM≥35
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power supply v 3.0 or 5.0
Lifetime Time ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
OperatingTemperature ℃ -20~+70
Storage Temperature ℃ -40~+85
Dimension mm (L)27.0×(W)12.0×(H)8.2

Electric

Specifications Voltage Current Resistance
5V latching 4.5~5.5 36~44mA 125Ω
5V non-latching 4.5~5.5 26~32mA 175Ω
3V latching 2.7~3.3 54~66mA 50Ω
3V non-latching 2.7~3.3 39~47mA

70Ω

Pins

Type Pin Electric Drive Status sensor
2×2F channel 1 5 6 10 2-3 3-4 7-8 8-9
Latching P1-P4,P2-P3 -- -- GND V+ Close Open Open Close
P1-P3,P2-P4 V+ GND -- -- Open Close Close Open
Non-latching P1-P4,P2-P3 -- -- -- -- Close Open Open Close
P1-P3,P2-P4 V+ -- -- GND Open Close Close Open

Optical Route

Status One Status Two
2x2F Mechanical Switch Latching 2x2F Mechanical Switch Latching

Ordering Information

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector

S=SM

M=MM

85=850nm

13/15=1310/1550nm

X=Others

3=3V

5=5V

L=Latching

N=Non- Latching

5=50/125

6=62.5/125

9=9/125

X=Others

25=250um

90=900um

20=2.0mm

30=3.0mm

X=Others

1=1m

2=1.5m

X=Others

0=None

FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

LP=LC/PC

LA=LC/APC

X=Others
