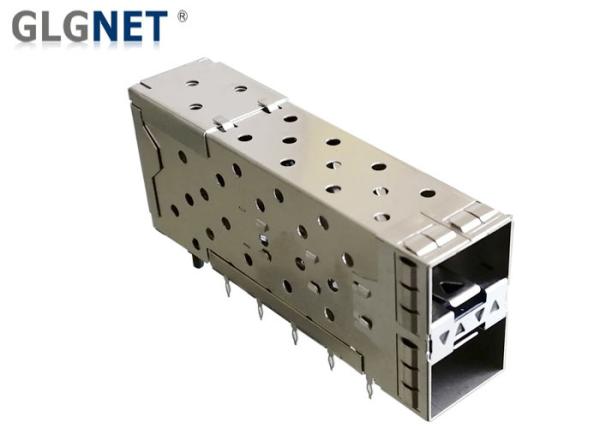

2X1 Stacked SFP+ Cage Integrated 20PIN Connector with INNER OUTER Light Pipe
2X1 Stacked SFP+ Cage Integrated 20PIN Connector with INNER OUTER Light Pipe
2X1 Stacked SFP+ Cage Integrated 20PIN Connector with INNER OUTER Light Pipe
2X1 Stacked SFP+ Cage Integrated 20PIN Connector with INNER OUTER Light Pipe
Specifications
Brand Name :
GLGNET
Model Number :
47006-11M321
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Port Configuration :
Stacked 2 ports
Application :
10G Ethernet
Mounting Type :
Press Fit
Light Pipe :
With INNER OUTER Light Pipe
Cage Pin :
3.05mm Press fit Pin
Signal Pin :
2.07mm Press fit Pin
Description

2X1 Stacked SFP+ Cage Integrated 20PIN Connector with INNER OUTER Light Pipe

1. 47006-11M321 2X1 Stacked SFP+ Cage Connector with Inner Outer Light Pipe Overview

GLGNET P/N 47006-11M321
Description 2X1 Stacked SFP+ Cage Connector with Inner Outer Light Pipe
Port Configuration Stacked 2 Ports
EMI Spring Yes
Light Pipe With Inner Outer Light Pipe
Heat Sink No
Cage Body Depth (mm) 63.25
Cage Body Height (mm) 25.2
Cage Body Width (mm) 14
Cage Pin Length (mm) 3.05 TYP Press Fit
Signal Pin Length (mm) 2.07 TYP Press Fit
Mounting Type Press Fit
Shield Material 0.25mm thickness coppy alloy
EMI Spring Material 0.1mm thickness coppy alloy
Contact Terminal Material 0.2 mm Copper Alloy
Plastic Housing Material LCP Black
Light Pipe Material Polycarbonate Color clear
Light Pipe Housing Material PA46 Black
Cage Surface Plating Nickel Plating
Contact Terminal Plating 15U" gold Plating, 30U" Available
Recommended PCB Thickness 2.36 (min 1.57)
Rated Current 0.5 A Max @ 30℃
Operating Temperature -40 to +85 ℃
Storage Temperature -40 to +85 ℃
RoHS Compliant Yes

2. 47006-11M321 2X1 Stacked SFP+ Cage Connector with Inner Outer Light Pipe Electrical Requirement

Electrical Requirement
ITEM Qualtified Result Test Condition
Contact Resistance 20 mΩ Max. (Initial States)
40 mΩ Max. (Final States)		 20 mV Max / 100 mA Max
Insulation Resistance 500 MΩ Min. 500 VDC for 2 minute
Dielectric withstanding Voltage No Damage 300 VDC / 1 mA for 1 minute

3. 47006-11M321 2X1 Stacked SFP+ Cage Connector with Inner Outer Light Pipe Mechanical Requirement

ITEM Qualtified Result Test Condition
Durability No damaged.
Contact Resistance can not be over Final Value		 Speed:25mm / minute
Cycles:250 Cycles
Cage retention(Latch
strength of cage)		 110N Min. Speed:25mm / minute
Cage press-fit insertion force 40N MAX Speed:25±3mm / minute
Cage press-fit extraction
force		 11.5 MAX Speed:25±3mm / minute
Vibration No Damage
Disconnect time can not be over 1us
Contact Resistance can not be over Final Value		 Rate:vary 20-500-20Hz between
1 minute,Direction:3 mutually
perpendicular planes,Times:15 minutes in
each of cycles,Swings:1.52mm.

4. 47006-11M321 2X1 Stacked SFP+ Cage Connector with Inner Outer Light Pipe Environmental Requirement

ITEM Qualtified Result Test Condition
Humidity-Temperature Cycle No damaged
Insulation Resistance and Dielectric withstanding Voltage qualtified		 At a temperature of 40±3℃ and
relative humidity of
90% - 95% for 96 hours.
Humidity-Temperature Cycle No damaged
Contact Resistance can not be over Final Value		 between 25±3℃ at 80±3% RH and 65
±3℃ at 50±3% RH.Ramp times shall
be.2.5 hour,dwell times shall be 1
hour.Perform 24 such cycles.
Thermal Shock No damaged
Contact Resistance can not be over Final Value		 Test temperature -55±3℃ at 30 minute
to Standard atmospheric condition 10-15
minute MIN to Test temperature -55±3℃
at 30 minute to Standard atmospheric
condition 10-15 minute MIN.Ramp times
shall be 2-3 minute,perform 10 such
cycles.
Salt Spray No damaged
Contact Resistance can not be over Final Value		 Temperature:35±2℃,
Humidity:95-98%(R.H.),PH: 6.5—7.2
Salt density:(5±1)%, Duration:48H

5. GLGNET SFP+ Cage FEATURES AND BENEFITS

1. Available in single port, ganged and stacked configurations
2. Cages in multiple configurations,
offering either elastomeric gasket or EMI springs to address EMI containment at higher data rates.
3. Belly to belly mounting cages are also available allowing for design and
retrofitting flexibility
4. SFP+ connectors are designed to support up to 16 Gbps signal speeds and are backward compatible with SFP.
5. Available with heat sink and light pipe options for visual verification of operability and the ability to dissipate heat then allow for increased performance and longer
transceiver lifecycle
6. Pair with 20pin SMT Connector,Compatible with SFP+ Optical Transceiver, supports applications up to 16 Gb/s
7. Uses enhanced 20-position connector that is backward-compatible with SFP connectors

6. GLGNET SFP+ Cage Application

  • Storage, servers, routers, switches and hubs
  • Network Interface Cards (NICs)
  • Other telecommunications equipment

Applications by Protocol

  • 10 Gigabit Ethernet (IEEE802.3ae)
  • Fibre Channel: 2G, 4G, 8G and 16G
  • Fibre Channel over Ethernet (FCoE)

7. GLGNET Advantage

  • 20 years experiences in Variety Connectors
  • Effective Cost, fast Lead time,Professional Sales and FAE
  • 1500+ Employees,100+ R&D Engineers, 150+ QA engineers
  • 35000 square meters Factory
  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, Delta, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • We have our Own Tooling center, design and produce metal tooling and plastic injection tooling by ourselves
  • We have our own Stamping workshop, plastic injection workshop, automatic assembly working etc.

8. 47006-11M321 2X1 Stacked SFP+ Cage Connector with Inner Outer Light Pipe Mechnical Drawing

2X1 Stacked SFP+ Cage Integrated 20PIN Connector with INNER OUTER Light Pipe
