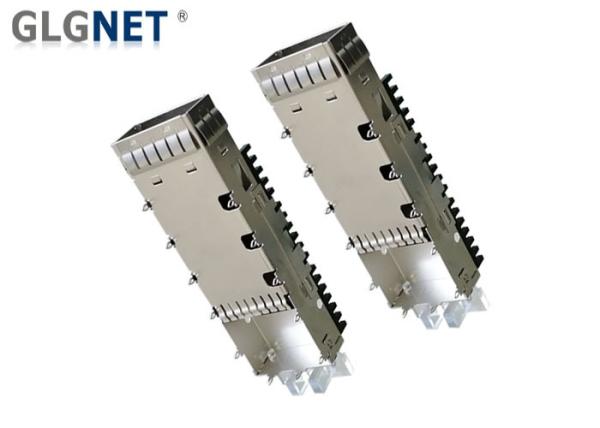

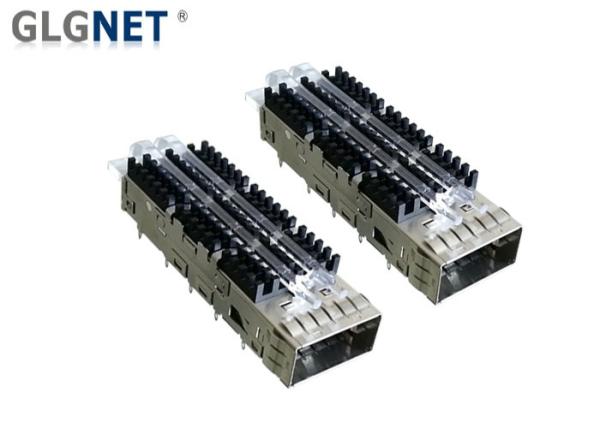

56G Ethernet Single Port QSFP28 Cage With Heat Sink Light Pipe EMI Tabs

1. GLGNET QSFP Cage ( 48001-00N011 ) Structure:

Product Name QSFP Cage Single Port QSFP14 Cage with Heat Sink Light Pipes and EMI Tabs
QSFP Cage Length 65.8 mm
QSFP Cage Width 19.46 mm
QSFP Cage Height 13.7 mm
QSFP Cage Press Fit Pin Length 2.05 mm
QSFP Cage Single Port Width 18.75 mm
QSFP Cage Single Port Height 8.95 mm
Appearance Stampled and Formed Metal Cage, with heat dissipation hole
Light Pipes With, Let user know the link status
Heat Sink With, ensure better heat dissipation
Monut Type Press Fit Mount Type
Cage Materials Copper Alloy
EMI Finger Spring With, provide better EMI protection
EMI Gasket Without

2. GLGNET QSFP Cage ( 48001-00N011 ) Features

  • One-piece, Copper Alloy construction

  • Mates with QSFP14 transceivers

  • Available with single or multi-port (panel mount) cages

  • Convenient kit with QSFP connector / Interface and cage

  • Low emission design via fold-back spring fingers – no openings for radiation to pass through

  • Host board holes not damaged when cage is removed

  • Connectors and cage available

  • Press-fit or through-hole solder leads on cages

  • Available individually or as a kit (SFPK Series)

  • Enhanced transceiver kick-out springs

  • 3D foot design for improved press-fit retention and contact to host board holes

  • Simple and fast installation / removal

  • Heat transfer windows on all QSFP cage surfaces

  • Supports MSA compliant host board layouts and transceiver designs

This is not a definitive list of applications for this product. It represents some of the more common uses.

3. GLGNET QSFP Cage ( 48001-00N011 ) Applications:

By Structure QSFP Female Connector
QSFPTransceiver ( with Fiber Cable )
By Function Servers
Storages
Switches
Routers
By Protocol Telecommunications
Data/Communications
Networking
Fibre Channel and Gigabit Ethernet


4. Application Example

QSFP14 Cage Combined with QSFP14 Connector mates with QSFP Optical Transceiver used for High speed Fiber Router

56G Ethernet QSFP+ Cage QSFP28 Connector With Heat Sink Light Pipe EMI Tabs

5. GLGNET QSFP Cage ( 48001-00N011 ) Materials

Appearance one piece Stampled and Formed Metal Cage, with heat dissipation holes, additional heat sink, EMI Tabs and Light Pipes
Cage 0.25 mm thickness copper alloy
EMI Tabs Copper Alloy
Heat Sink Aluminum , with black Oxide Treatment On Surface
Light Pipes Polycarbonate Color Clear
CLIP Stainless steel

6. GLGNET Series SFP Cage Products

By Protocol SFP Series SFP Cages
SFP Plus Cages
SFP28 Series SFP28 Cages
QSFP Series QSFP Plus Cages
QSFP14 Cage
QSFP28 Cages
Female Connectors SFP Female Connectors
SFP Plus Female Connectors
QSFP14 Female Connectors
By Structure SFP Series

1 x 2, 1 x 4, 1 x 6;

2 x 1, 2 x 2, 2 x 4, 2 x 5, 2 x 6, 2 x 8
SFP Plus Series

1 x 2, 1 x 4, 1 x 6;

2 x 1, 2 x 2, 2 x 4, 2 x 6, 2 x 8
SFP28 Series 1 x 1, 1 x 4
QSFP Plus Series 1 x 1
QSFP14 Series 1 x 2
QSFP28 Series 1 x 1
SFP Female Connectors 20pin
SFP Plus Female Connectors 20pin
QSFP14 Female Connectors 38pin

7. GLGNET Customization Service

  • Support to make Integrated QSFP Connector with EMI Cages, isolated SFP Connector, or Isolated SFP Cages
  • The QSFP Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
  • QSFP Cage can be with different heat dissipation Hole
  • QSFP Cage can be with Light pipes or without, Built in or on Cage top or buttom
  • QSFP Cage can be with Heat Sink or without, and the Heat sink with different Style
  • QSFP Cage can be with EMI Finger Spring or elastomeric Gasket
  • Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized

8. GLGNET Advantages:

  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Variety Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops​
  • Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification

9. GLGNET QSFP Cage ( 48001-00N011 ) Mechnical Drawing

You can know the Demensions Details from Following Drawing
