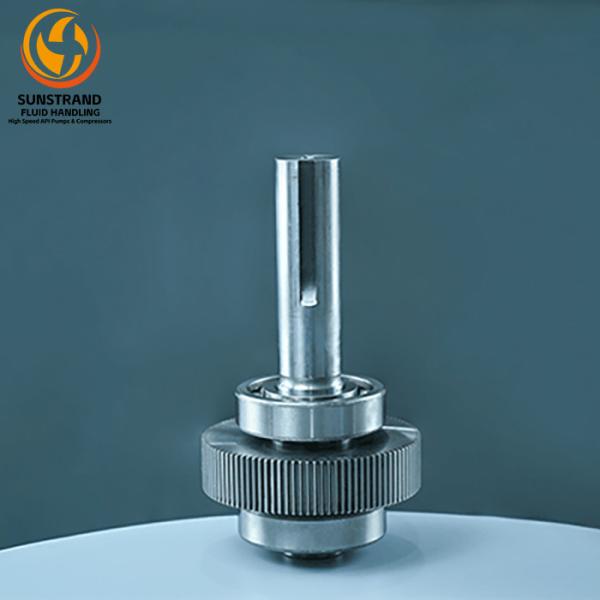

LMV 322 High Speed Centrifugal Pumps Shaft OH6 Integrally Geared Pump Spare Parts
LMV 322 High Speed Centrifugal Pumps Shaft OH6 Integrally Geared Pump Spare Parts
Specifications
Brand Name :
Sunstrand
Model Number :
LMV322-Low-speed-shaft
Certification :
IOS9001/IOS9002/CUTR
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set/month
Delivery Time :
60 days
Packaging Details :
Wooden Case
Max Flow :
52M³/H
Max Head :
915 m
Max Suction Pressure :
4.0MPa
Max Motor Power :
37KW
Operating Temperature :
-130~+340°C
RPM :
Up To 4900-14179
Max Operating Pressure :
10.0MPa
Gearbox Construction Form :
First-Level Growth Speed
Description
LMV 322 High Speed Centrifugal Pumps Shaft OH6 Integrally Geared Pump Spare Parts
Product Overview

LMV322 High-Speed Centrifugal Pumps are single-stage, single-suction, cantilever, vertical high-speed pumps, mainly composed of motor, speed increaser, pump body, lubrication system and base. According to different working conditions and configuration requirements, the speed increment box is divided into primary speed increment and secondary speed increment. The import and export flanges of this series of high-speed pumps are symmetrically arranged on the same horizontal centerline, with compact and beautiful appearance and small footprint.

  • High-precision, highly reliable growth box drive system
  • Plain bearings with high load and stability
  • High-efficiency, high-performance hydraulic component design
  • Flexible and versatile sealing styles
Key Specifications
  • Product Name: LMV322 High-Speed Centrifugal Pumps OH6 Integrally Geared Pump Spare Parts
  • Speed: Up To 4900-14179 RPM
  • Head: Up To 1920 M
  • Motor Power: Up To 132 KW
  • Material: Cast Iron, Stainless Steel, Duplex Steel
  • Pressure Range: Up To 20 Bar
Technical Parameters
Parameter Value
Max. Flow (m³/h) 150
Max. Head (m) 1920
Max. Suction Pressure (MPa) 4.0
Max. Working Pressure (MPa) 10
Max. Motor Power (kW) 132
Temperature Range (°C) -130 to +340
Speed Range (rpm) 4950-23700
Gearbox Type Single Stage
Performance Section View
Standards API 610
API Plans 11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J
Application Feed pumps, Booster pumps, Bottoms pumps, Wash water pumps, Condensate pumps
Applications

The vertical configuration of the integrally geared line of Sundyne pumps is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.

This pump is ideal for applications that require a high flow rate, high pressure, and high head. Its high-speed operation makes it suitable for use in high-speed centrifugal compressors and pumps, and its durable construction ensures that it can handle a variety of fluids and environments.

Support and Services

The LMV322 High-Speed Vertical Centrifugal Pump is a reliable and efficient solution for a variety of industrial applications. Our product technical support and services include:

  • Expert consultation and technical assistance to help you select the right pump for your application
  • Installation and start-up services to ensure proper operation and performance
  • Regular maintenance and repair services to keep your pump running smoothly and extend its lifespan
  • Training and education services to help you and your team understand the proper operation and maintenance procedures
  • 24/7 emergency support to address any unexpected issues or downtime
Performance and Cutaway Views
LMV 322 High Speed Centrifugal Pumps Shaft OH6 Integrally Geared Pump Spare Parts LMV 322 High Speed Centrifugal Pumps Shaft OH6 Integrally Geared Pump Spare Parts LMV 322 High Speed Centrifugal Pumps Shaft OH6 Integrally Geared Pump Spare Parts
Packing and Shipping

Product Packaging:

  • One LMV322 High-Speed Vertical Centrifugal Pump
  • User manual and installation instructions
  • Safety instructions and warnings

Shipping Information:

  • Ships within 6 months
  • Shipping weight: 75 kgs
  • Shipping dimensions: 120*80*100 cm (dependent on each pump)
  • Shipping carrier: UPS, FedEx, or Cargo
  • Shipping options: Standard or expedited
Frequently Asked Questions
What is the maximum flow rate of the LMV322 High-Speed Vertical Centrifugal Pump?
The LMV322 High-Speed Vertical Centrifugal Pump has a maximum flow rate of 52 m³/h.
What is the maximum head of the LMV322 High-Speed Vertical Centrifugal Pump?
The LMV322 High-Speed Vertical Centrifugal Pump has a maximum head of 915 m.
What is the maximum operating temperature of the LMV322 High-Speed Vertical Centrifugal Pump?
The LMV322 High-Speed Vertical Centrifugal Pump has a maximum operating temperature range of -130 to +340°C.
What materials are used in the construction of the LMV322 High-Speed Vertical Centrifugal Pump?
The casing and impeller of the LMV322 High-Speed Vertical Centrifugal Pump are made of aluminium alloy and 316 stainless steel.
What is the Max Motor Power supply requirement for the LMV322 High-Speed Vertical Centrifugal Pump?
The LMV322 High-Speed Vertical Centrifugal Pump requires 37 kW.
