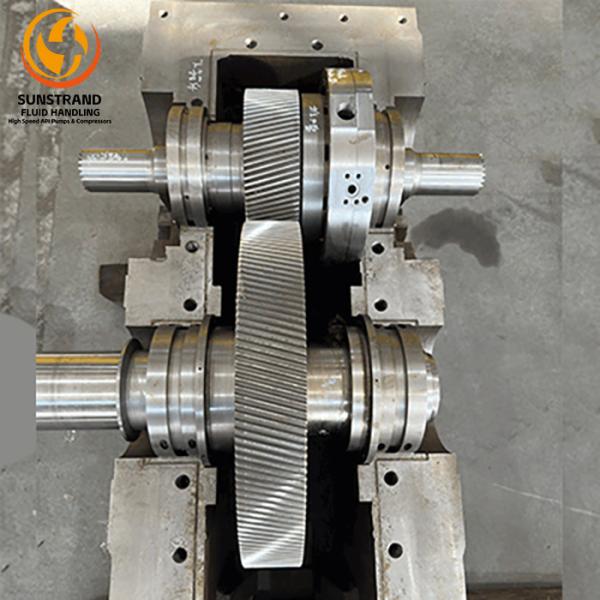

Sundyne Pump Gear Housing HMP 7000 Spare Parts Gear Casing
Sundyne Pump Gear Housing HMP 7000 Spare Parts Gear Casing
Specifications
Brand Name :
Sunstrand
Model Number :
HMP7000- Pump-casing
Certification :
IOS9001/IOS9002/CUTR
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set/month
Delivery Time :
60 days
Packaging Details :
Wooden Case
Max Flow :
410M³/H
Max Head :
4420 m
Max Suction Pressure :
10MPa
Max Motor Power :
3000KW
Operating Temperature :
-130~+340°C
RPM :
Up To 5500-22000
Max Operating Pressure :
45.0MPa
Gearbox Construction Form :
Single Stage
Description
Sundyne Pump Gear Housing HMP 7000 Spare Parts Gear Casing
Product Overview

HMP7000 series are integral gear driven multi-stage heavy high speed centrifugal pumps, providing small flow and high head applications. These pumps can be provided with three pump heads, which can be operated in tandem or in parallel according to the demand of flow and head range.

Two-stage or three-stage cantilever type integral gear centrifugal High Speed pump, in line with API610-ISO13709 standard.

Key Features
  • Centrifugal design - with characteristics of smooth operation, wide performance range and pulseless transmission
  • Space Saving - 25% of competitive multistage pump size
  • No wear ring - no need to adjust impeller clearance, simple impeller installation
  • Compact design - lightweight components with small footprint
  • Open impeller blades and gaps - suitable for applications with particles
  • Module design - improved reliability, easy maintenance, fewer parts, reduced costs
  • Complete unit sets - customized complete unit design according to customer requirements
  • Fluid mechanics selection - capable of providing future transformation needs
Product Specifications
  • Product Name: HMP7000 Overhung Impeller Integrally Geared Multi-Stage Pump
  • Speed: Up To 5500-22000 RPM
  • Head: Up To 4420 M
  • Motor Power: Up To 3000 KW
  • Material: Cast Iron, Stainless Steel, Duplex Steel, Aluminium Alloy
  • Pressure Range: Up To 45 Bar
Technical Parameters
Parameter Value
Max. Flow (m³/h) 410
Max. Head (m) 4420
Max. Suction Pressure (MPa) 10
Max. Working Pressure (MPa) 45
Max. Motor Power (kW) 3000
Temperature Range (°C) -130 to +340
Speed Range (rpm) 5500-22000
Gearbox Type Single Stage
Standards API 610
API Plans 11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J
Applications Feed pumps, Booster pumps, Bottoms pumps, Wash water pumps, Condensate pumps
Applications

The vertical configuration of the integrally geared line of Sundyne pumps is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.

This pump is ideal for applications that require high flow rate, high pressure, and high head. Its high-speed operation makes it suitable for use in high-speed centrifugal compressors and pumps, and its durable construction ensures it can handle various fluids and environments.

Support and Services

The HMP7000 High-Speed Vertical Centrifugal Pump is a reliable and efficient solution for various industrial applications. Our product technical support and services include:

  • Expert consultation and technical assistance for pump selection
  • Installation and start-up services for proper operation
  • Regular maintenance and repair services
  • Training and education services for operation and maintenance
  • 24/7 emergency support for unexpected issues
Performance and Cutaway
Sundyne Pump Gear Housing HMP 7000 Spare Parts Gear Casing Sundyne Pump Gear Housing HMP 7000 Spare Parts Gear Casing Sundyne Pump Gear Housing HMP 7000 Spare Parts Gear Casing Sundyne Pump Gear Housing HMP 7000 Spare Parts Gear Casing
Packing and Shipping

Product Packaging:

  • One Pump-casing-7000
  • User manual and installation instructions
  • Safety instructions and warnings

Shipping Information:

  • Ships within 2 months
  • Shipping weight: 15 kgs
  • Shipping dimensions: 120*80*100 cm (varies by pump)
  • Shipping carrier: UPS, FedEx, or Cargo
  • Shipping options: Standard or expedited
Frequently Asked Questions
What is the maximum flow rate of the HMP7000 Overhung Impeller Integrally Geared Multi-Stage Pump?
The HMP7000 Pump has a maximum flow rate of 410 m³/h.
What is the maximum head of the HMP7000 Heavy High-Speed Centrifugal Pump?
The HMP7000 Pump has a maximum head of 4420 m.
What is the maximum operating temperature of the HMP7000 Overhung Impeller Integrally Geared Multi-Stage Pump?
The HMP7000 Pump has a maximum operating temperature range of -130 to +340°C.
What materials are used in the construction of the HMP7000 Overhung Impeller Integrally Geared Multi-Stage Pump?
The casing and impeller of the HMP7000 Pump are made of aluminium alloy and 316 stainless steel.
What is the Max Motor Power supply requirement for the HMP7000 Overhung Impeller Integrally Geared Multi-Stage Pump?
The HMP7000 Pump requires 3000 kW.
