Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling
Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling
Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling
Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling
Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling
Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling
Specifications
Expansion Slots :
Default 4 PCIe 5.0 x16 LP slots
Power Supply :
2x 5250W Redundant Titanium Level (96%) power supplies
Payment Terms :
T/T
Model Number :
SYS-221GE-TNHT-LCC
Processors :
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Brand Name :
Supermicro
Supply Ability :
50pcs per week
MOQ :
1/set
Delivery Time :
2-3 work days
Drive Bays Configuration :
Total 4 bays
Max Memory :
Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Weight :
Gross Weight: 86.5 lbs (39.2 kg)
Max GPU Count :
4 onboard GPUs
Supported GPU :
NVIDIA SXM: HGX H100 4-GPU (80GB), HGX H200 4-GPU (141GB)
Form Factor :
2U Rackmount
Place of Origin :
China
Available Color :
Silver
Description
Supermicro GPU Server SYS-221GE-TNHT-LCC
High-Performance 2U Liquid-Cooled GPU Server
Dual processor Intel 2U liquid-cooled system supporting NVIDIA HGX™ H100 4-GPU or H200 4-GPU configurations for demanding computational workloads.
Key Applications
High Performance Computing, AI/Deep Learning Training, Industrial Automation, Retail, Healthcare, Conversational AI, Business Intelligence & Analytics,Climate and Weather Modeling, Finance & Economics
Key Features
  • Highest GPU communication using NVIDIA® NVLINK™ technology
  • High density 2U system with NVIDIA® HGX™ H100 4-GPU/H200 4-GPU and 4x PCIe Gen 5 slots
  • 5th/4th Gen Intel® Xeon® Scalable processor support
  • 32 DIMM slots, up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
  • Up to 256 GB memory with speeds up to 5600 MT/s (1DPC) or 4400 MT/s (2DPC)
  • 4 PCIe Gen 5.0 x16 LP expansion slots
  • Flexible networking options
  • 2 M.2 NVMe for boot drive only
  • 4x 2.5" Hot-swap NVMe/SATA3 drive bays
  • Direct-To-Chip Liquid Cooling solution
  • 4 heavy duty fans with optimal fan speed control
  • 2x 5250W (1+1) Redundant Titanium Level Power Supplies
Technical Specifications
Form Factor Supermicro SYS-221GE-TNHT-LCC 2U GPU Server
Processors Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 56C/112T; Up to 112.5MB Cache per CPU
GPU Max GPU Count: 4 onboard GPUs
Supported GPU: NVIDIA SXM: HGX H100 4-GPU (80GB), HGX H200 4-GPU (141GB)
CPU-GPU Interconnect: PCIe 5.0 x16
GPU-GPU Interconnect: NVIDIA® NVLink®
System Memory Slot Count: 32 DIMM slots/16 Channels
Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Drive Bays Configuration Default: Total 4 bays
4 front hot-swap 2.5" NVMe/SATA drive bay
Expansion Slots PCI-Express Configuration: Default 4 PCIe 5.0 x16 LP slots
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280)
Power Supply 2x 5250W Redundant Titanium Level (96%) power supplies
Dimensions and Weight Weight: Gross Weight: 86.5 lbs (39.2 kg)
Net Weight: 67.5 lbs (30.6 kg)
Available Color: Silver Body

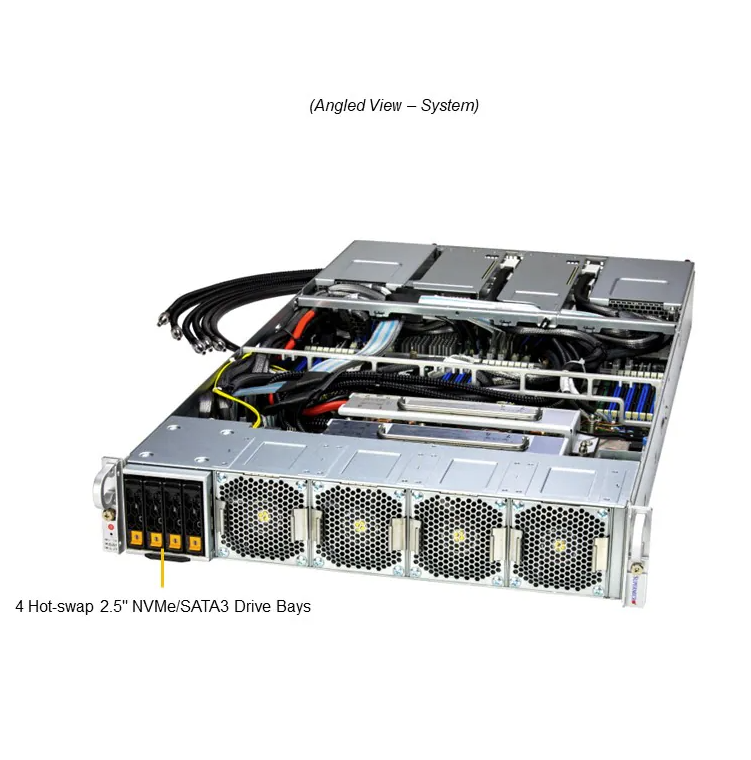

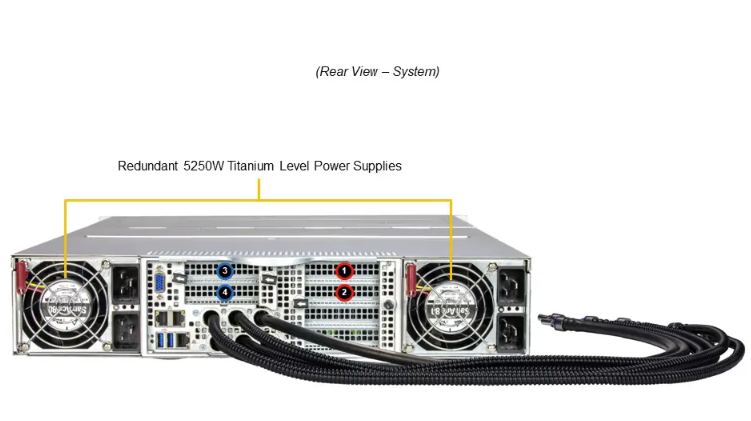

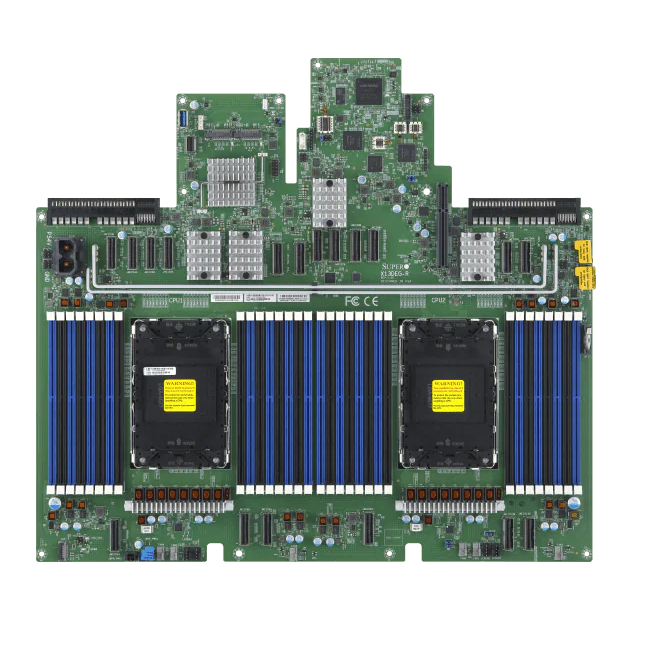

Product Images
Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling
