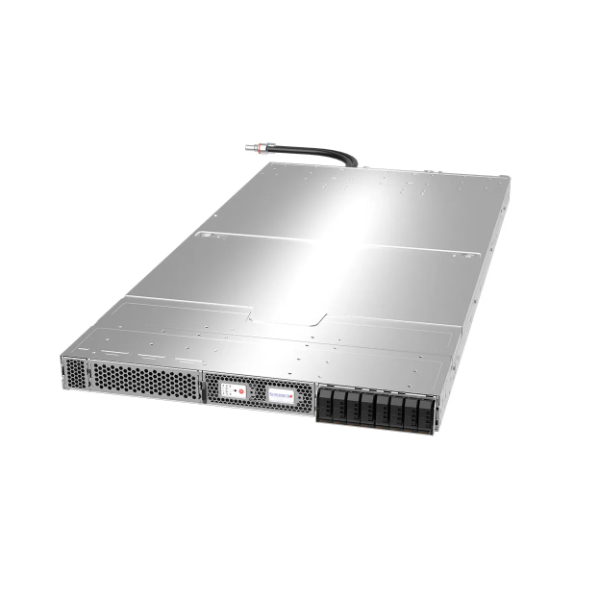

Supermicro GPU Server ARS-111GL-NHR-LCC with NVIDIA H100 Tensor Core GPU 480GB ECC LPDDR5X Memory and Liquid Cooling System in 1U Rackmount
Supermicro GPU Server ARS-111GL-NHR-LCC with NVIDIA H100 Tensor Core GPU 480GB ECC LPDDR5X Memory and Liquid Cooling System in 1U Rackmount
Supermicro GPU Server ARS-111GL-NHR-LCC with NVIDIA H100 Tensor Core GPU 480GB ECC LPDDR5X Memory and Liquid Cooling System in 1U Rackmount
Supermicro GPU Server ARS-111GL-NHR-LCC with NVIDIA H100 Tensor Core GPU 480GB ECC LPDDR5X Memory and Liquid Cooling System in 1U Rackmount
Supermicro GPU Server ARS-111GL-NHR-LCC with NVIDIA H100 Tensor Core GPU 480GB ECC LPDDR5X Memory and Liquid Cooling System in 1U Rackmount
Supermicro GPU Server ARS-111GL-NHR-LCC with NVIDIA H100 Tensor Core GPU 480GB ECC LPDDR5X Memory and Liquid Cooling System in 1U Rackmount
Specifications
Brand Name :
Supermicro
Model Number :
ARS-111GL-NHR-LCC
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
1U Rackmount
Processor :
NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
Max GPU Count :
1 on board GPU
Supported GPU :
NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip
Max Memory :
Up to 480GB ECC LPDDR5X
Drive Bays Configuration :
Total 8 bays
Expansion Slots :
Default 2 PCIe 5.0 x16 FHFL slots
On-Board Devices :
System on Chip
Power Supply :
2x 2000W Redundant Titanium Level (96%) power supplies
Weight :
Gross Weight: 65.5 lbs (29.7 kg)
Description

Key Applications

High Performance Computing, AI/Deep Learning Training and Inference, Large

Language Model (LLM) and Generative AI,

Key Features

High density 1U GPU system with Integrated NVIDIA® H100 GPU and liquid

cooling;

NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU);

NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect

between CPU and GPU at 900GB/s;

Up to 576GB of coherent memory per node including 480GB LPDDR5X and

96GB of HBM3 for LLM applications;

2x PCIe 5.0 x16 slots supporting NVIDIA BlueField®-3 or ConnectX®-7;

7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control;

This system supports two E1.S drives directly from the processor only.;


Product Details:

Form Factor

1U Rackmount

Enclosure: 440 x 44 x 940mm (17.33" x 1.75" x 37")

Package: 1219 x 241 x 711mm (48" x 9.5" x 28")

Processor

NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip

GPU

Max GPU Count: 1 onboard GPU

Supported GPU: NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip

CPU-GPU Interconnect: NVIDIA NVLink™-C2C

System Memory

Slot Count: Onboard Memory

Max Memory: Up to 480GB ECC LPDDR5X

Additional GPU Memory: Up to 96GB ECC HBM3

Drive Bays Configuration

Default: Total 8 bays

8 front fixed E1.S NVMe drive bays

M.2: 2 M.2 NVMe slots (M-key)

Expansion Slots

Default

2 PCIe 5.0 x16 FHFL slots

On-Board Devices

System on Chip

System Cooling

Fans: Up to 7 Removable heavy-duty 4cm Fan(s)

Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)

Power Supply

2x 2000W Redundant Titanium Level (96%) power supplies

Dimensions and Weight

Weight: Gross Weight: 65.5 lbs (29.7 kg)

Net Weight: 48.5 lbs (22 kg)

Available Color: Silver
