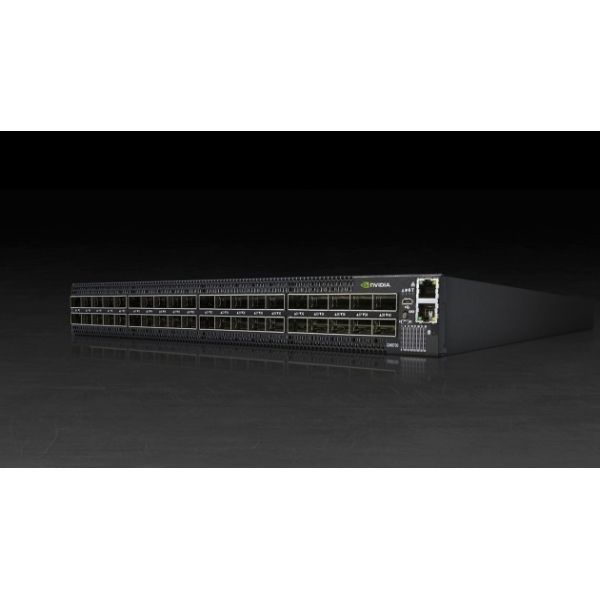

NVIDIA MQM8700-HS2R 40 QSFP56 ports 2 Power Supplies (AC) C2P airflow
NVIDIA MQM8700-HS2R 40 QSFP56 ports 2 Power Supplies (AC) C2P airflow
NVIDIA MQM8700-HS2R 40 QSFP56 ports 2 Power Supplies (AC) C2P airflow
NVIDIA MQM8700-HS2R 40 QSFP56 ports 2 Power Supplies (AC) C2P airflow
Specifications
Brand Name :
NVIDIA
Model Number :
MQM8700-HS2R
Place of Origin :
Beijing, China
MOQ :
1/set
Supply Ability :
50pcs per week
Packaging Details :
New Original Packing
Payment Terms :
T/T
Delivery Time :
2-3 work days
Performance :
200Gb/s per port
Switch radix :
40 non-blocking ports with aggregate data throughput up to 16Tb/s
Connectors and cabling :
Quad small form-factor pluggable (QSFP56) connectors; passive or active copper or active fiber cable; optical module
CPU :
Broadwell ComEx D-1508 2.2GHZ
System memory :
Single 8GB
Storage :
MLNX-OS
System weight :
1 PSU: 11.4kg 2 PSUs: 12.48kg
System dimensions :
Height: 1.7 in (43.6 mm) Width: 17 in (433.2 mm) Depth: 23.2 in (590.6 mm)
Description

Product Description


Mellanox Quantum™ HDR InfiniBand Switch, 40 QSFP56 ports, 2 Power Supplies (AC), x86 dual core, standard depth, C2P airflow, Rail Kit

Faster servers combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. As servers are deployed with next-generation processors, HPC, AI,and hyperscale cloud environments will need every last bit of network bandwidth.NVIDIA Quantum QM8700 and QM8790 200 gigabits per second (Gb/s) InfiniBand fixed-configuration switches provide up to forty 200Gb/s ports with 16 terabits per second (Tb/s) of non-blocking bandwidth or eighty 100Gb/s ports with full bidirectional bandwidth per port with extremely low latency—an ideal choice for building flexible and scalable data centers at any size.



Performance

200Gb/s per port

Switch radix

40 non-blocking ports with aggregate data throughput up to 16Tb/s

Connectors and cabling

Quad small form-factor pluggable (QSFP56) connectors; passive or active copper or active fiber cable; optical module

Power supply

1+1 redundant and hot- swappable power Input range: 100-127VAC,200-240VAC 80 Gold+ and ENERGY STAR certified power supplies

Management ports

1x RJ45

1x console port: RS232

1x micro USB

CPU

Broadwell ComEx D-1508

2.2GHZ

System memory

Single 8GB

Software

MLNX-OS

System weight

1 PSU: 11.4kg

2 PSUs: 12.48kg

System dimensions

Height: 1.7 in (43.6 mm)

Width: 17 in (433.2 mm)

Depth: 23.2 in (590.6 mm)

Mount rack

1U rack mount

Operating Conditions

Temperature:

> Operating: 0ºC-40ºC

> Non-operating: -40ºC-70ºC

Humidity:

> Operating: 10%-85% non-

condensing

> Non-operating: 10%-90%

non-condensing

Altitude: up to 3,200m
