Cisco Catalyst 9300X C9300L-48T-4X Switch with 48 Ports Data and 4x 10G/1G Fixed Uplinks for 176 Gbps Switching Capacity
Cisco Catalyst 9300X C9300L-48T-4X Switch with 48 Ports Data and 4x 10G/1G Fixed Uplinks for 176 Gbps Switching Capacity
Cisco Catalyst 9300X C9300L-48T-4X Switch with 48 Ports Data and 4x 10G/1G Fixed Uplinks for 176 Gbps Switching Capacity
Cisco Catalyst 9300X C9300L-48T-4X Switch with 48 Ports Data and 4x 10G/1G Fixed Uplinks for 176 Gbps Switching Capacity
Cisco Catalyst 9300X C9300L-48T-4X Switch with 48 Ports Data and 4x 10G/1G Fixed Uplinks for 176 Gbps Switching Capacity
Cisco Catalyst 9300X C9300L-48T-4X Switch with 48 Ports Data and 4x 10G/1G Fixed Uplinks for 176 Gbps Switching Capacity
Specifications
Brand Name :
Cisco
Model Number :
C9300L-48T-4X
Certification :
ce
Place of Origin :
China
MOQ :
2 pieces
Payment Terms :
L/C,T/T
Delivery Time :
3-6days
Packaging Details :
BOX
Total 10/100/1000, Multigigabit copper or SFP fiber :
48 ports data
Uplink configuration :
4x 10G/1G fixed uplinks
Default AC power supply :
350W AC
Switching capacity :
176 Gbps
Switching capacity with stacking :
496 Gbps
Forwarding rate :
130.95 Mpps
Forwarding rate with stacking :
369.05 Mpps
Dimensions (H x W x D) in inches（Chassis only ） :
1.73 X 17.5 X 16.1
Description
Cisco Catalyst 9300X C9300L-48T-4X Switch
Cisco Catalyst™ 9300 Series Switches are Cisco's premier stackable enterprise access switching platform. As part of the Catalyst 9000 family, these switches are engineered to transform your network infrastructure for today's hybrid environments, where workplaces are distributed, endpoints are diverse, and applications are hosted across multiple locations.
The Catalyst 9300 Series, including the Catalyst 9300X models, delivers continuous innovation to help you reimagine connections, strengthen security, and redefine the user experience for your hybrid workforce. These switches offer flexible management options—on-premises, virtual, or cloud-based—to suit your operational preferences.
Technical Specifications
Specification Details
Total 10/100/1000, Multigigabit copper or SFP fiber 48 ports data
Uplink configuration 4x 10G/1G fixed uplinks
Default AC power supply 350W AC
Switching capacity 176 Gbps
Switching capacity with stacking 496 Gbps
Forwarding rate 130.95 Mpps
Forwarding rate with stacking 369.05 Mpps
Dimensions (H x W x D) in inches (Chassis only) 1.73 x 17.5 x 16.1
Dimensions (H x W x D) in inches (With default power supply) 1.73 x 17.5 x 17.7
Dimensions (H x W x D) in inches (With 1100W power supply) 1.73 x 17.5 x 19.2
Product Images

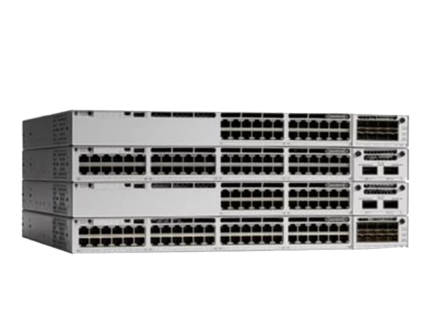

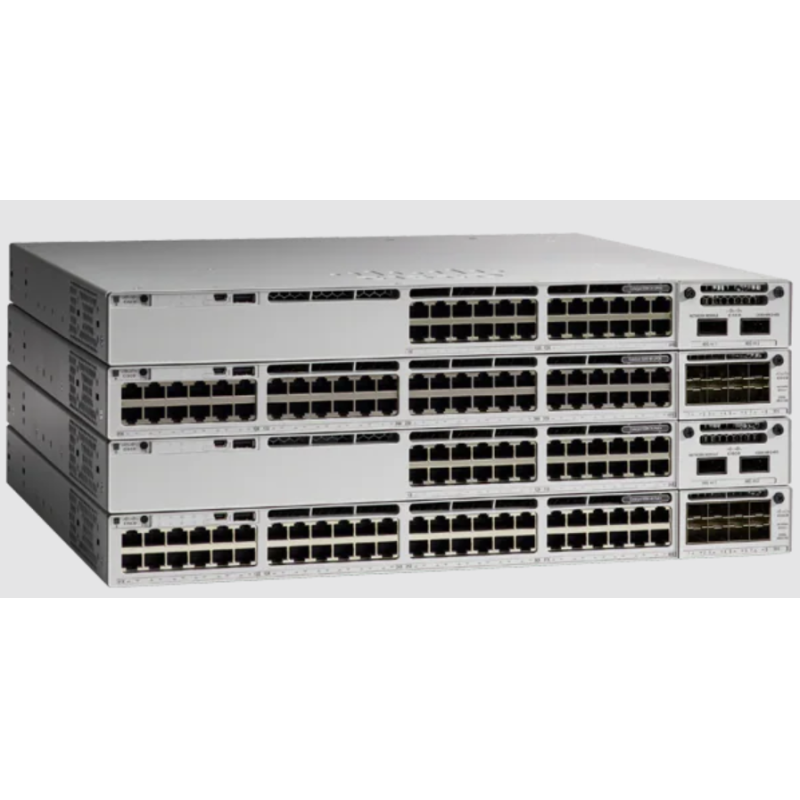

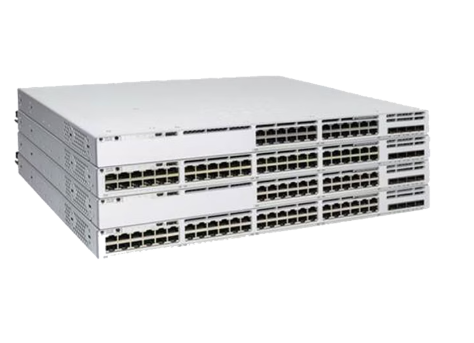

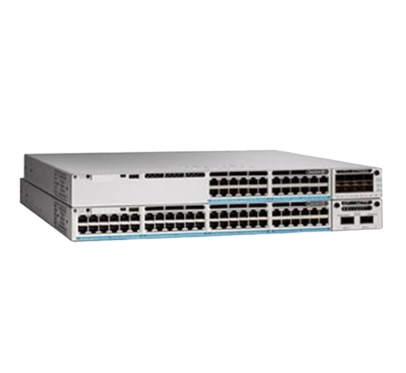

Cisco Catalyst 9300X C9300L-48T-4X Switch with 48 Ports Data and 4x 10G/1G Fixed Uplinks for 176 Gbps Switching Capacity
