Specifications
Brand Name :
Supermicro
Model Number :
SYS-121C-TN2R
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
1U Rackmount
Processor :
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
GPU :
Up to 2 single-width GPUs
System Memory :
Slot Count: 16 DIMM slots
Expansion Slots :
Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays Configuration :
Default: Total 8 bays
Power Supply :
2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Gross Weight :
40 lbs (18.8 kg)
Net Weight :
25 lbs (8.7 kg)
Available Color :
Black front & silver body
Description

Key Applications

Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud

Computing, Compact Server, DNS & Gateway Servers, Firewall Application,

CDN, Edge Nodes,

Key Features

Dual sockets E (LGA-4677) 5th and 4th Gen Intel® Xeon® Scalable

processors;

16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM;

2 PCIe 5.0 x16 FHHL; 2 PCIe 5.0 x4 NVMe M.2;

Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN;

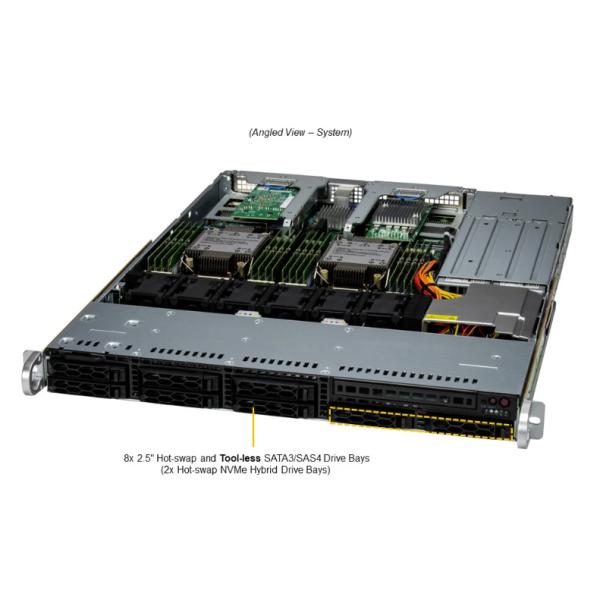

8x 2.5" hot-swap SATA/SAS4 w/ 2x hybrid NVME drive bays;

1 VGA, 1 COM, 2 USB 3.0 (rear);


Form Factor

1U Rackmount

Enclosure: 437 x 43 x 597mm (17.2" x 1.7" x 23.5")

Package: 605 x 197 x 822mm (23.8" x 7.8" x 32.4")

Processor

Dual Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Up to 36C/72T; Up to 82.5MB Cache per CPU

GPU

Max GPU Count: Up to 2 single-width GPUs

Supported GPU: NVIDIA PCIe: L4, A2

Intel PCIe: Intel Data Center GPU Flex 140

System Memory

Slot Count: 16 DIMM slots

Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

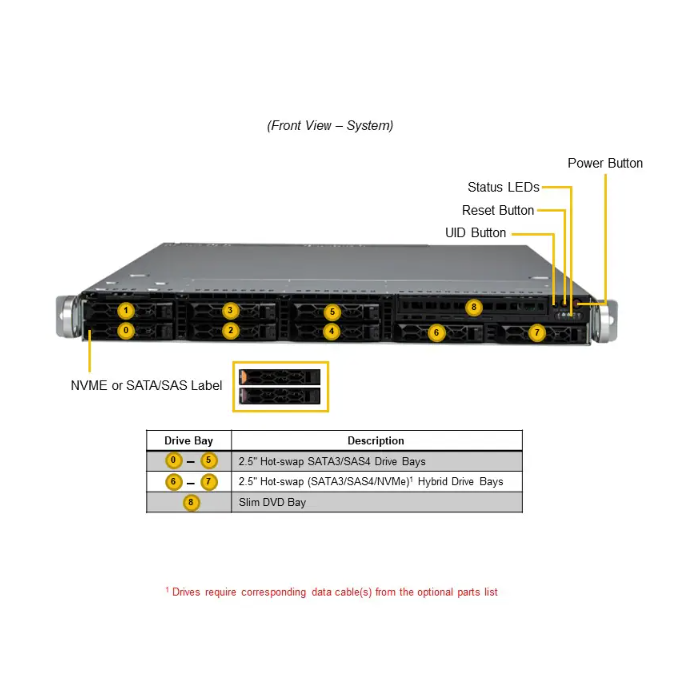

Drive Bays Configuration

Default: Total 8 bays

2 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

6 front hot-swap 2.5" SAS*/SATA* drive bays

(*NVMe/SAS/SATA support may require additional storage controller and/or cables)

M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID)

Peripheral Bays: 1 slim DVD bay (optional)

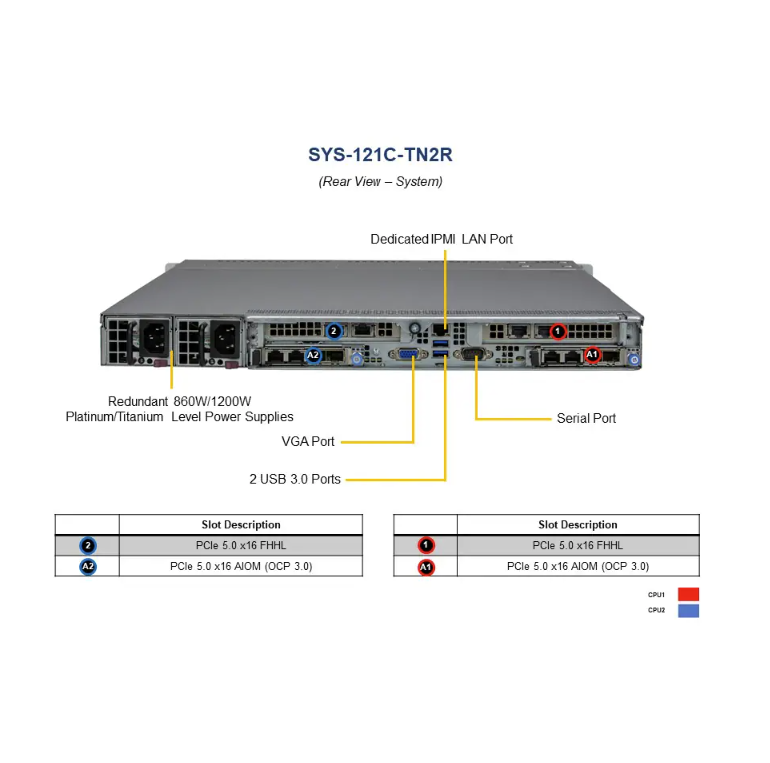

Expansion Slots

Default

2 PCIe 5.0 x16 FHHL slots

2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

On-Board Devices

SATA: SATA (6Gbps) ; RAID 0/1/5/10 support

NVMe: NVMe; RAID 0/1/5/10 support(VROC HW key required)

Chipset: Intel® C741

Network Connectivity: Via AIOM

Power Supply

2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Dimensions and Weight

Weight: Gross Weight: 40 lbs (18.1 kg)

Net Weight: 25 lbs (11.3 kg)

Available Color: Black front & silver body
